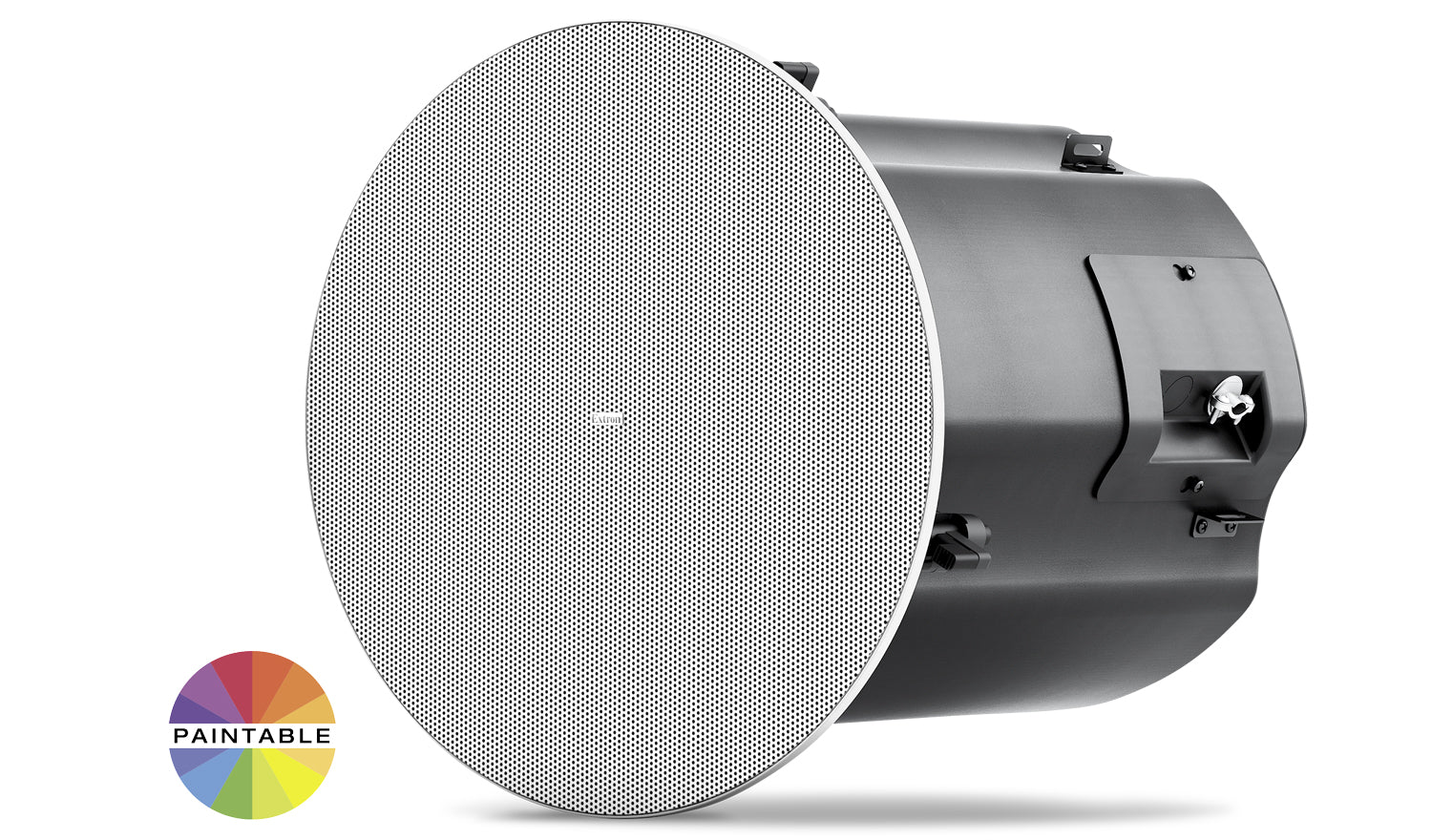

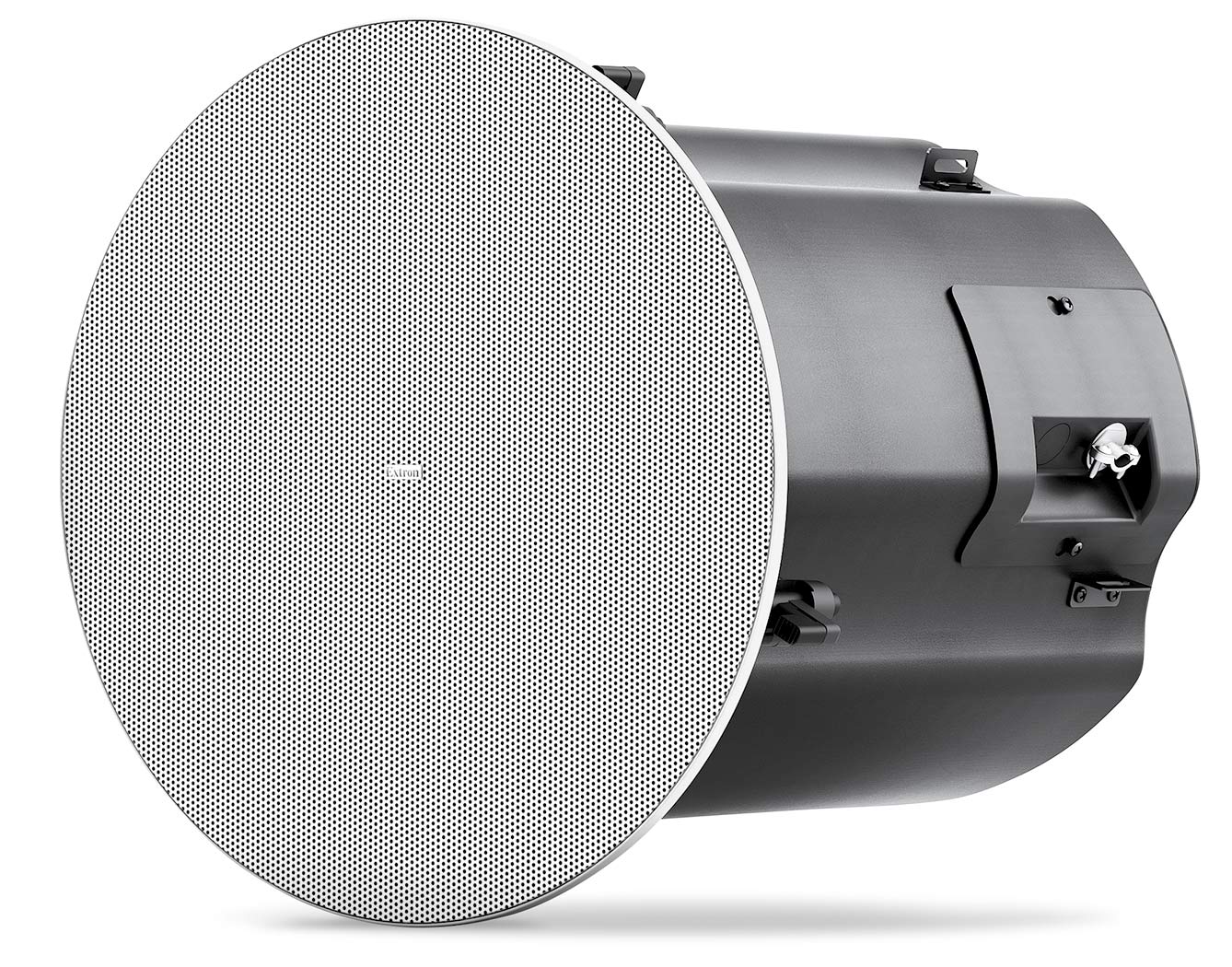

Extron SF 8CT SUB (part number 60-1941-03) — an 8 in in-ceiling subwoofer that adds low-frequency extension to a distributed SoundField speaker system.

Ceiling speakers built for voice and music playback typically roll off well above 100 Hz, leaving program audio thin on the bottom end. The SF 8CT SUB fills that gap from a single 8 in polypropylene driver in a steel-backed, UL 2043 plenum-rated enclosure, and its rotary switch selects 70V taps, 100V taps, or a straight 8 ohm connection so it drops into the same distributed loop as the ceiling and pendant speakers around it. A switch-selectable 120 Hz low-pass filter is enabled by default to keep the crossover clean.

Key Capabilities

45 Hz to 300 Hz frequency range (-10 dB, half space).
100 W rms pink noise / 200 W rms continuous program.
Rotary-selectable 70V taps (8-64 W), 100V taps (16-64 W), or direct 8 ohm.
180° conical coverage from a single 8 in polypropylene driver.
Switch-selectable 120 Hz, 6 dB/octave low-pass filter, on by default.
UL 2043 and UL 1480A listed steel back can for plenum installs.

Where It Is Used

Conference rooms, auditoriums and houses of worship already running Extron SF ceiling or pendant speakers on a 70V/100V loop, where program and music playback need low-end reinforcement without a floor-standing cabinet.

Specifications at a Glance

Enclosure: 14.46 in H x 12.74 in diameter, 12.59 in cutout
Input: (1) 5 mm captive screw connector, 4-pole, with loop-through
Nominal impedance: 8 ohms; sensitivity 90 dB SPL, 1 W / 1 m
Weight: 15.8 lbs
Warranty: 5 years parts and labor

Also referenced as Extron SF8CTSUB, SF-8CT-SUB, part number 60194103.

Specifications

Part Number: 60-1941-03

Manufacturer: Extron

Model: SF 8CT SUB

Condition: New

Speaker Type: In-ceiling subwoofer

Package: 1 speaker

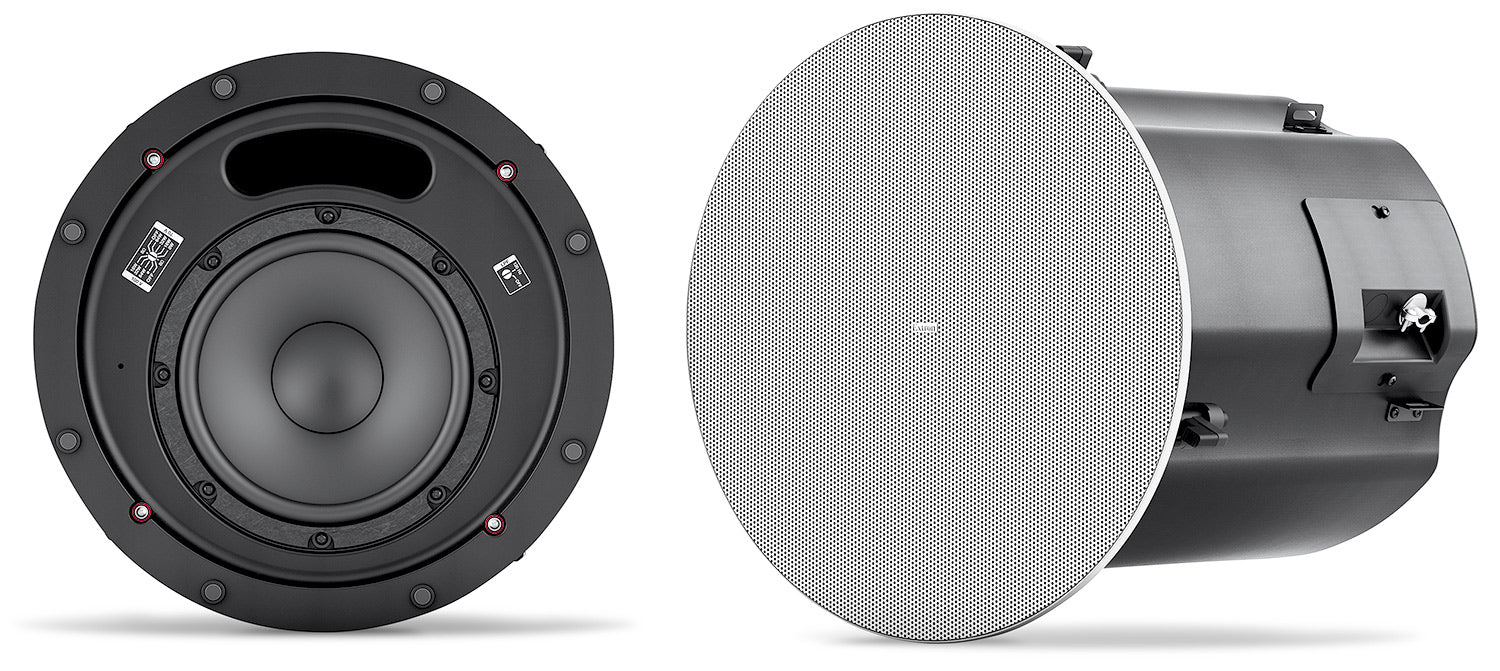

Driver: (1) 8" (203 mm) polypropylene cone, with moisture-resistant coating

Frequency Range: 45 Hz to 300 Hz, -10 dB, half space (per IEC 60268-5)

Power Capacity: 100 W (rms) continuous pink noise (per IEC 60268-5); 200 W (rms) continuous program

Rated Maximum Input Voltage (MIV): 25.1 V (78.9 W at 8 ohms) (per AES2-2012)

Maximum SPL: 108 dB, 1 m (based on maximum input voltage); 119 dB, 1 m (linear)

Nominal Sensitivity: 90 dB SPL, 1 W/1 m, half space

Nominal Impedance: 8 ohms

Low-Pass Filter: 120 Hz, 6 dB/octave rolloff (switch-selectable, enabled by default)

Nominal Coverage Angle: 180° conical coverage

Rotary Switch Taps: 70V: 64 W, 32 W, 16 W, 8 W, 8 ohms direct; 100V: null, 64 W, 32 W, 16 W, 8 ohms direct

Overload Protection: Full range power limiter with the 8 ohm direct input only, protecting the woofer and crossover

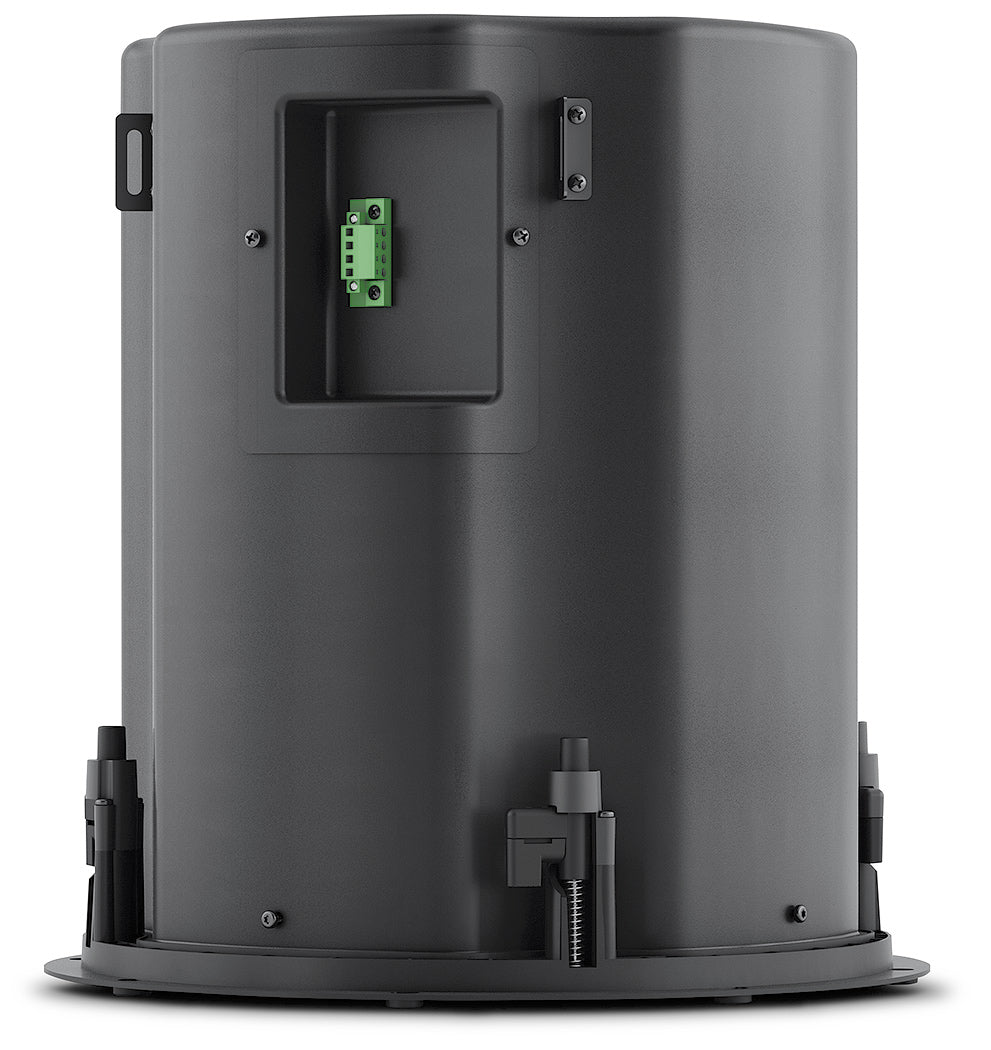

Input Connector: (1) 5 mm captive screw connector, 4-pole for one input and 1 loop-through

Included Accessories: Cutout template/paint shield, setup guide, mounting screws, 2 V-rails, 1 C-ring, 1 round grille, 1 cable clamp, 1 captive screw connector

Mounting: Ceiling-mountable with included hardware

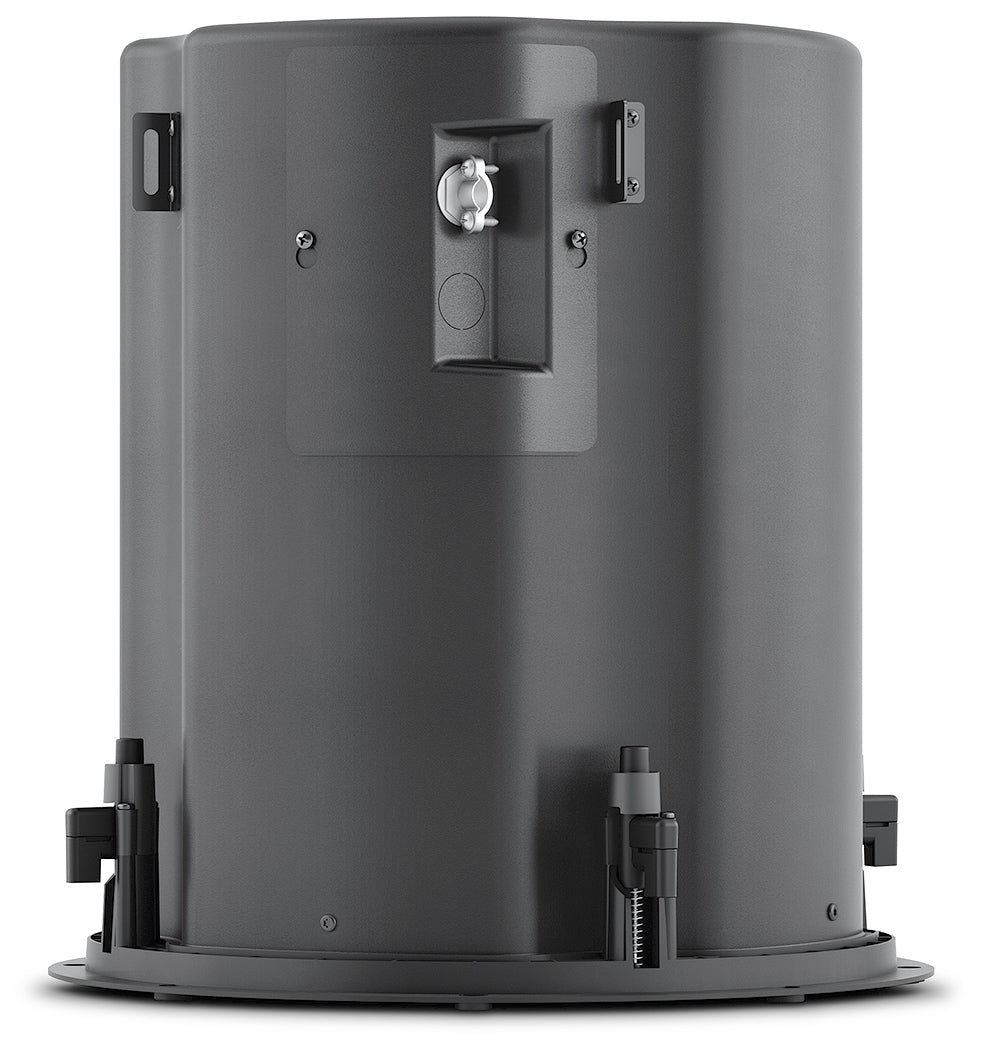

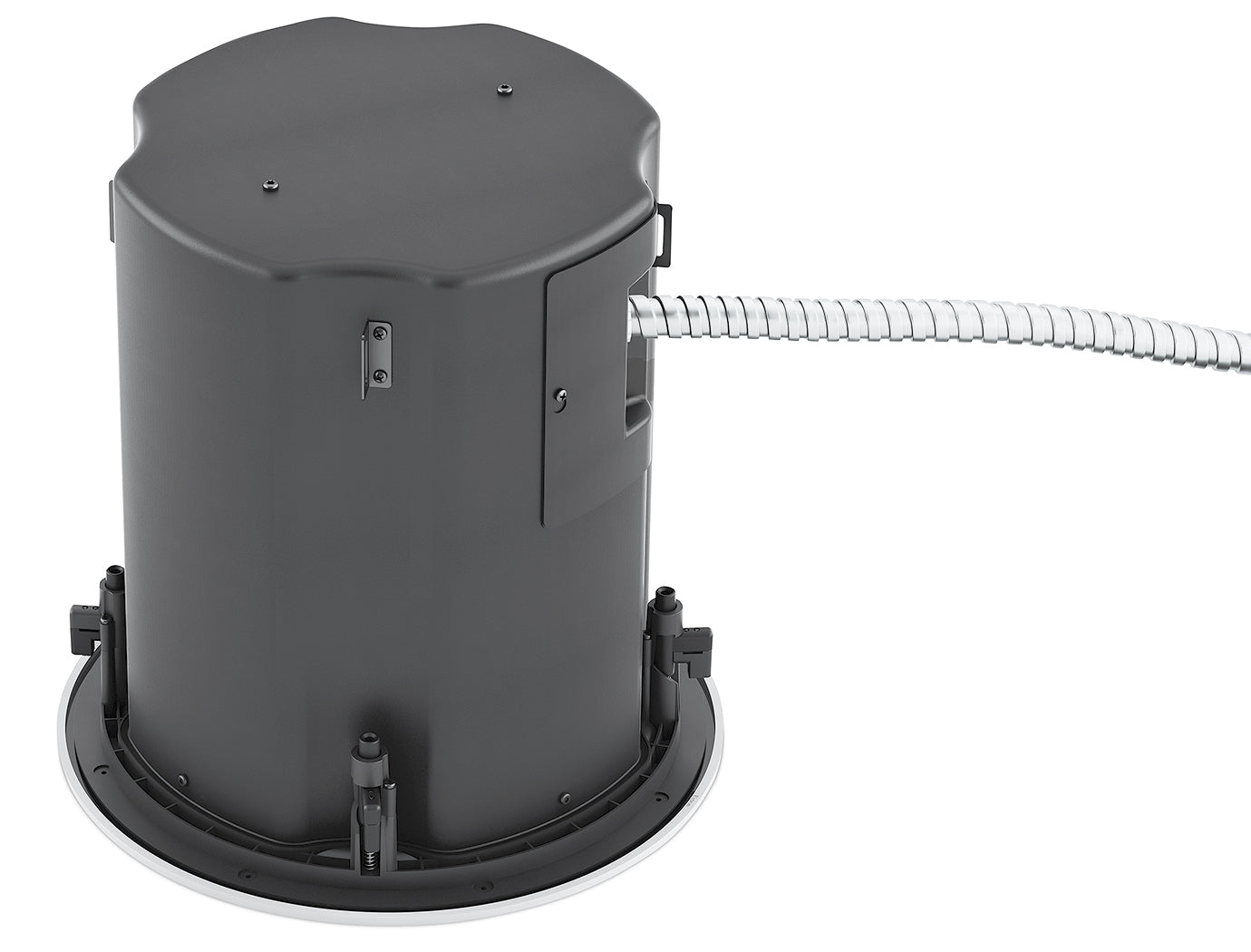

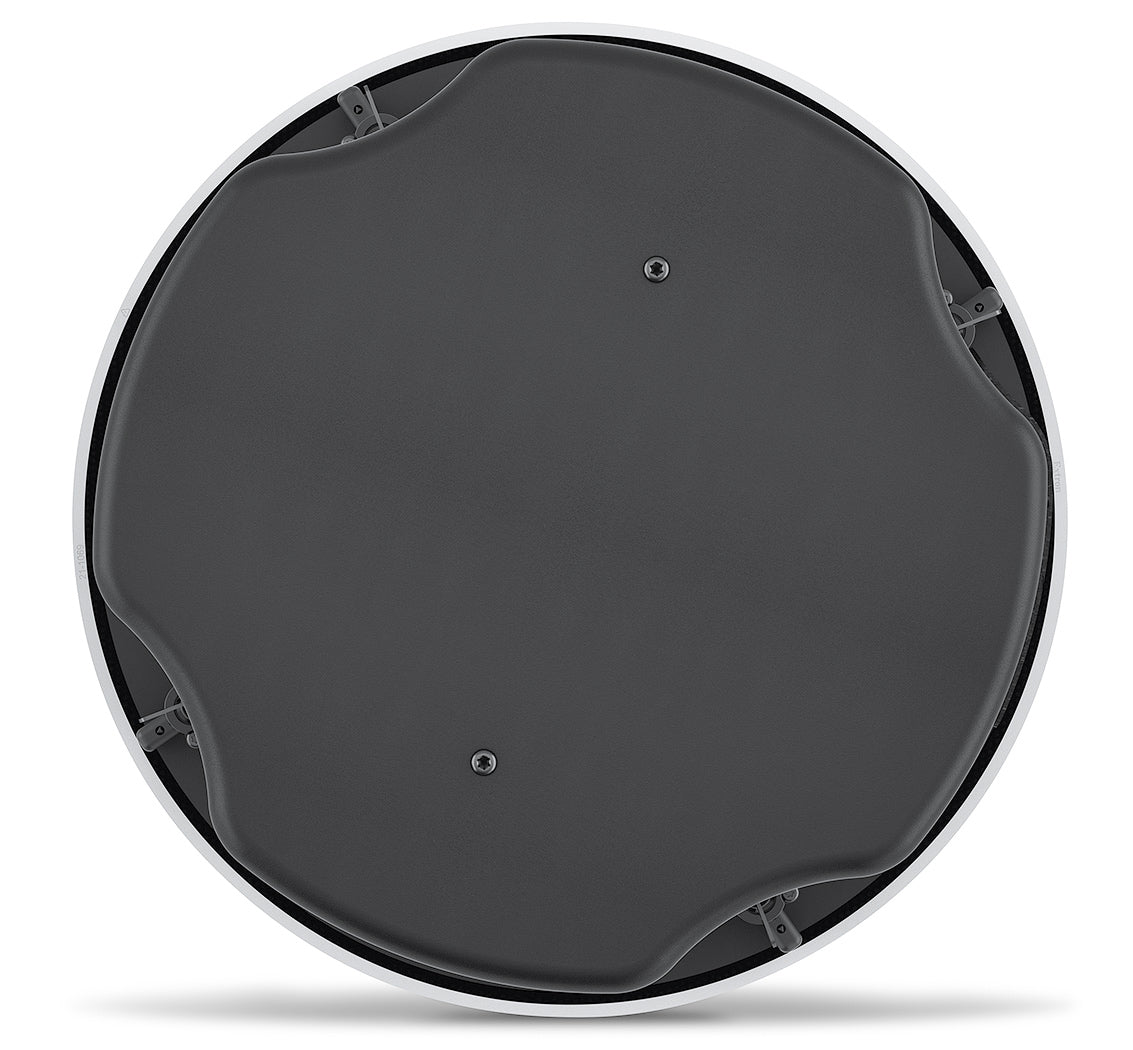

Enclosure Type: Plenum rated, fire-resistant (UL94V-0) baffle / steel back can / magnetically attached powder-coated steel grille with plastic bezel

Enclosure Outer Dimensions: 14.46" H x 12.74" diameter (367 mm H x 324 mm diameter); 14.39" H (366 mm) from front of ceiling tile to back of rear enclosure

Cutout Dimensions: 12.59" (320 mm)

Product Weight: 15.8 lbs (7.2 kg)

Ambient Temperature/Humidity: Storage: -40 to +158 °F / 10% to 90%, noncondensing. Operating: +32 to +122 °F / 10% to 90%, noncondensing

Regulatory Compliance, Safety: CE, UL 2043, CAN/ULC-S142:16, UL 1480A, NFPA 90A, NFPA 70

Regulatory Compliance, Environmental: RoHS, WEEE

Warranty: 5 years parts and labor

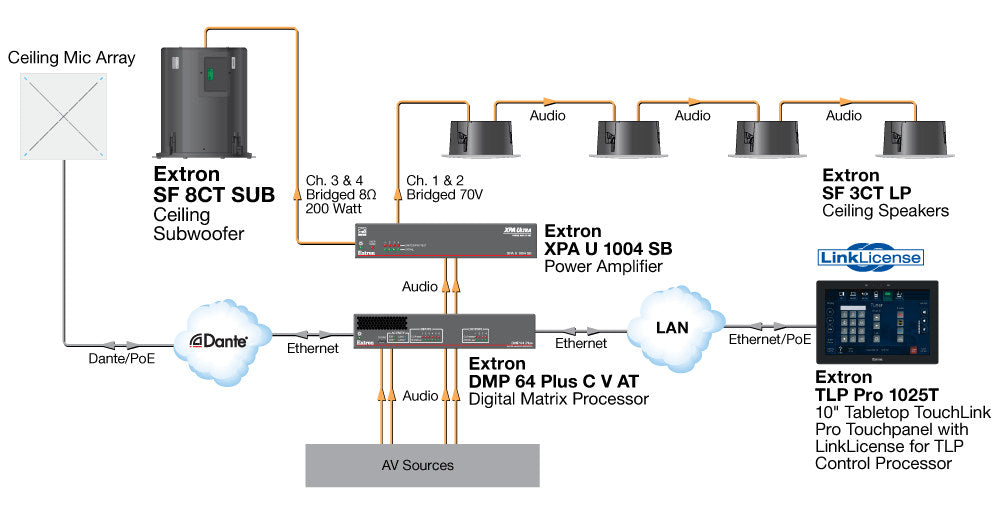

Diagram

Resources

Brochure | SF 8CT SUB 60-1941-03 | SF 8CT SUB (sf_8ct_sub_revA.pdf)

Brochure | SF 8CT SUB 60-1941-03 | SF 8CT SUB (SF-8CT-SUB_BR_A4_GE_RevA.pdf)

Brochure | SF 8CT SUB 60-1941-03 | SF 8CT SUB (SF-8CT-SUB_BR_A4_IT_RevA.pdf)

Brochure | SF 8CT SUB 60-1941-03 | SF 8CT SUB (SF-8CT-SUB_BR_A4_FR_RevA.pdf)

Brochure | SF 8CT SUB 60-1941-03 | SF 8CT SUB (SF-8CT-SUB_BR_A4_SP_RevA.pdf)

Manual | SF 8CT SUB 60-1941-03 | Extron SF 8CT SUB Setup Guide

Manual | SF 8CT SUB 60-1941-03 | SF 8CT SUB User Guide

Specifications | SF 8CT SUB 60-1941-03 | SF 8CT SUB

Panel Drawing | SF 8CT SUB 60-1941-03 | SF 8CT SUB
