Extron SF 3PT Pendant Speaker
- • 110 Hz to 20 kHz frequency range, 116 degree conical coverage
- • 16 W rms pink noise / 32 W rms program per pair
- • Direct 8 ohm or 70V/100V rotary taps (1-16 W)
- • Includes 20 ft PendantConnect cable and mounting plates
- • 3 in full-range paper-cone driver, voiced to match SF 3CT LP
- • Black finish, paintable to match any decor
- • UL 1480A listed, 5-year parts and labor warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

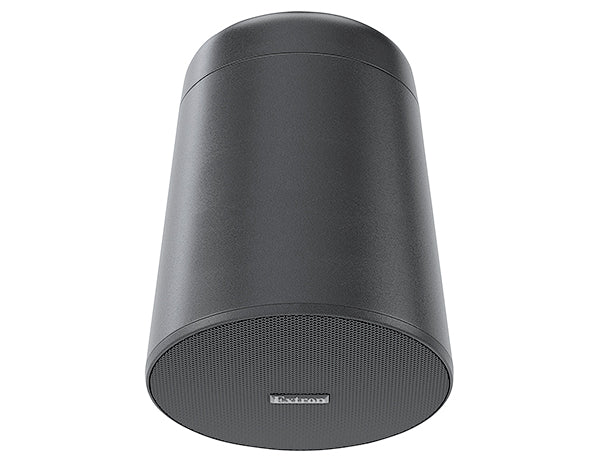

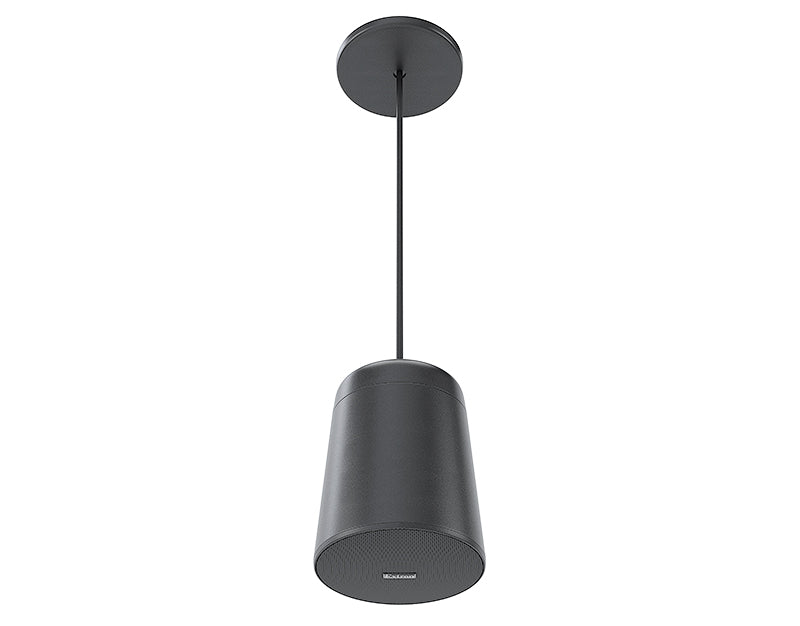

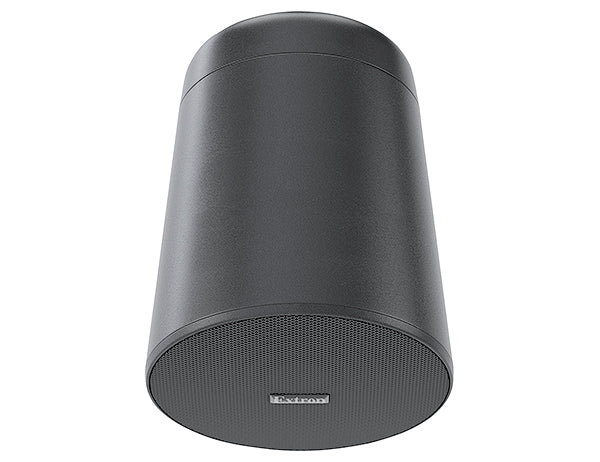

Extron SF 3PT (part number 60-1736-02, black) — a 3 in full-range pendant speaker pair for speech reinforcement and music in open-ceiling spaces.

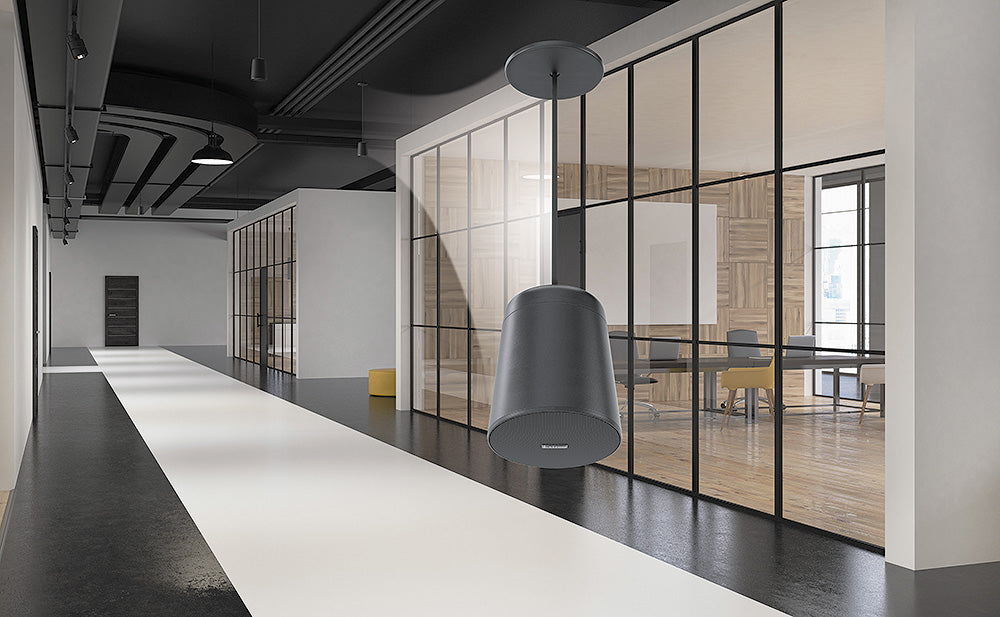

Paging and background music in open-ceiling areas often needs a speaker that disappears visually as well as acoustically. The SF 3PT hangs from Extron's exclusive PendantConnect cable, which bundles the speaker wires and a steel safety cable into one jacket, and is voiced to match the SF 3CT LP and SF 3C LP ceiling speakers so tone stays consistent as listeners move between drop-ceiling and open-ceiling zones. A protective bag and temporary hanger are included to keep the enclosure clean during installation.
Key Capabilities
- 110 Hz to 20 kHz frequency range (-10 dB, full space), 116° conical coverage.
- 16 W rms pink noise / 32 W rms continuous program per pair.
- Direct 8 ohm connection or 70V/100V rotary taps (1-16 W).
- Includes 20 ft (6.1 m) of PendantConnect PCC-1 cable.
- 3 in paper-cone full-range driver with full-range power limiter protection.
- Maximum SPL of 92 dB at 1 m; UL 1480A listed, finished in black.
Where It Is Used
Auditoriums, houses of worship, retail and warehouse spaces with exposed structure, where a pendant speaker needs to blend in and stay voice-matched to nearby ceiling speakers.
Specifications at a Glance
- Enclosure: 6.83 in H x 5.31 in diameter, high-impact fire-resistant UL94V-0 plastic
- Weight: 2.7 lbs each (3.6 lbs with mounting plate/cover and 10 ft of cable)
- Inputs: (2) 2-pole and (2) 3-pole splicing connectors
- Nominal impedance: 8 ohms per speaker
- Warranty: 5 years parts and labor
Also referenced as Extron SF3PT, SF-3PT, part number 60173602.
