Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair 60-1311-03
Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair 60-1311-03

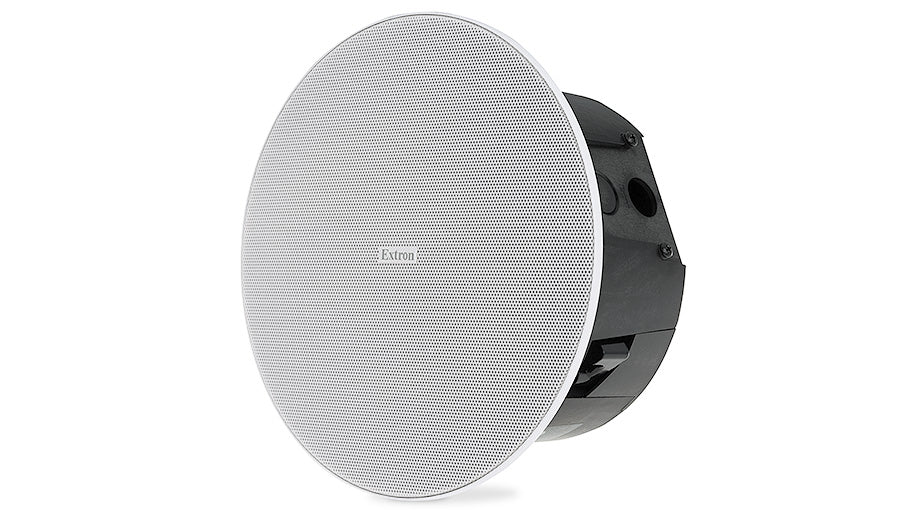

Extron SF 3CT LP Ceiling Speaker
- • Extron SF 3CT LP Low-Profile Ceiling Speaker Pair
- • 65 Hz to 20 kHz, 165 degree conical coverage
- • 70V/100V taps or direct 8 ohm, 4.4 in deep
- • Sales, replacement and exchange
- • Part# 60-1311-03 / 60131103
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron SF 3CT LP (part number 60-1311-03) - a pair of 3 in low-profile ceiling speakers with 70V/100V rotary taps for shallow plenums.
Corridors and small rooms often need background paging or overflow audio on the same 70V/100V loop as the rest of the building, but ceiling depth above the tile can be too shallow for a full-size distributed speaker. The SF 3CT LP fits a 3 in paper-cone driver into a 4.4 in deep composite back can and adds a rotary switch for 70V taps (1-16 W), 100V taps (2-16 W), or a direct 8 ohm connection, so it drops into the same amplifier zone as larger SF ceiling speakers.
Key Capabilities
- 65 Hz to 20 kHz frequency range (-10 dB, half space), 165° conical coverage.
- 16 W rms pink noise / 32 W rms continuous program per pair.
- Rotary-selectable 70V taps (1-16 W), 100V taps (2-16 W), or direct 8 ohm.
- Just 4.4 in deep overall - fits plenums too shallow for full-range models.
- UL 2043 and UL 1480 listed for plenum airspace installation.
- 7.6 in cutout; V-rails sized for standard 2 ft x 4 ft ceiling tiles.
Where It Is Used
Corridors, back-of-house areas, and overflow paging zones on a shared 70V/100V loop where ceiling depth is restricted and full-range coverage is not the goal.
Specifications at a Glance
- Enclosure: 4.4 in H x 8.9 in diameter, 3.6 lbs each
- Input: (1) 5 mm captive screw connector, 4-pole, with loop-through
- Nominal impedance: 8 ohms; nominal sensitivity 83 dB SPL, 1 W / 1 m
- Cutout: 7.6 in diameter
- Warranty: 5 years parts and labor
Frequently asked questions about the Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair
Does Ampronix sell the Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair (60-1311-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair?
Yes. Ampronix provides sales, replacement and exchange for the Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair. Call Ampronix for a quote.
Is the Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair listed under other names?
Yes. The Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair is also referenced as Extron SF3CTLP, SF-3CT-LP, part number 60131103.
What are the key features of the Extron SF 3CT LP 3 in Low-Profile Ceiling Speaker Pair?
Key points: 65 Hz to 20 kHz frequency range (-10 dB, half space), 165° conical coverage; 16 W rms pink noise / 32 W rms continuous program per pair; Rotary-selectable 70V taps (1-16 W), 100V taps (2-16 W), or direct 8 ohm; Just 4.4 in deep overall - fits plenums too shallow for full-range models. Call Ampronix to confirm details for your application.
Also referenced as Extron SF3CTLP, SF-3CT-LP, part number 60131103.
