Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair 60-1311-13
Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair 60-1311-13

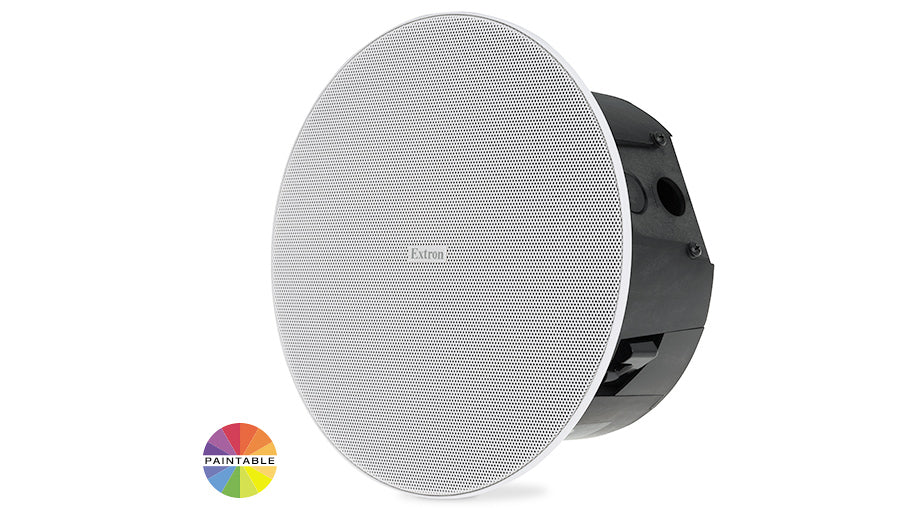

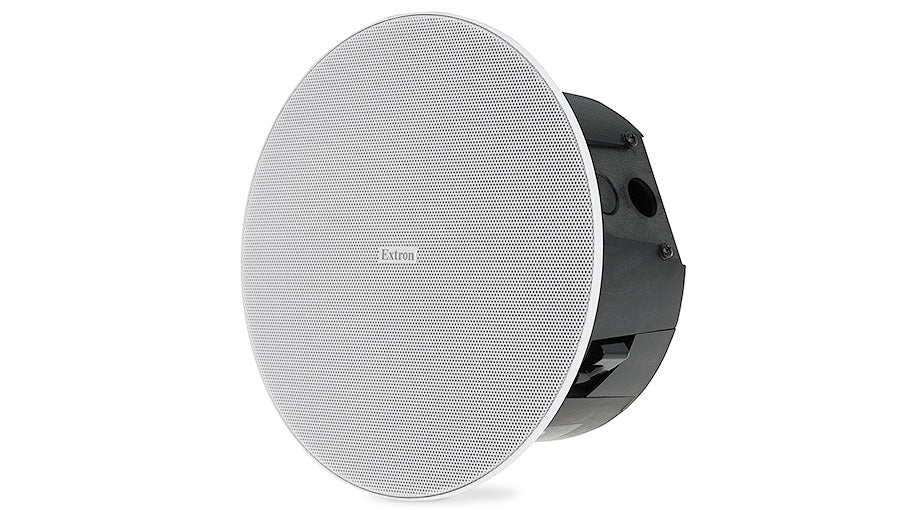

Extron SF 3C LP Ceiling Speaker
- • Extron SF 3C LP Low-Profile Ceiling Speaker Pair
- • 65 Hz to 20 kHz, 165 degree conical coverage
- • Direct 8 ohm only, 4.4 in deep overall
- • Sales, replacement and exchange
- • Part# 60-1311-13 / 60131113
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron SF 3C LP (part number 60-1311-13) - a pair of 3 in low-profile ceiling speakers for shallow plenums and speech-reinforcement zones.
Return-air plenums above suspended ceilings are not always deep enough for a full-size ceiling speaker, and background paging or overflow audio rarely needs full-range output anyway. The SF 3C LP answers both constraints with a 3 in paper-cone driver in a 4.4 in deep composite back can - only 4.0 in from the front of the tile to the top of the enclosure - that still carries a UL 2043 plenum rating and mounts with the same V-rail and C-ring hardware used across the SF ceiling speaker line.
Key Capabilities
- 65 Hz to 20 kHz frequency range (-10 dB, half space), 165° conical coverage.
- 16 W rms pink noise / 32 W rms continuous program per pair.
- 3 in paper-cone driver, direct 8 ohm connection only.
- Just 4.4 in deep overall - fits plenums too shallow for full-range models.
- UL 2043 and UL 1480 listed for plenum airspace installation.
- 7.6 in cutout; V-rails sized for standard 2 ft x 4 ft ceiling tiles.
Where It Is Used
Corridors, back-of-house areas, overflow paging zones and small huddle rooms where ceiling depth is restricted and full-range coverage is not the goal.
Specifications at a Glance
- Enclosure: 4.4 in H x 8.9 in diameter, 2.9 lbs each
- Input: (1) 5 mm captive screw connector, 4-pole, with loop-through
- Nominal impedance: 8 ohms; nominal sensitivity 83 dB SPL, 1 W / 1 m
- Cutout: 7.6 in diameter
- Warranty: 5 years parts and labor
Frequently asked questions about the Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair
Does Ampronix sell the Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair (60-1311-13). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair?
Yes. Ampronix provides sales, replacement and exchange for the Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair. Call Ampronix for a quote.
Is the Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair listed under other names?
Yes. The Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair is also referenced as Extron SF3CLP, SF-3C-LP, part number 60131113.
What are the key features of the Extron SF 3C LP 3 in Low-Profile Ceiling Speaker Pair?
Key points: 65 Hz to 20 kHz frequency range (-10 dB, half space), 165° conical coverage; 16 W rms pink noise / 32 W rms continuous program per pair; 3 in paper-cone driver, direct 8 ohm connection only; Just 4.4 in deep overall - fits plenums too shallow for full-range models. Call Ampronix to confirm details for your application.
Also referenced as Extron SF3CLP, SF-3C-LP, part number 60131113.
