Extron SF 28PT 8 in Pendant Speaker Pair - White 60-1946-03
Extron SF 28PT 8 in Pendant Speaker Pair - White 60-1946-03
Extron SF 28PT Pendant Speaker
- • Extron SF 28PT 8 in Pendant Speaker Pair White
- • 58 Hz to 22 kHz, 80 degree conical coverage
- • Includes 30 ft PendantConnect cable
- • Sales, replacement and exchange
- • Part# 60-1946-03 / 60194603
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

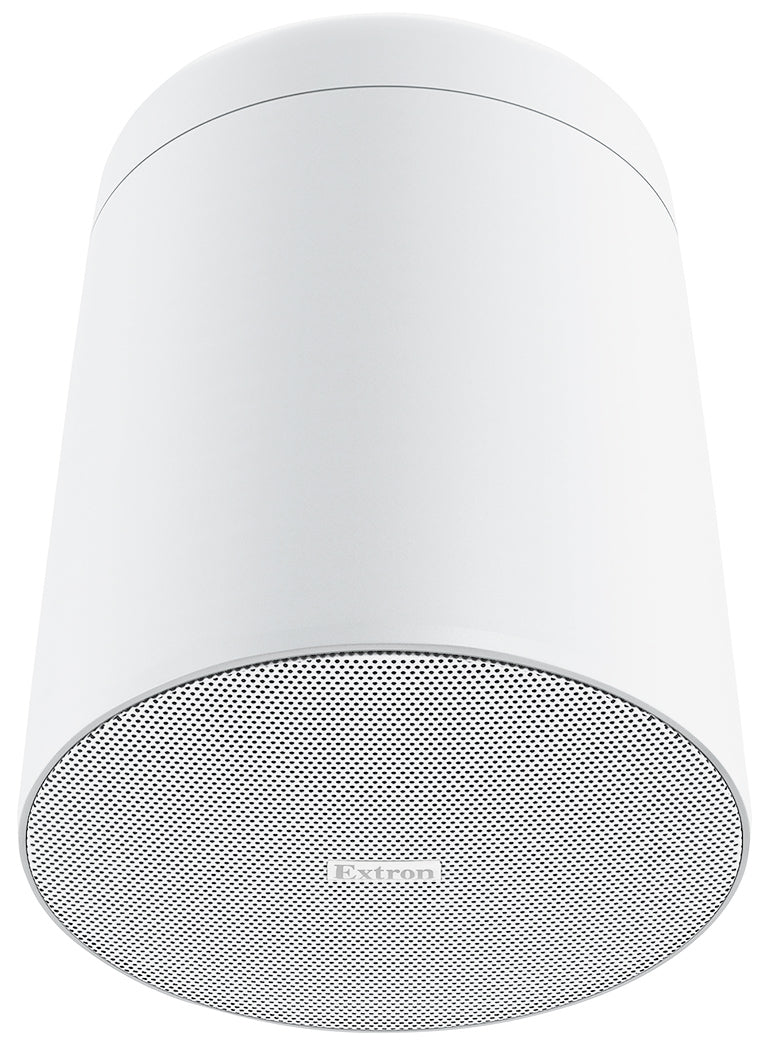

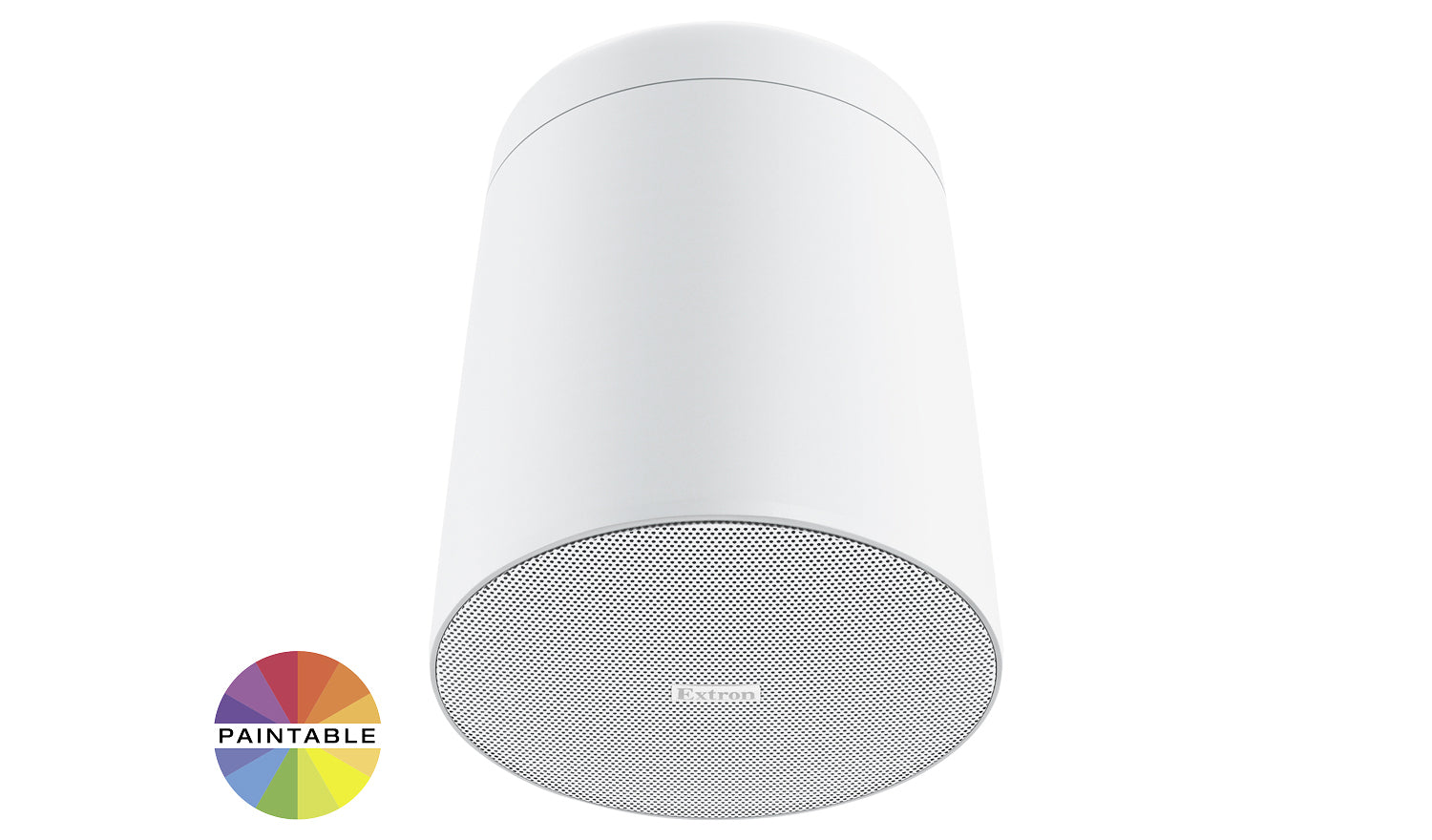

Extron SF 28PT (part number 60-1946-03, white) - an 8 in two-way pendant speaker pair for high-ceiling and open-ceiling program audio.

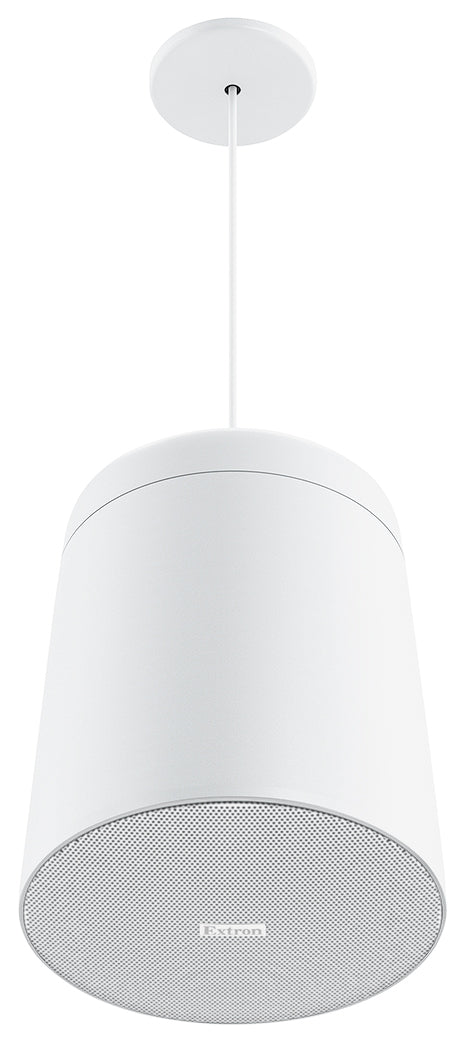

Larger rooms with higher ceilings need more headroom than a 6.5 in pendant speaker can deliver, so the SF 28PT steps up to an 8 in long-throw woofer and 1.1 in silk dome tweeter for 180 W of continuous program power and a tighter 80° pattern that concentrates output where it is needed. Like its SF 26PT sibling, it hangs from Extron's exclusive PendantConnect cable - speaker wires and steel support cables in a single jacket - and the enclosure is voiced to match the SF 228T Plus ceiling speaker so tonal balance holds as listeners move between zones.
Key Capabilities
- 58 Hz to 22 kHz frequency range (-10 dB, full space), 80° conical coverage.
- 90 W rms pink noise / 180 W rms continuous program per pair.
- Selectable 70V or 100V taps, or direct 8 ohm operation.
- Includes 30 ft (9.1 m) of PendantConnect PCC-2 cable with pre-swaged ends.
- 8 in polypropylene woofer and 1.1 in silk dome tweeter, 2.5 kHz crossover.
- Maximum SPL of 103 dB at 1 m; UL 1480A listed, finished in white.
Where It Is Used

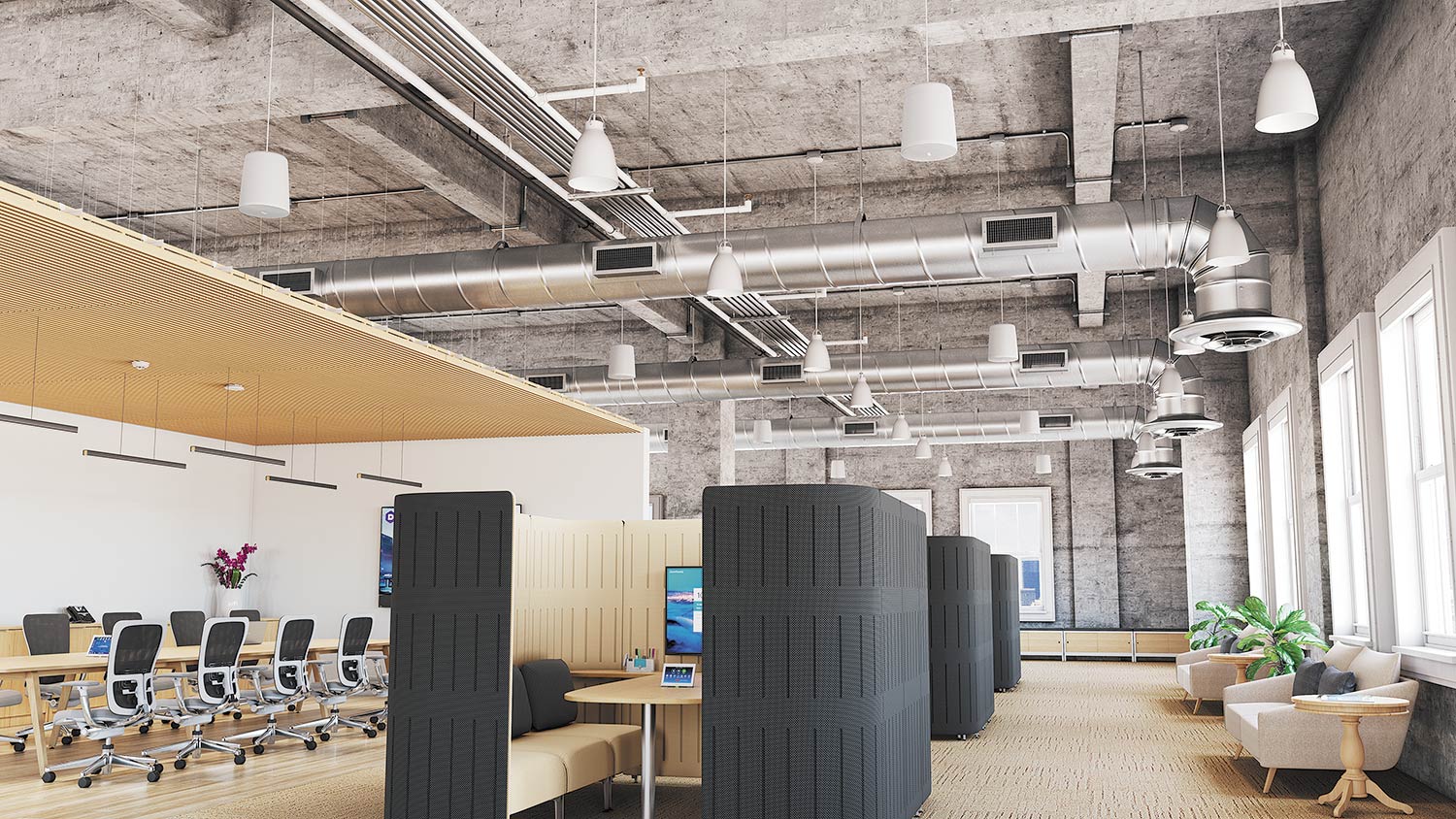

Contemporary restaurants, entertainment venues, atriums and large open-plan spaces where higher SPL and tighter pattern control matter more than in a standard conference room.
Specifications at a Glance
- Enclosure: 13.30 in H x 11.00 in diameter, fire-resistant UL94V-0 plastic
- Weight: 12.5 lbs each (13.6 lbs with 15 ft of cable and optional mounting plate)
- Inputs: (2) 2-pole and (2) 3-pole splicing connectors
- Nominal impedance: 8 ohms per speaker
- Warranty: 5 years parts and labor
Frequently asked questions about the Extron SF 28PT 8 in Pendant Speaker Pair - White
Does Ampronix sell the Extron SF 28PT 8 in Pendant Speaker Pair - White?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SF 28PT 8 in Pendant Speaker Pair - White (60-1946-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SF 28PT 8 in Pendant Speaker Pair - White?
Yes. Ampronix provides sales, replacement and exchange for the Extron SF 28PT 8 in Pendant Speaker Pair - White. Call Ampronix for a quote.
Is the Extron SF 28PT 8 in Pendant Speaker Pair - White listed under other names?
Yes. The Extron SF 28PT 8 in Pendant Speaker Pair - White is also referenced as Extron SF28PT, SF-28PT, part number 60194603.
What are the key features of the Extron SF 28PT 8 in Pendant Speaker Pair - White?
Key points: 58 Hz to 22 kHz frequency range (-10 dB, full space), 80° conical coverage; 90 W rms pink noise / 180 W rms continuous program per pair; Selectable 70V or 100V taps, or direct 8 ohm operation; Includes 30 ft (9.1 m) of PendantConnect PCC-2 cable with pre-swaged ends. Call Ampronix to confirm details for your application.
Also referenced as Extron SF28PT, SF-28PT, part number 60194603.
Related: Extron products, Video Solutions.
Specifications
Specifications

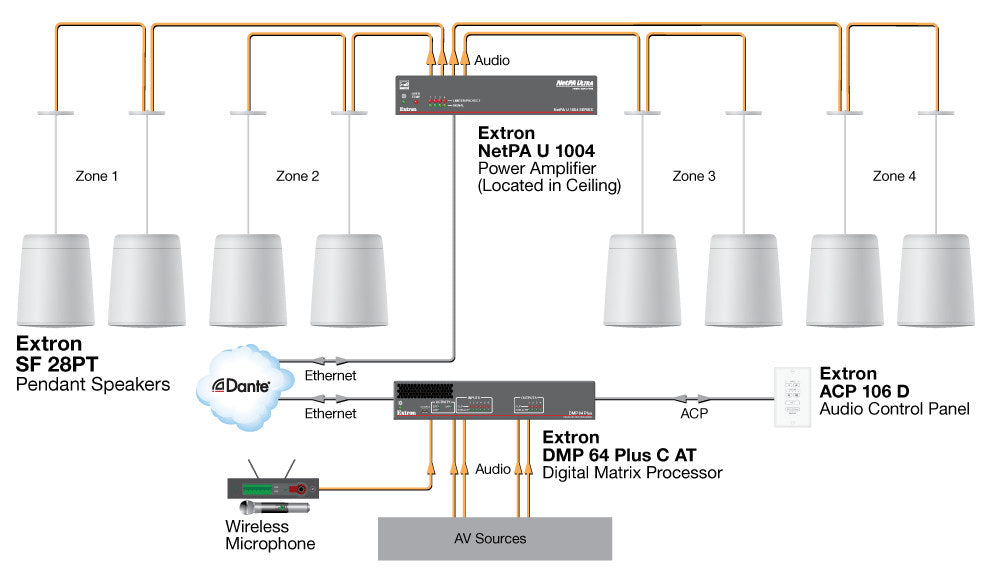

Diagram
