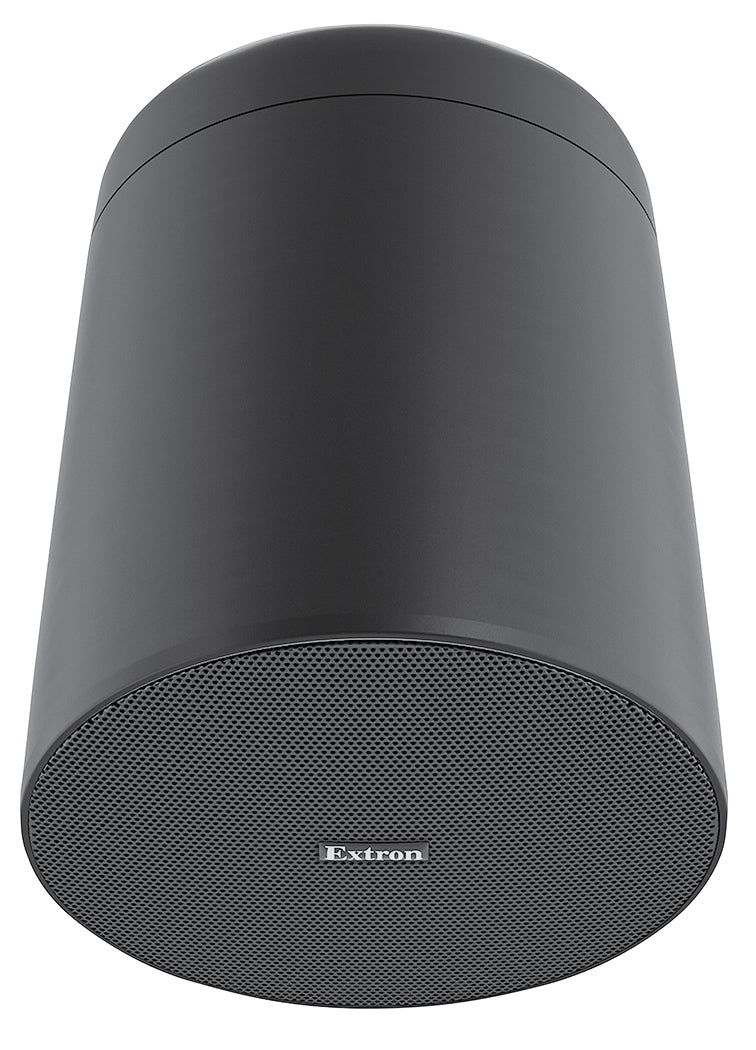

Extron SF 28PT 8 in Pendant Speaker Pair - Black 60-1946-02

Details

Extron SF 28PT (part number 60-1946-02, black) — an 8 in two-way pendant speaker pair for high-ceiling and open-ceiling program audio.

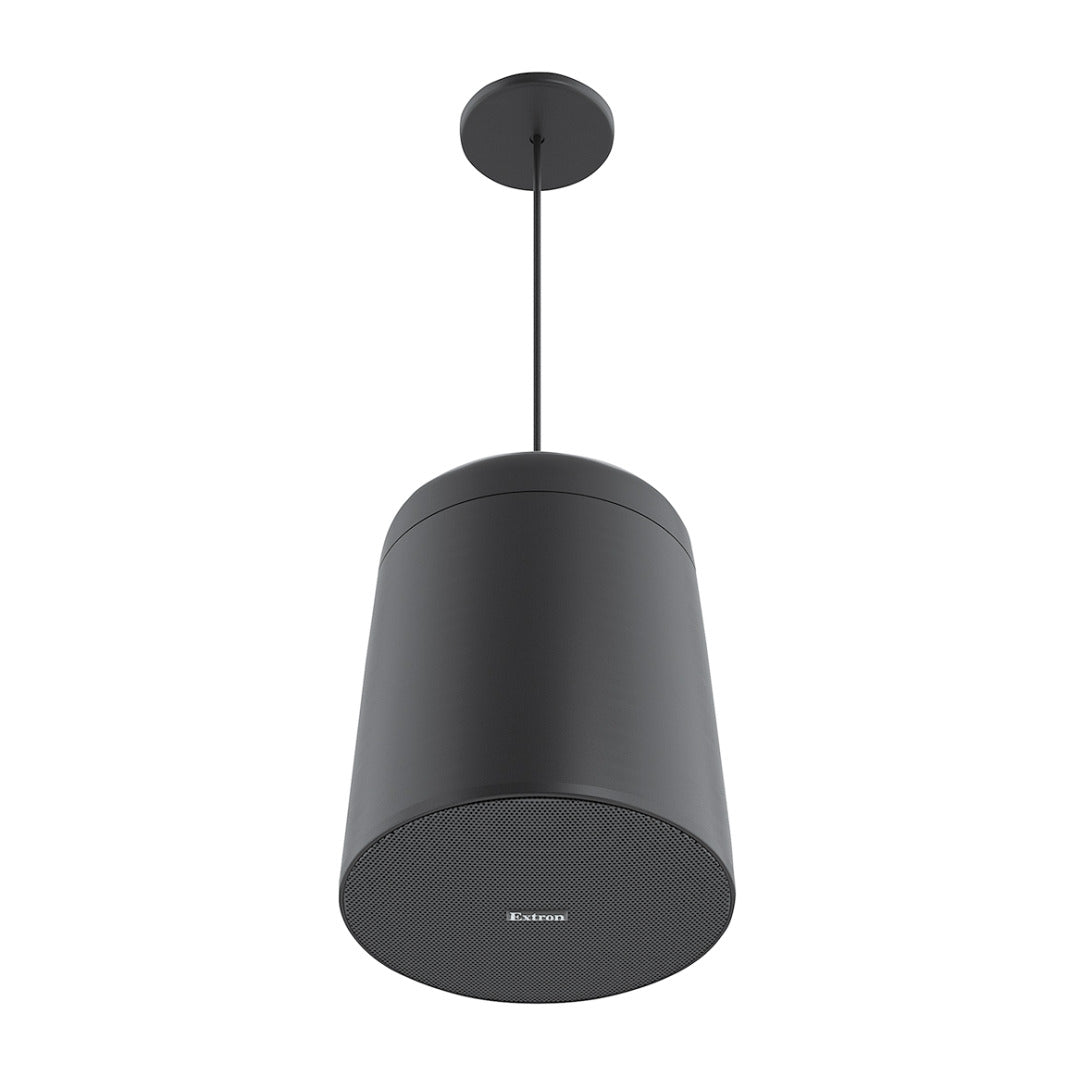

Larger rooms with higher ceilings need more headroom than a 6.5 in pendant speaker can deliver, so the SF 28PT steps up to an 8 in long-throw woofer and 1.1 in silk dome tweeter for 180 W of continuous program power and a tighter 80° pattern that concentrates output where it is needed. Like its SF 26PT sibling, it hangs from Extron's exclusive PendantConnect cable — speaker wires and steel support cables in a single jacket — and the enclosure is voiced to match the SF 228T Plus ceiling speaker so tonal balance holds as listeners move between zones.

Key Capabilities

58 Hz to 22 kHz frequency range (-10 dB, full space), 80° conical coverage.
90 W rms pink noise / 180 W rms continuous program per pair.
Selectable 70V or 100V taps, or direct 8 ohm operation.
Includes 30 ft (9.1 m) of PendantConnect PCC-2 cable with pre-swaged ends.
8 in polypropylene woofer and 1.1 in silk dome tweeter, 2.5 kHz crossover.
Maximum SPL of 103 dB at 1 m; UL 1480A listed, finished in black.

Where It Is Used

Contemporary restaurants, entertainment venues, atriums and large open-plan spaces where higher SPL and tighter pattern control matter more than in a standard conference room.

Specifications at a Glance

Enclosure: 13.30 in H x 11.00 in diameter, fire-resistant UL94V-0 plastic
Weight: 12.5 lbs each (13.6 lbs with 15 ft of cable and optional mounting plate)
Inputs: (2) 2-pole and (2) 3-pole splicing connectors
Nominal impedance: 8 ohms per speaker
Warranty: 5 years parts and labor

Also referenced as Extron SF28PT, SF-28PT, part number 60194602.

Specifications

Part Number: 60-1946-02

Manufacturer: Extron

Model: SF 28PT

Condition: New

Finish: Black

Speaker Type: Pendant speaker with plastic back can

Package: 2 speakers (1 pair)

Woofer: (1) 8" (203.2 mm) polypropylene cone with moisture resistant coating

Tweeter: (1) 1.1" (28 mm) silk dome

Frequency Range: 58 Hz to 22 kHz, -10 dB, full space (per IEC 60268-5)

Power Capacity: 90 W (rms) continuous pink noise; 180 W (rms) continuous program

Rated Maximum Input Voltage (MIV): 26.9 V (90 W at 8 ohms) (per AES2-2012)

Maximum SPL: 103 dB, 1 m (based on MIV); 105 dB, 1 m (linear)

Nominal Sensitivity: 86 dB SPL, 1 W, 1 m, full space

Nominal Coverage Angle: 80° conical coverage (1 kHz to 4 kHz)

Nominal Impedance: 8 ohms per speaker

Crossover Frequency: 2.5 kHz

Rotary Switch Taps: 70V: 64 W, 32 W, 16 W, 8 W, 8 ohms direct; 100V: null, 64 W, 16 W, 8 W, 8 ohms direct

Overload Protection: Full range power limiter with the 8 ohm direct input only, protecting the tweeter, woofer, and crossover

Input Connector: (2) 2-pole splicing connectors; (2) 3-pole splicing connectors, for 1 input and 1 loop-through

Included Accessories: Setup guide, (4) 2-pole splicing connectors, (4) 3-pole splicing connectors, 30' (9.1 m) PendantConnect cable

Mounting: Ceiling mountable with included hardware

Enclosure Materials: Fire-resistant (UL94V-0) plastic

Enclosure Design: Plastic, tapered cylindrical

Grille Material: Powder-coated steel

Enclosure Outer Dimensions: 13.30" H x 11.00" diameter (338 mm H x 281 mm diameter)

Product Weight: 12.5 lbs (5.7 kg) each; 13.6 lbs (6.2 kg) with 15' (4.6 m) of PCC-2 cable and optional SMK C SF 26PT mounting plate

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory Compliance, Safety: CE, UL 1480A

Regulatory Compliance, Environmental: RoHS, WEEE

Warranty: 5 years parts and labor

Diagram

Resources

Brochure | SF 28PT 60-1946-02 | SF 26PT & SF 28PT

Brochure | SF 28PT 60-1946-02 | SF 26PT e SF 28PT

Brochure | SF 28PT 60-1946-02 | SF 26PT et SF 28PT

Brochure | SF 28PT 60-1946-02 | SF 26PT und SF 28PT

Brochure | SF 28PT 60-1946-02 | SF 26PT y SF 28PT

Brochure | SF 28PT 60-1946-02 | SF 26PT и SF 28PT

Manual | SF 28PT 60-1946-02 | SF 28PT Setup Guide

Manual | SF 28PT 60-1946-02 | SF 28PT User Guide

Specifications | SF 28PT 60-1946-02 | SF 28PT

Panel Drawing | SF 28PT 60-1946-02 | SF 28PT
