Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair 60-1312-03
Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair 60-1312-03
Extron SF 26X Ceiling Speaker
- • Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair
- • 50 Hz to 20 kHz, 107 degree conical coverage
- • 8 ohm direct drive, 3.0 in enclosure depth
- • Sales, replacement and exchange
- • Part# 60-1312-03 / 60131203
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

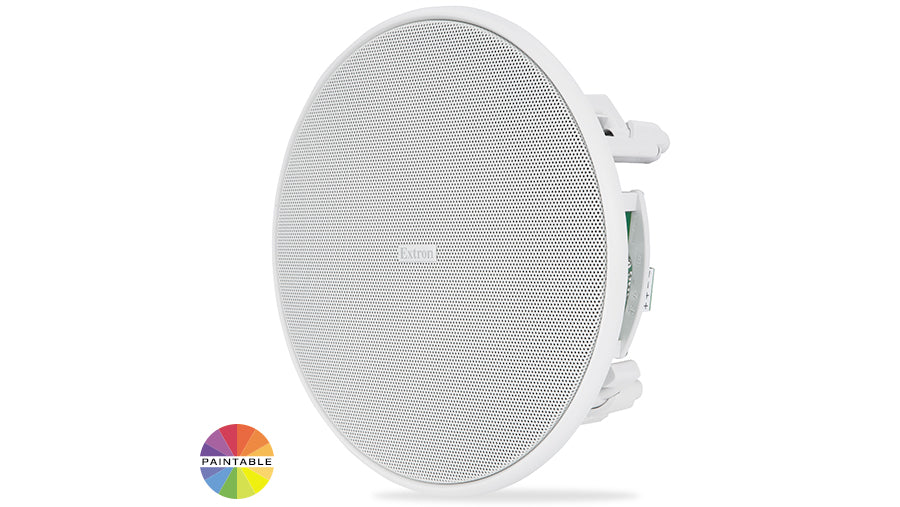

Extron SF 26X (part number 60-1312-03) - a pair of 6.5 in open-back ceiling speakers for 8 ohm direct-drive audio systems.

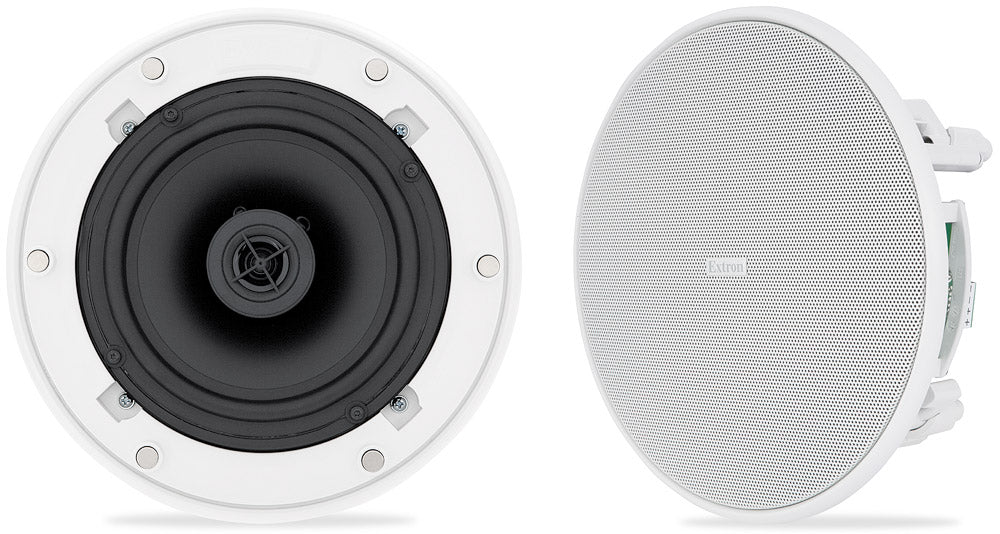

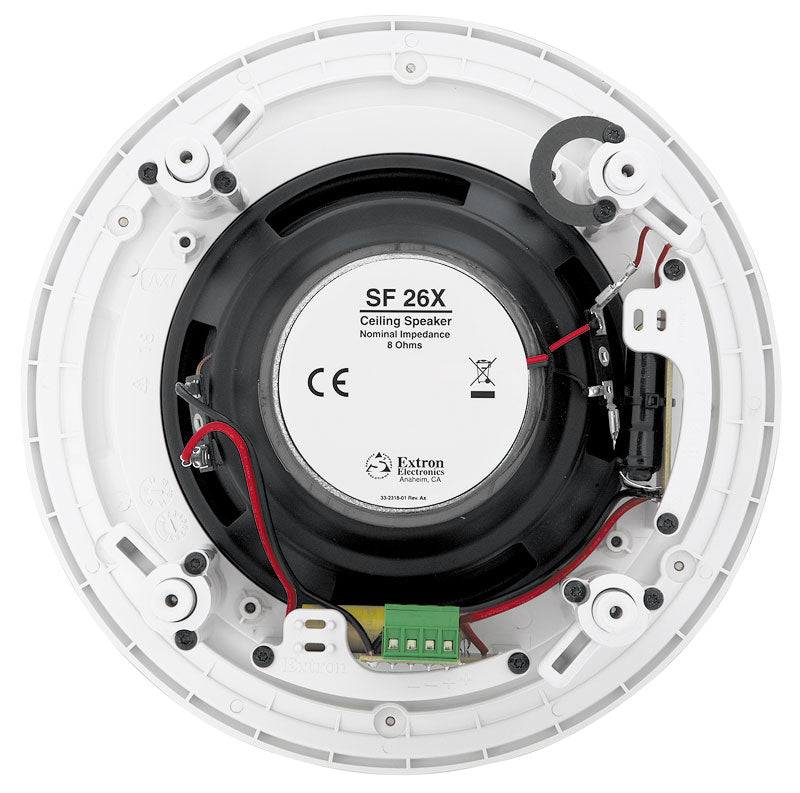

Some ceiling audio zones run a dedicated amplifier per room rather than a shared 70V/100V loop, which calls for a speaker built purely for 8 ohm operation rather than a tapped transformer design. The SF 26X uses an infinite-baffle open-back enclosure with a 6.5 in polypropylene woofer and 3/4 in PEI dome tweeter behind a 2.3 kHz crossover, mounts with a single captive screw connector, and needs only a 7.6 in cutout and 2 grille hooks to install.
Key Capabilities
- 50 Hz to 20 kHz frequency range (-10 dB, half space).
- 25 W rms pink noise / 50 W rms continuous program per pair.
- 107° conical coverage from 1 kHz to 4 kHz.
- 8 ohm direct-drive only - no 70V/100V transformer taps.
- Full range power limiter protects the tweeter, woofer and crossover.
- Compact 3.0 in enclosure depth and 2.6 lbs weight per speaker.
Where It Is Used
Conference rooms, small offices, and classrooms wired for zone-per-amplifier audio rather than distributed 70V/100V, where a shallow open-back speaker needs to disappear into a standard drop ceiling.
Specifications at a Glance
- Outer dimensions: 3.0 in H x 9.0 in diameter; 7.6 in cutout
- Nominal impedance: 8 ohms; nominal sensitivity 83 dB SPL, 1 W / 1 m
- Included: cutout template, setup guide, 2 grille hooks
- Rated for ISTA 1A carton vibration testing
- Warranty: 5 years parts and labor
Frequently asked questions about the Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair
Does Ampronix sell the Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair (60-1312-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair?
Yes. Ampronix provides sales, replacement and exchange for the Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair. Call Ampronix for a quote.
Is the Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair listed under other names?
Yes. The Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair is also referenced as Extron SF26X, SF-26X, part number 60131203.
What are the key features of the Extron SF 26X 6.5 in Open-Back Ceiling Speaker Pair?
Key points: 50 Hz to 20 kHz frequency range (-10 dB, half space); 25 W rms pink noise / 50 W rms continuous program per pair; 107° conical coverage from 1 kHz to 4 kHz; 8 ohm direct-drive only - no 70V/100V transformer taps. Call Ampronix to confirm details for your application.
Also referenced as Extron SF26X, SF-26X, part number 60131203.
Related: Extron products, Video Solutions.
Specifications
Specifications

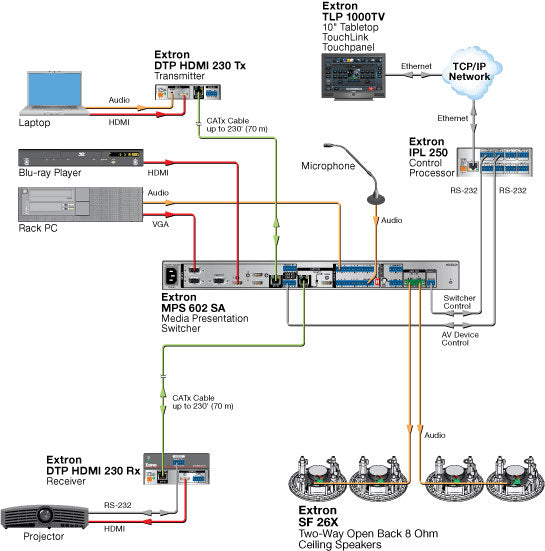

Diagram
