Details

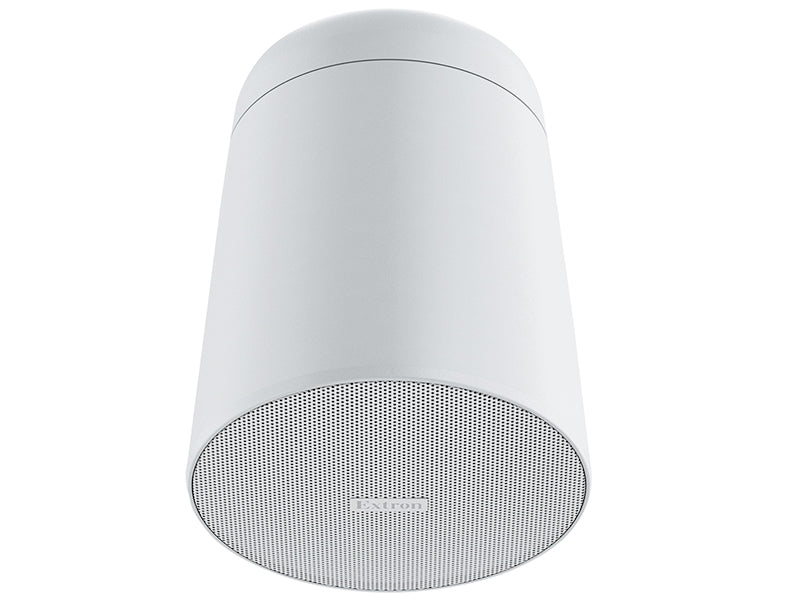

Extron SF 26PT (part number 60-1752-03, white) — a two-way pendant speaker pair built for open-ceiling and high-ceiling program audio.

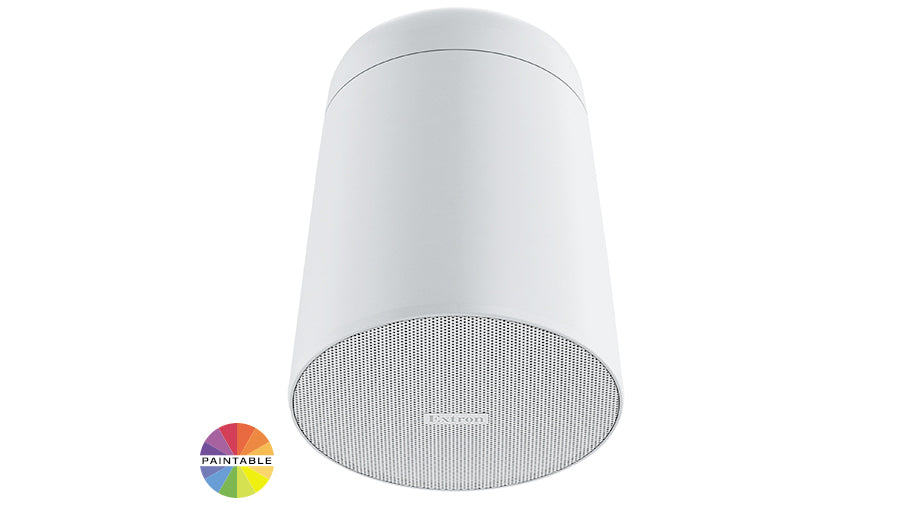

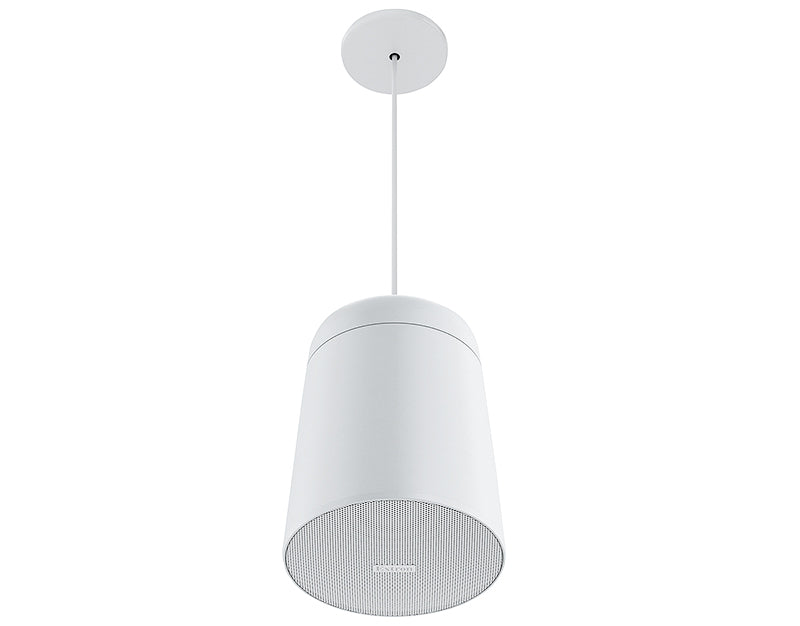

Open-ceiling architecture often rules out flush-mount speakers, but running separate signal and safety cables looks unfinished. The SF 26PT hangs from Extron's exclusive PendantConnect cable, which bundles the speaker wires and steel support cables into one jacket, and the tapered cylindrical enclosure is voiced to match the SF 26CT ceiling speaker so tone stays consistent as listeners move between drop-ceiling and open-ceiling zones. Each enclosure ships finished in white and is paintable to match the space.

Key Capabilities

70 Hz to 20 kHz frequency range (-10 dB, full space), 95° conical coverage.
65 W rms pink noise / 130 W rms continuous program per pair.
Selectable 70V (8-64 W) or 100V (16-64 W) taps, or direct 8 ohm.
Includes 30 ft (9.1 m) of PendantConnect PCC-2 cable with pre-swaged ends.
6.5 in polypropylene woofer and 3/4 in PEI dome tweeter, 2.5 kHz crossover.
Maximum SPL of 102 dB at 1 m; UL 1480A listed.

Where It Is Used

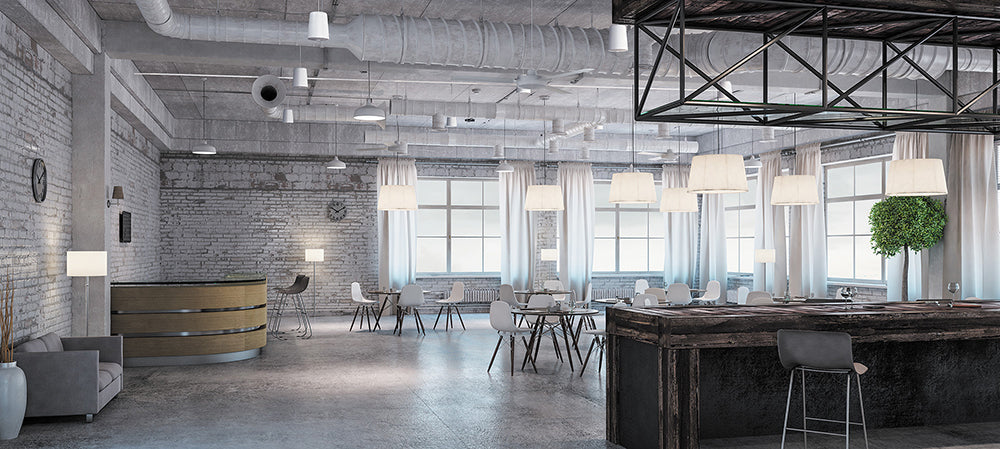

Atriums, convention and exhibit spaces, restaurants, and warehouse or retail interiors with exposed structure, where a pendant speaker needs to blend into contemporary lighting rather than stand out.

Specifications at a Glance

Enclosure: 11.6 in H x 9.0 in diameter, fire-resistant UL94V-0 plastic
Weight: 10.4 lbs each (11.5 lbs with 15 ft of cable and optional mounting plate)
Inputs: (2) 2-pole and (2) 3-pole splicing connectors
Nominal impedance: 8 ohms per speaker
Warranty: 5 years parts and labor

Also referenced as Extron SF26PT, SF-26PT, part number 60175203.

Specifications

Part Number: 60-1752-03

Manufacturer: Extron

Model: SF 26PT

Condition: New

Finish: White

Speaker Type: Pendant speaker with plastic back can

Package: 2 speakers (1 pair)

Woofer: (1) 6.5" (165 mm) polypropylene cone with moisture resistant coating

Tweeter: (1) 3/4" (19.1 mm) PEI dome

Frequency Range: 70 Hz to 20 kHz, -10 dB, full space (per IEC 60268-5)

Power Capacity: 65 W (rms) continuous pink noise; 130 W (rms) continuous program

Rated Maximum Input Voltage (MIV): 17.8 V (52 W at 6 ohms) (per AES2-2012)

Maximum SPL: 102 dB, 1 m (based on MIV); 103 dB, 1 m (linear)

Nominal Sensitivity: 86 dB SPL, 1 W, 1 m, full space

Nominal Coverage Angle: 95° conical coverage (1 kHz to 4 kHz)

Nominal Impedance: 8 ohms per speaker

Crossover Frequency: 2.5 kHz

Rotary Switch Taps: 70V: 64 W, 32 W, 16 W, 8 W, 8 ohms direct; 100V: null, 64 W, 32 W, 16 W, 8 ohms direct

Overload Protection: Full range power limiter with the 8 ohm direct input only, protecting the tweeter, woofer, and crossover

Input Connector: (2) splicing connectors, 2 pole; (2) splicing connectors, 3 pole, for 1 input and 1 loop-through

Included Accessories: Setup guide, 4 2-pole splicing connectors, 4 3-pole splicing connectors, 30' (9.1 m) PendantConnect cable

Mounting: Ceiling mountable with included hardware

Enclosure Materials: Fire-resistant (UL94V-0) plastic

Enclosure Design: Plastic, tapered cylindrical

Grille Material: Powder-coated steel

Enclosure Outer Dimensions: 11.6" H x 9.0" diameter (295.1 mm H x 229.1 mm diameter)

Product Weight: 10.4 lbs (4.7 kg) each; 11.5 lbs (5.2 kg) with 15' (4.6 m) of PCC-2 cable and optional SMK C SF 26PT mounting plate

Regulatory Compliance: CE, UL 1480A, RoHS, WEEE

Warranty: 5 years parts and labor

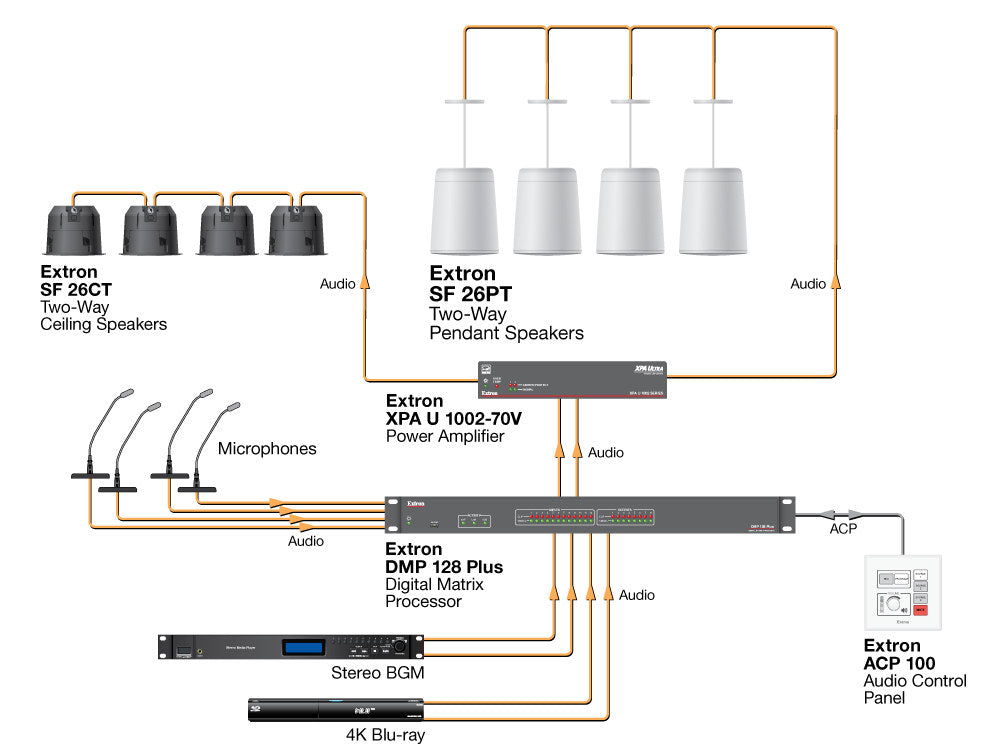

Diagram

Resources

Brochure | SF 26PT 60-1752-03 | SF 26PT & SF 28PT

Brochure | SF 26PT 60-1752-03 | SF 26PT (sf_26pt_REV_A_jp_ONLINE.pdf)

Brochure | SF 26PT 60-1752-03 | SF 26PT (sf_26pt_REV_A_cn_ONLINE.pdf)

Brochure | SF 26PT 60-1752-03 | SF 26PT e SF 28PT

Brochure | SF 26PT 60-1752-03 | SF 26PT et SF 28PT

Brochure | SF 26PT 60-1752-03 | SF 26PT und SF 28PT

Brochure | SF 26PT 60-1752-03 | SF 26PT y SF 28PT

Brochure | SF 26PT 60-1752-03 | SF 26PT и SF 28PT

Manual | SF 26PT 60-1752-03 | Cleaning Instruction Card

Manual | SF 26PT 60-1752-03 | SF 26PT Setup Guide

Manual | SF 26PT 60-1752-03 | SF 26PT User Guide

Specifications | SF 26PT 60-1752-03 | SF 26PT

Panel Drawing | SF 26PT 60-1752-03 | SF 26PT
