Extron SF 26CT LP Ceiling Speaker
- • Extron SF 26CT LP 6.5 in Low-Profile Speaker Pair
- • Only 4.72 in deep, 9.3 in cutout
- • 65 W rms per speaker, 70V/100V or 8 ohm
- • Sales, replacement and exchange
- • Part# 60-1881-03 / 60188103
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

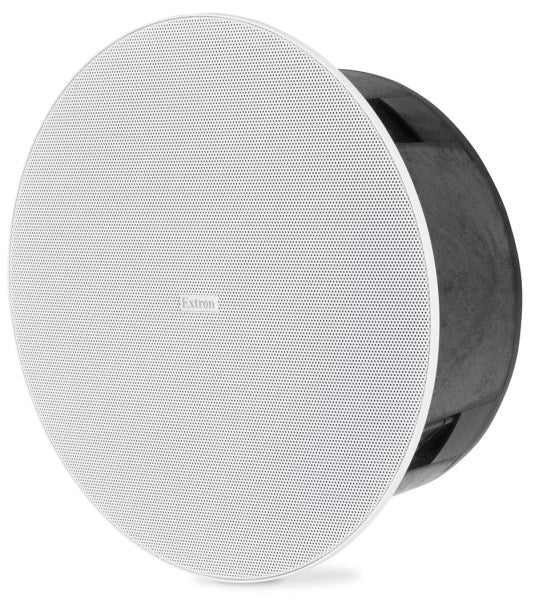

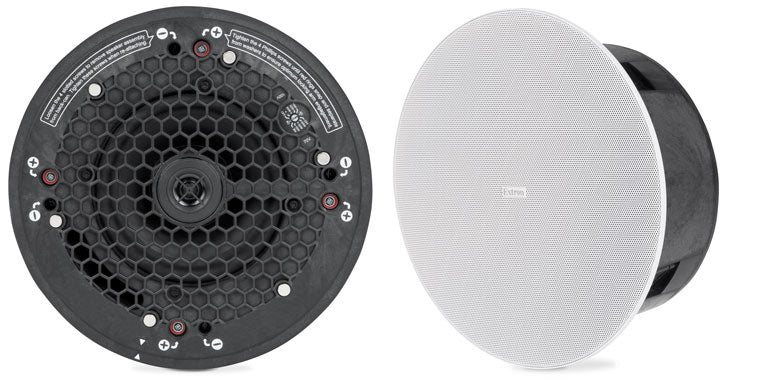

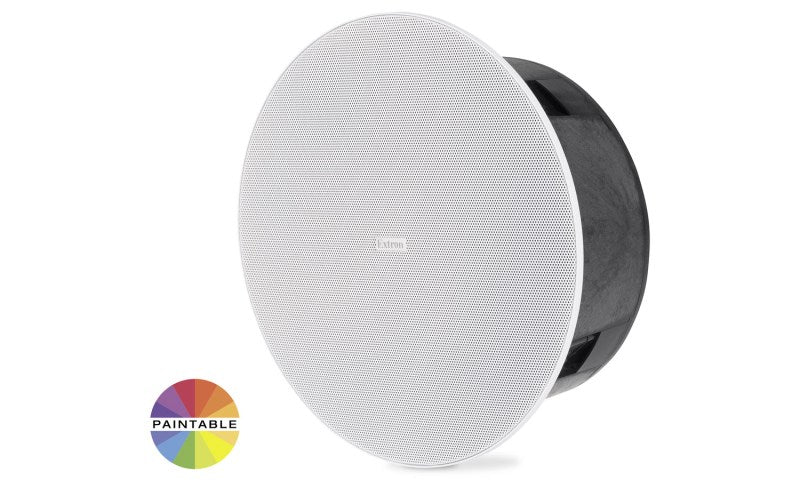

Extron SF 26CT LP (part number 60-1881-03) - a matched pair of 6.5 in low-profile ceiling speakers for shallow plenums.

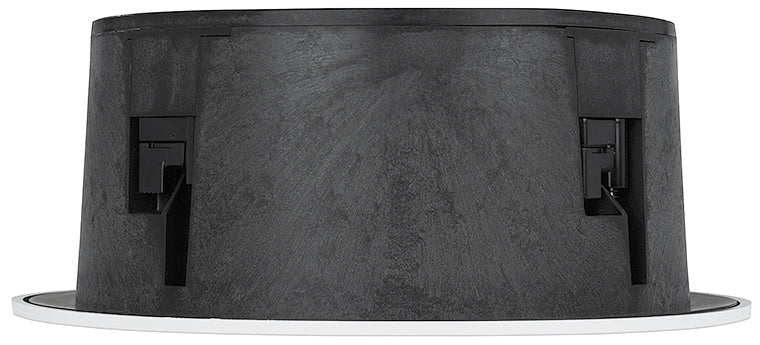

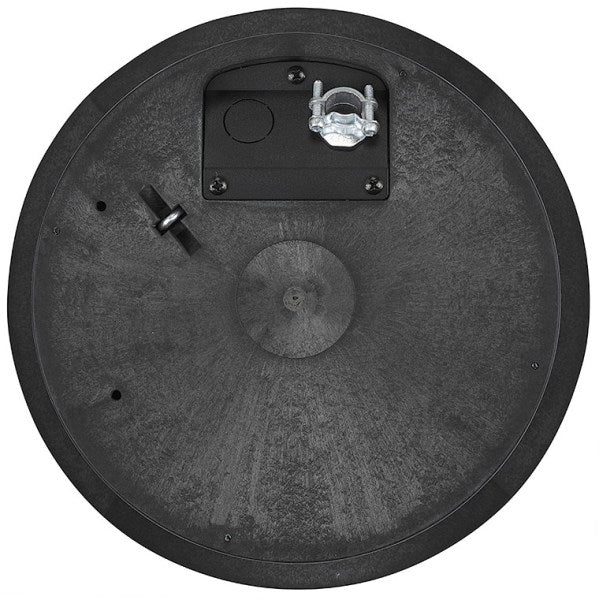

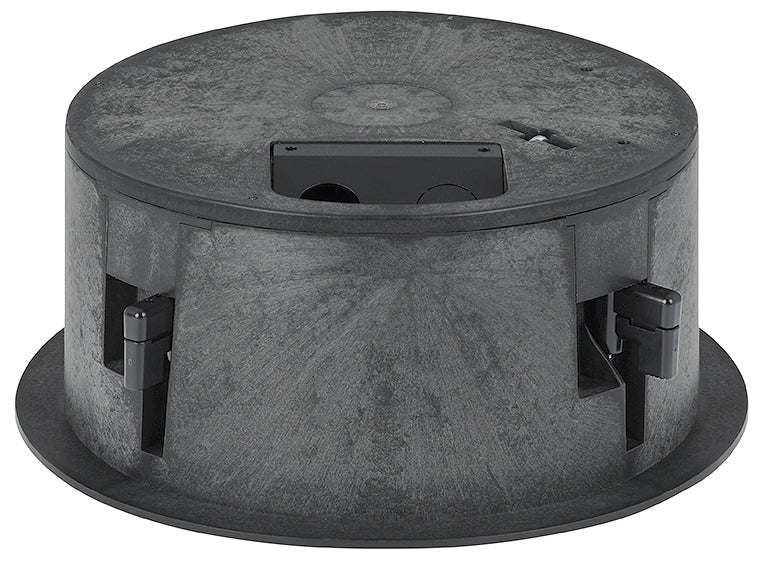

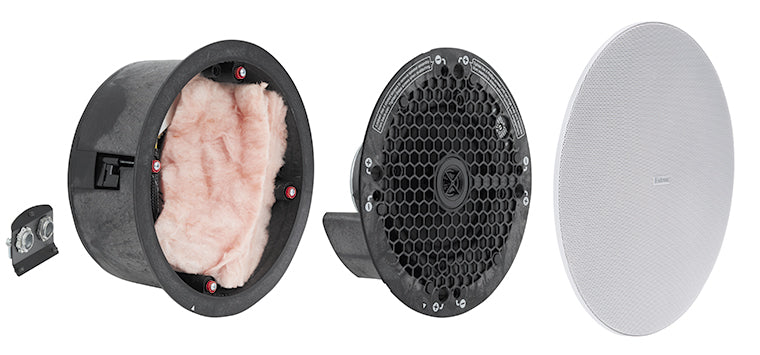

Standard-depth ceiling speakers do not always fit above a suspended ceiling once ductwork, conduit and lighting are accounted for. The SF 26CT LP uses the same 6.5 in polypropylene woofer and 0.75 in PEI dome tweeter as the SF 26CT but fits it into a composite back can just 4.72 in deep, so it drops into plenums that would otherwise force a different speaker choice. The rotary switch still selects between 70V taps, 100V taps, or direct 8 ohm, and the enclosure carries the same UL 2043 plenum rating.
Key Capabilities
- 85 Hz to 20 kHz frequency range (-10 dB, half space), 95° conical coverage.
- 65 W rms pink noise / 130 W rms continuous program per speaker.
- Only 4.72 in deep overall - fits shallow plenums standard back cans can't.
- Rotary-selectable 70V taps (8-64 W), 100V taps (16-64 W), or direct 8 ohm.

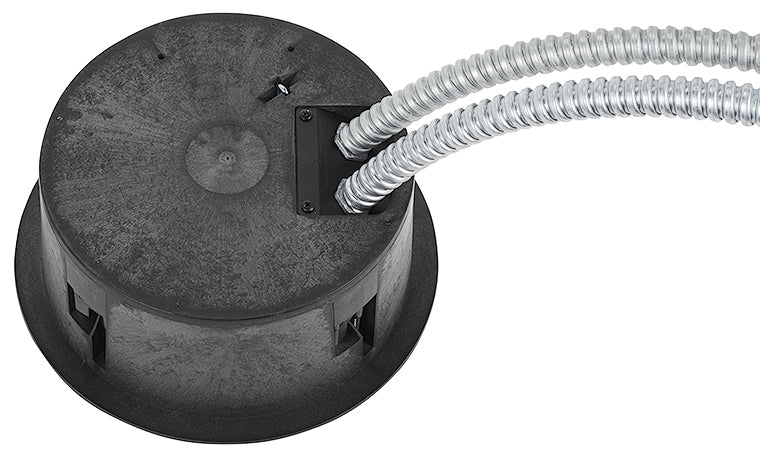

- UL 2043 and UL 1480 listed composite back can for plenum installs.
- 9.3 in cutout, 8.6 lbs each, ships as a matched pair.
Where It Is Used
Conference rooms, classrooms and retrofit projects where plenum depth is restricted and a standard-depth ceiling speaker will not clear existing ductwork or structure.
Specifications at a Glance
- Enclosure: 4.72 in H x 10.64 in diameter, 9.3 in cutout
- Input: (1) 5 mm captive screw connector, 4-pole, with loop-through
- Nominal impedance: 8 ohms per speaker; sensitivity 88 dB SPL
- Included: V-rails, C-rings, cutout template, mounting hardware
- Warranty: 5 years parts and labor
Frequently asked questions about the Extron SF 26CT LP 6.5 in Low-Profile Ceiling Speaker Pair
Does Ampronix sell the Extron SF 26CT LP 6.5 in Low-Profile Ceiling Speaker Pair?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SF 26CT LP 6.5 in Low-Profile Ceiling Speaker Pair (60-1881-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SF 26CT LP 6.5 in Low-Profile Ceiling Speaker Pair?
Yes. Ampronix provides sales, replacement and exchange for the Extron SF 26CT LP 6.5 in Low-Profile Ceiling Speaker Pair. Call Ampronix for a quote.
Is the Extron SF 26CT LP 6.5 in Low-Profile Ceiling Speaker Pair listed under other names?
Yes. The Extron SF 26CT LP 6.5 in Low-Profile Ceiling Speaker Pair is also referenced as Extron SF26CTLP, SF-26CT-LP, part number 60188103.
What are the key features of the Extron SF 26CT LP 6.5 in Low-Profile Ceiling Speaker Pair?
Key points: 85 Hz to 20 kHz frequency range (-10 dB, half space), 95° conical coverage; 65 W rms pink noise / 130 W rms continuous program per speaker; Only 4.72 in deep overall - fits shallow plenums standard back cans can't; Rotary-selectable 70V taps (8-64 W), 100V taps (16-64 W), or direct 8 ohm. Call Ampronix to confirm details for your application.
Also referenced as Extron SF26CTLP, SF-26CT-LP, part number 60188103.
