Extron SF 10C SUB & XPA U 2002 SB Package 42-289-03

Details

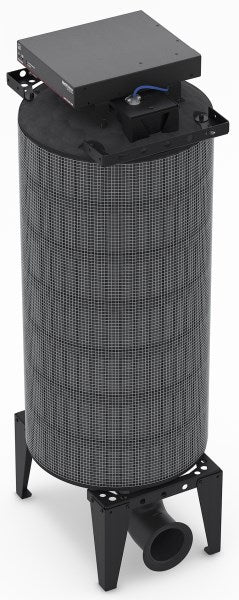

Extron SF 10C SUB & XPA U 2002 SB Package (part number 42-289-03) — the SF 10C SUB in-ceiling subwoofer bundled with an XPA Ultra XPA U 2002 SB bridgeable amplifier.

What distinguishes this bundle is the amplifier's rear-panel rotary switch. One position gives two 200 W channels into 8 or 4 ohms; another bridges them into a single 400 W channel at 8 or 16 ohms; another bridges into 70 V or 100 V distribution. That means the same box can drive the subwoofer alongside a low-impedance pair today and be reconfigured for a distributed line later without being replaced. It needs no empty rack space above it for ventilation.

Key Capabilities

SF 10C SUB: 10 in driver, 25 Hz to 160 Hz, 8 ohms nominal, 400 W rms pink noise.
Selectable amplifier modes: two 200 W channels at 8 or 4 ohms, or one bridged 400 W channel.
Bridged output drives 8 ohm, 16 ohm, 70 V or 100 V loads.
Fast wake from standby: returns to full power in under 100 milliseconds on signal detection.
Fanless convection cooling; half-rack 1U aluminum enclosure.
Amplifier is UL rated for use in plenum airspaces, meeting UL 2043 for heat and smoke release.

Where It Is Used

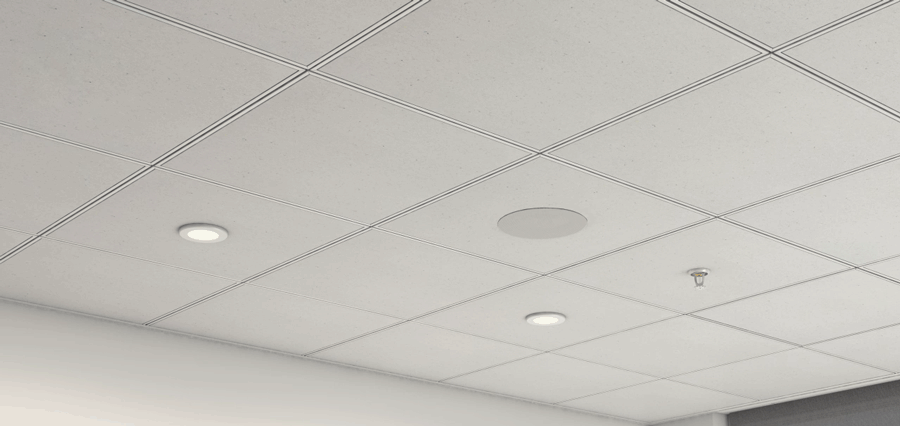

Rooms where the amplification requirement may change: multipurpose halls, education spaces, hospitality venues and buildings mixing low-impedance rooms with 70 V or 100 V distributed zones. The compact rack footprint also helps in credenzas and small equipment closets.

Specifications at a Glance

Package contents: SF 10C SUB in-ceiling subwoofer and XPA U 2002 SB amplifier
Subwoofer maximum SPL at 1 m: 101 dB mid-ceiling, 113 dB corner loaded
Subwoofer weight: 38.0 lbs (17.2 kg); ceiling cutout 7.6 in diameter
Amplifier weight: 3.4 lbs (1.5 kg); idle power 6.0 W, standby under 1 W
Subwoofer warranty: 5 years parts and labor; amplifier: 3 years parts and labor, 7-year Everlast power supply warranty

Also referenced as Extron SF10CSUB XPAU2002SB, SF-10C-SUB-XPA-U-2002-SB, part number 4228903.

Specifications

Part Number: 42-289-03

Manufacturer: Extron

Model: SF 10C SUB & XPA U 2002 SB Package

Condition: New

Package Contents: SF 10C SUB in-ceiling subwoofer and XPA U 2002 SB bridgeable amplifier

Subwoofer Speaker Type: In-ceiling subwoofer

Subwoofer Frequency Range: 25 Hz to 160 Hz, -10 dB, half space (per IEC 60268-5)

Subwoofer Power Capacity: 400 W (rms) continuous pink noise (per IEC 60268-5); 800 W (rms) continuous program

Subwoofer Rated Maximum Input Voltage (MIV): 40.3 V (203 W at 8 ohms) (per AES2-2012)

Subwoofer Maximum SPL (1 m, by loading): Corner loading (π/2) 113 dB (117 dB linear); Wall/ceiling or wall/floor junction (π) 107 dB (111 dB linear); Mid-ceiling (2π) 101 dB (105 dB linear); Full space (4π) 95 dB (99 dB linear)

Subwoofer Nominal Sensitivity (1 W/1 m, by loading): Corner loading (π/2) 96 dB SPL; Wall/ceiling or wall/floor junction (π) 90 dB SPL; Mid-ceiling (2π) 84 dB SPL; Full space (4π) 78 dB SPL

Subwoofer Nominal Impedance: 8 ohms

Subwoofer Driver: (1) 10" (254 mm) paper cone with waterproof coating

Subwoofer Input Connector: (1) 5 mm captive screw connector, 4-pole, for double wiring

Subwoofer Enclosure Type: Plenum rated, fire resistant (UL 94V-0) composite with steel outer mesh and metal grille

Subwoofer Enclosure Dimensions: Without port tube: 15.16" H x 14.23" W x 34.21" L. With port tube: 15.83" H x 14.23" W x 39.36" L

Subwoofer Cutout Dimensions: 7.6" (193 mm) diameter (for the grille adapter kit)

Subwoofer Mounting: Mounts horizontally in the ceiling (standard, included parts) or vertically on the floor (optional SMK F SF 10C Plus kit); unistrut mounting holes 0.5" diameter, 1.875" apart on center

Subwoofer Mounting Height (Optional Floor Kit): Port on top 44.77"; port on bottom 40.35" from bottom of mounting feet; port on side 15.77" from bottom of enclosure

Subwoofer Horizontal Mounting Height: 15.97" (406 mm) nominal, bottom of ceiling tile to top of unit

Subwoofer Product Weight: 38.0 lbs (17.2 kg); grille assembly 0.3 lbs (0.1 kg)

Subwoofer Included Accessories: Cutout template, setup guide, grille assembly kit, cable clamps, mounting cables (aircraft cables), isolation grommets, eye bolts

Subwoofer Regulatory Compliance: CE, RoHS, UL 1480A, UL 2043, WEEE

Subwoofer Warranty: 5 years parts and labor

Amplifier Model: XPA U 2002 SB

Amplifier Type: Class D, bridgeable amplifier with CDRS (Class D Ripple Suppression)

Amplifier Output Power: Stereo mode 200 W per channel at 4 or 8 ohms; bridged mono mode 400 W at 8 or 16 ohms (low impedance) or 70V/100V (high impedance)

Amplifier Frequency Response: 20 Hz to 20 kHz, ±1 dB, at 8 ohms/70V/100V

Amplifier Audio Performance: 100 dB S/N (20 Hz-20 kHz, unweighted); 0.1% THD @ 1 kHz, 3 dB below clipping

Amplifier Inputs: 2 balanced/unbalanced, (1) 5-pin 3.5 mm captive connector

Amplifier Outputs: (1) 4-pole 5 mm screw lock captive screw connector

Amplifier Fast Wake: Returns to full power in under 100 ms upon signal detection while in standby

Amplifier Power Consumption: 6.0 W idle; under 1 W standby

Amplifier Cooling: Convection, no vents

Amplifier Enclosure: Metal (aluminum), half-rack 1U; 1.7" H x 8.7" W x 10.5" D

Amplifier Product Weight: 3.4 lbs (1.5 kg)

Amplifier Product Warranty: 3 years parts and labor

Amplifier Everlast Power Supply Warranty: 7 years parts and labor

Amplifier Regulatory Compliance: CE, c-UL, UL, CCC, C-tick, Ecofficient Level 3, FCC Class B, RoHS, WEEE; UL rated for use in plenum airspaces, meets UL 2043 for heat and smoke release

Diagram

Resources

Brochure | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB (sf_10c_sub_revA2.pdf)

Brochure | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB (SF-10C-SUB_BR_A4_FR_RevA2.pdf)

Brochure | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB (SF-10C-SUB_BR_A4_IT_RevA2.pdf)

Brochure | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB (SF-10C-SUB_BR_A4_SP_RevA2.pdf)

Brochure | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB (SF-10C-SUB_BR_A4_GE_RevA2.pdf)

Manual | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | Cleaning Instruction Card

Manual | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB Setup Guide

Manual | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB Subwoofer Installation Guide

Manual | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB User Guide

Specifications | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB

Panel Drawing | SF 10C SUB & XPA U 2002 SB Package 42-289-03 | SF 10C SUB
