Extron SF 10C SUB & XPA 4002 Package 42-289-01

Details

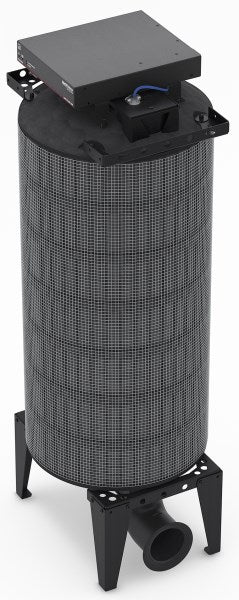

Extron SF 10C SUB & XPA 4002 Package (part number 42-289-01) — the SF 10C SUB in-ceiling subwoofer supplied together with an XTRA Series XPA 4002 two channel amplifier.

Of the amplifiers Extron bundles with this subwoofer, the XPA 4002 is the one chosen for raw low-frequency output. Bridged, it produces a single 800 W channel into 8 ohms — the same figure Extron quotes for the subwoofer's continuous program handling, so the pairing is deliberate rather than approximate. Left unbridged it gives two 400 W channels into 4 ohms or 200 W into 8 ohms, useful when one subwoofer per side is planned. The amplifier occupies a single rack unit and runs without a fan.

Key Capabilities

SF 10C SUB: 25 Hz to 160 Hz from a 10 in waterproof-coated paper cone driver.
XPA 4002: two channels at 400 W into 4 ohms or 200 W into 8 ohms.
Bridged mode produces one 800 W channel into 8 ohms.
1U full rack width amplifier, convection cooled, 9 lbs (4 kg).
100 dB signal-to-noise ratio, 0.1% THD+N, patented CDRS ripple suppression.
Ecofficient Level 3: 30 W or less at idle, under 1 W in standby.

Where It Is Used

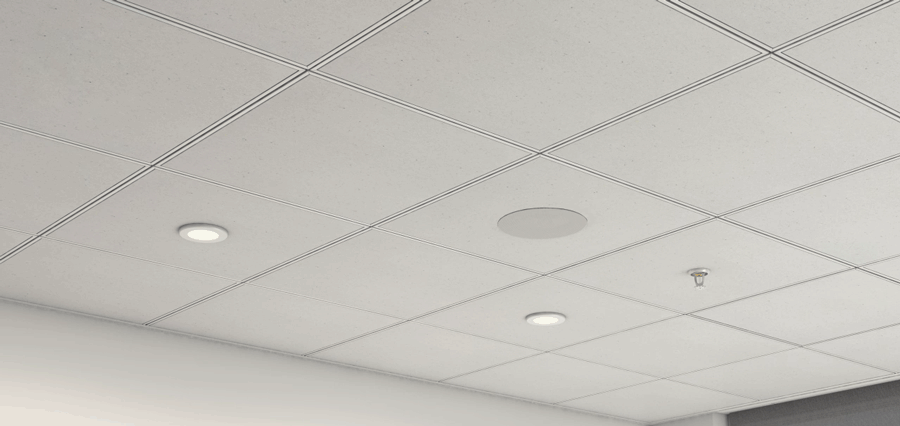

Presentation theatres, worship spaces, boardrooms and fitness areas where the low end has to carry real energy and the subwoofer must remain concealed above the ceiling. The bridged 800 W mode suits single-subwoofer rooms; two-channel operation suits stereo low-frequency layouts.

Specifications at a Glance

Package contents: SF 10C SUB in-ceiling subwoofer and XPA 4002 amplifier
Subwoofer: 8 ohms nominal, 400 W rms continuous pink noise
Subwoofer weight: 38.0 lbs (17.2 kg); ceiling cutout 7.6 in diameter
Amplifier thermal dissipation: 54 W, 185 BTU/hr under full load
Subwoofer warranty: 5 years parts and labor

Also referenced as Extron SF10CSUB XPA4002, SF-10C-SUB-XPA-4002, part number 4228901.

Specifications

Part Number: 42-289-01

Manufacturer: Extron

Model: SF 10C SUB & XPA 4002 Package

Condition: New

Package Contents: SF 10C SUB in-ceiling subwoofer and XPA 4002 two channel amplifier

Subwoofer Speaker Type: In-ceiling subwoofer

Subwoofer Frequency Range: 25 Hz to 160 Hz, -10 dB, half space (per IEC 60268-5)

Subwoofer Power Capacity: 400 W (rms) continuous pink noise (per IEC 60268-5); 800 W (rms) continuous program

Subwoofer Rated Maximum Input Voltage (MIV): 40.3 V (203 W at 8 ohms) (per AES2-2012)

Subwoofer Maximum SPL (1 m, by loading): Corner loading (π/2) 113 dB (117 dB linear); Wall/ceiling or wall/floor junction (π) 107 dB (111 dB linear); Mid-ceiling (2π) 101 dB (105 dB linear); Full space (4π) 95 dB (99 dB linear)

Subwoofer Nominal Sensitivity (1 W/1 m, by loading): Corner loading (π/2) 96 dB SPL; Wall/ceiling or wall/floor junction (π) 90 dB SPL; Mid-ceiling (2π) 84 dB SPL; Full space (4π) 78 dB SPL

Subwoofer Nominal Impedance: 8 ohms

Subwoofer Driver: (1) 10" (254 mm) paper cone with waterproof coating

Subwoofer Input Connector: (1) 5 mm captive screw connector, 4-pole, for double wiring

Subwoofer Enclosure Type: Plenum rated, fire resistant (UL 94V-0) composite with steel outer mesh and metal grille

Subwoofer Enclosure Dimensions: Without port tube: 15.16" H x 14.23" W x 34.21" L. With port tube: 15.83" H x 14.23" W x 39.36" L

Subwoofer Cutout Dimensions: 7.6" (193 mm) diameter (for the grille adapter kit)

Subwoofer Mounting: Mounts horizontally in the ceiling (standard, included parts) or vertically on the floor (optional SMK F SF 10C Plus kit); unistrut mounting holes 0.5" diameter, 1.875" apart on center

Subwoofer Mounting Height (Optional Floor Kit): Port on top 44.77"; port on bottom 40.35" from bottom of mounting feet; port on side 15.77" from bottom of enclosure

Subwoofer Horizontal Mounting Height: 15.97" (406 mm) nominal, bottom of ceiling tile to top of unit

Subwoofer Product Weight: 38.0 lbs (17.2 kg); grille assembly 0.3 lbs (0.1 kg)

Subwoofer Included Accessories: Cutout template, setup guide, grille assembly kit, cable clamps, mounting cables (aircraft cables), isolation grommets, eye bolts

Subwoofer Regulatory Compliance: CE, RoHS, UL 1480A, UL 2043, WEEE

Subwoofer Warranty: 5 years parts and labor

Amplifier Model: XPA 4002

Amplifier Type: Class D with CDRS (Class D Ripple Suppression)

Amplifier Output Power: 200 W per channel at 8 ohms; 400 W per channel at 4 ohms; 800 W bridged mono at 8 ohms (1 kHz, 0.05% THD)

Amplifier Frequency Response: 20 Hz to 20 kHz, ±1 dB

Amplifier Audio Performance: 100 dB S/N (20 Hz-20 kHz, unweighted); 0.1% THD+N, 20 Hz to 20 kHz at 8 ohms, 3 dB below clipping

Amplifier Inputs: 2 balanced/unbalanced, (2) 3.5 mm captive screw connectors, 3 pole

Amplifier Outputs: (1) 5 mm screw lock captive screw connector, 4 pole

Amplifier Power Consumption: 28.1 W idle; under 1 W standby

Amplifier Cooling: Convection, no vents, heat sinks on the sides

Amplifier Enclosure: Metal, 1U full rack wide; 1.7" H x 17.4" W x 12.0" D (19.0" W with rack ears)

Amplifier Product Weight: 9.2 lbs (4.2 kg)

Amplifier Product Warranty: 3 years parts and labor

Amplifier Everlast Power Supply Warranty: 7 years parts and labor

Amplifier Regulatory Compliance: CE, C-tick, UL, c-UL, FCC, Ecofficient Level 3, VCCI, RoHS, WEEE

Diagram

Resources

Brochure | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB (sf_10c_sub_revA2.pdf)

Brochure | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB (SF-10C-SUB_BR_A4_FR_RevA2.pdf)

Brochure | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB (SF-10C-SUB_BR_A4_IT_RevA2.pdf)

Brochure | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB (SF-10C-SUB_BR_A4_SP_RevA2.pdf)

Brochure | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB (SF-10C-SUB_BR_A4_GE_RevA2.pdf)

Manual | SF 10C SUB & XPA 4002 Package 42-289-01 | Cleaning Instruction Card

Manual | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB Setup Guide

Manual | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB Subwoofer Installation Guide

Manual | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB User Guide

Specifications | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB

Panel Drawing | SF 10C SUB & XPA 4002 Package 42-289-01 | SF 10C SUB

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron SF 10C SUB & XPA 4002 Package Subwoofer Amp 42-289-01

Name: Extron SF 10C SUB & XPA 4002 Package Subwoofer Amp 42-289-01
Brand: Extron
SKU: EXTRON-SF10CSUBXPA4002PACKAGE-4228901
Availability: InStock

Manufacturer: Extron

Type: Speakers

Extron SF 10C SUB & XPA 4002 Subwoofer Package

• Bundle: SF 10C SUB subwoofer plus an XPA 4002 two channel amplifier
• Bridged mode delivers 800 W into 8 ohms, matching the subwoofer's continuous program rating
• Unbridged: two 400 W channels at 4 ohms or 200 W at 8 ohms
• 1U full rack width amplifier, convection cooled, weighs 9.2 lbs (4.2 kg)
• 100 dB signal-to-noise ratio with 0.1% THD+N
• Subwoofer reaches 25 Hz to 160 Hz from a 10 inch waterproof-coated driver
