Extron SF 10C SUB & XPA 2004 Package 42-289-02

Details

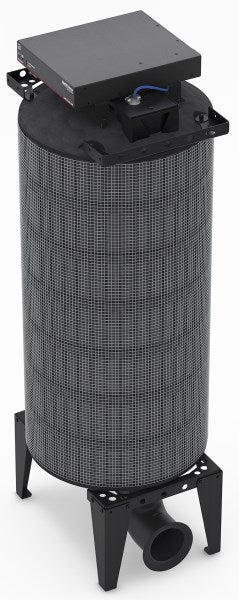

Extron SF 10C SUB & XPA 2004 Package (part number 42-289-02) — Extron's discount bundle of the SF 10C SUB in-ceiling subwoofer with an XTRA Series XPA 2004 four channel amplifier.

Buying the subwoofer and its amplifier as one part number saves a line on the order and removes the guesswork about matching them. The XPA 2004 brings four channels rather than two, so the same 1U box can drive the subwoofer and still have channels spare for satellite ceiling speakers or a second zone. Rated at 200 W per channel into 4 ohms, or 100 W into 8 ohms, it also bridges to two 400 W channels at 8 ohms when more is wanted on the low end. Meanwhile the subwoofer hides above the ceiling grid, reaching down to 25 Hz.

Key Capabilities

SF 10C SUB: 10 in driver, 25 Hz to 160 Hz, 400 W pink noise and 800 W program at 8 ohms.
XPA 2004: four channels at 200 W into 4 ohms or 100 W into 8 ohms, bridging to two 400 W channels at 8 ohms.
Spare amplifier channels available for satellite ceiling speakers or a second zone.
Amplifier is 1U, full rack width, convection cooled and weighs 9 lbs (4 kg).
100 dB signal-to-noise with 0.1% THD+N, and patented CDRS Class D ripple suppression.
Ecofficient Level 3: 28 W idle, under 1 W in standby, auto power-down after 25 minutes.

Where It Is Used

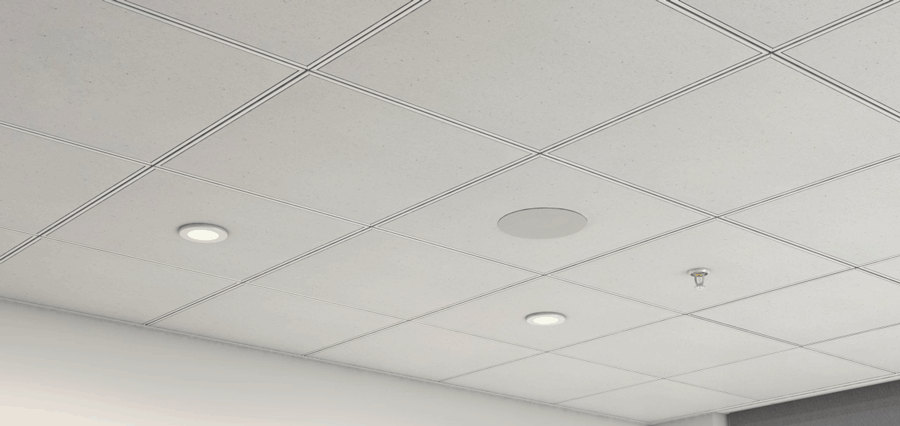

Multipurpose rooms, training suites, houses of worship and retail spaces that want low-frequency extension plus amplification for the main ceiling speakers from one rack unit. Suits designs where the subwoofer must disappear into the ceiling and rack space is scarce.

Specifications at a Glance

Package contents: SF 10C SUB in-ceiling subwoofer and XPA 2004 amplifier
Subwoofer enclosure: 15.16 in H x 14.23 in W x 34.21 in L without port tube
Subwoofer weight: 38.0 lbs (17.2 kg); ceiling cutout 7.6 in diameter
Amplifier thermal dissipation: 45 W, 153 BTU/hr at a full 4 ohm load
Subwoofer warranty: 5 years parts and labor

Also referenced as Extron SF10CSUB XPA2004, SF-10C-SUB-XPA-2004, part number 4228902.

Specifications

Part Number: 42-289-02

Manufacturer: Extron

Model: SF 10C SUB & XPA 2004 Package

Condition: New

Package Contents: SF 10C SUB in-ceiling subwoofer and XPA 2004 four channel amplifier

Subwoofer Speaker Type: In-ceiling subwoofer

Subwoofer Frequency Range: 25 Hz to 160 Hz, -10 dB, half space (per IEC 60268-5)

Subwoofer Power Capacity: 400 W (rms) continuous pink noise (per IEC 60268-5); 800 W (rms) continuous program

Subwoofer Rated Maximum Input Voltage (MIV): 40.3 V (203 W at 8 ohms) (per AES2-2012)

Subwoofer Maximum SPL (1 m, by loading): Corner loading (π/2) 113 dB (117 dB linear); Wall/ceiling or wall/floor junction (π) 107 dB (111 dB linear); Mid-ceiling (2π) 101 dB (105 dB linear); Full space (4π) 95 dB (99 dB linear)

Subwoofer Nominal Sensitivity (1 W/1 m, by loading): Corner loading (π/2) 96 dB SPL; Wall/ceiling or wall/floor junction (π) 90 dB SPL; Mid-ceiling (2π) 84 dB SPL; Full space (4π) 78 dB SPL

Subwoofer Nominal Impedance: 8 ohms

Subwoofer Driver: (1) 10" (254 mm) paper cone with waterproof coating

Subwoofer Input Connector: (1) 5 mm captive screw connector, 4-pole, for double wiring

Subwoofer Enclosure Type: Plenum rated, fire resistant (UL 94V-0) composite with steel outer mesh and metal grille

Subwoofer Enclosure Dimensions: Without port tube: 15.16" H x 14.23" W x 34.21" L. With port tube: 15.83" H x 14.23" W x 39.36" L

Subwoofer Cutout Dimensions: 7.6" (193 mm) diameter (for the grille adapter kit)

Subwoofer Mounting: Mounts horizontally in the ceiling (standard, included parts) or vertically on the floor (optional SMK F SF 10C Plus kit); unistrut mounting holes 0.5" diameter, 1.875" apart on center

Subwoofer Mounting Height (Optional Floor Kit): Port on top 44.77"; port on bottom 40.35" from bottom of mounting feet; port on side 15.77" from bottom of enclosure

Subwoofer Horizontal Mounting Height: 15.97" (406 mm) nominal, bottom of ceiling tile to top of unit

Subwoofer Product Weight: 38.0 lbs (17.2 kg); grille assembly 0.3 lbs (0.1 kg)

Subwoofer Included Accessories: Cutout template, setup guide, grille assembly kit, cable clamps, mounting cables (aircraft cables), isolation grommets, eye bolts

Subwoofer Regulatory Compliance: CE, RoHS, UL 1480A, UL 2043, WEEE

Subwoofer Warranty: 5 years parts and labor

Amplifier Model: XPA 2004

Amplifier Type: Class D, four channel amplifier with CDRS (Class D Ripple Suppression)

Amplifier Output Power: 4 x 200 W at 4 ohms; 4 x 100 W at 8 ohms; 2 x 400 W at 8 ohms bridged (800 W rms total)

Amplifier Audio Performance: 100 dB signal-to-noise ratio, 0.1% THD+N

Amplifier Power Consumption: 28 W idle; under 1 W standby; auto power-down after 25 minutes of inactivity (Ecofficient Level 3)

Amplifier Thermal Dissipation: 45 W / 153 BTU/hr at full 4 ohm load

Amplifier Cooling: Convection, fanless; ultra-low inrush current, no power sequencing required

Amplifier Enclosure: 1U, full rack width

Amplifier Product Weight: 9 lbs (4 kg)

Diagram

Resources

Brochure | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB (sf_10c_sub_revA2.pdf)

Brochure | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB (SF-10C-SUB_BR_A4_FR_RevA2.pdf)

Brochure | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB (SF-10C-SUB_BR_A4_IT_RevA2.pdf)

Brochure | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB (SF-10C-SUB_BR_A4_SP_RevA2.pdf)

Brochure | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB (SF-10C-SUB_BR_A4_GE_RevA2.pdf)

Manual | SF 10C SUB & XPA 2004 Package 42-289-02 | Cleaning Instruction Card

Manual | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB Setup Guide

Manual | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB Subwoofer Installation Guide

Manual | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB User Guide

Specifications | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB

Panel Drawing | SF 10C SUB & XPA 2004 Package 42-289-02 | SF 10C SUB

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron SF 10C SUB & XPA 2004 Package Subwoofer Amp 42-289-02

Name: Extron SF 10C SUB & XPA 2004 Package Subwoofer Amp 42-289-02
Brand: Extron
SKU: EXTRON-SF10CSUBXPA2004PACKAGE-4228902
Availability: InStock

Manufacturer: Extron

Type: Speakers

Extron SF 10C SUB & XPA 2004 Subwoofer Package

• Discount package: SF 10C SUB subwoofer plus an XPA 2004 amplifier
• XPA 2004 gives four channels of 200 W at 4 ohms or 100 W at 8 ohms
• Bridged mode on the amp yields two 400 W channels into 8 ohms
• Spare amp channels left over for satellite ceiling speakers
• Subwoofer covers 25 Hz to 160 Hz with 800 W program handling
• 1U convection cooled amplifier weighing only 9 lbs (4 kg)
• 100 dB signal-to-noise ratio with 0.1% THD+N
• Plenum rated subwoofer hides above the ceiling grid
