Details

Extron SF 10C SUB & NetPA U 8001 SUB Package (part number 42-289-04) — a matched in-ceiling subwoofer and Dante amplifier bundle sold as one package.

The package pairs the Extron SF 10C SUB, a 10-inch, 800-watt program-rated in-ceiling subwoofer, with the NetPA U 8001 SUB, a mono 800-watt Dante amplifier sized to drive it directly at 8 ohms. The subwoofer's 4th-order bandpass composite enclosure suspends above the ceiling grid on the included steel aircraft cables, staying physically isolated from the grid to prevent rattle while extending system bass response down to 25 Hz. Because the amplifier is purpose-matched to the driver's impedance and power handling, integrators avoid the guesswork of pairing a separate subwoofer and amp.

Key Capabilities

10" driver rated for 400 W continuous pink noise / 800 W continuous program
Frequency extension down to 25 Hz, -10 dB, half space
Matched NetPA U 8001 SUB amplifier delivers up to 800 W into 8 ohms via Dante/AES-67
Suspension mounting isolates the subwoofer from the ceiling grid to prevent rattle
Plenum-rated composite speaker enclosure and half-rack 1U amplifier chassis
Includes mounting cables, isolation grommets, and a paintable ceiling grille

Where It Is Used

This package fits high-performance audio and music-playback installations — corporate lobbies, houses of worship, and premium conference or presentation spaces — where a ceiling speaker system needs low-frequency extension without a visible subwoofer enclosure or a mismatched amplifier.

Specifications at a Glance

Subwoofer: 10" driver, 25-160 Hz, 800 W program, 8 ohms, plenum rated
Amplifier: NetPA U 8001 SUB, up to 800 W @ 8 ohms, Dante/AES-67 network input
Subwoofer weight: 38.0 lbs (17.2 kg); amplifier weight: 4.2 lbs (1.9 kg)
Warranty: subwoofer 5 years; amplifier 3 years plus Everlast PSU 7 years

Also referenced as Extron SF10CSUBNetPAU8001SUBPackage, SF-10C-SUB-NetPA-U-8001-SUB-Package, part number 4228904.

Specifications

Part Number: 42-289-04

Manufacturer: Extron

Model: SF 10C SUB & NetPA U 8001 SUB Package

Condition: New

— SF 10C SUB Subwoofer Speaker (Part 60-1610-01) —

Driver: (1) 10" (254 mm) paper cone with waterproof coating, tuned port, 4th-order bandpass enclosure

Frequency Range: 25 Hz to 160 Hz, -10 dB, half space (per IEC 60268-5)

Power Capacity: 400 W (rms) continuous pink noise; 800 W (rms) continuous program

Nominal Impedance: 8 ohms

Maximum SPL (Corner Loading): 113 dB @ 1 m (max input voltage); 117 dB @ 1 m (linear)

Maximum SPL (Wall/Ceiling or Wall/Floor Junction): 107 dB @ 1 m (max input voltage); 111 dB @ 1 m (linear)

Maximum SPL (Mid-Ceiling): 101 dB @ 1 m (max input voltage); 105 dB @ 1 m (linear)

Maximum SPL (Full Space): 95 dB @ 1 m (max input voltage); 99 dB @ 1 m (linear)

Nominal Sensitivity (Corner Loading): 96 dB SPL, 1 W/1 m

Speaker Input Connector: (1) 5 mm captive screw connector, 4-pole, for double wiring

Speaker Mounting: Horizontal ceiling suspension (standard, included parts) or vertical floor mount with optional SMK F SF 10C Plus kit; unistrut holes 0.5" dia, 1.875" apart

Speaker Enclosure: Plenum-rated, fire-resistant (UL 94V-0) composite with steel outer mesh and metal grille

Speaker Enclosure Dimensions (without port tube): 15.16" H x 14.23" W x 34.21" L (385 x 362 x 869 mm)

Speaker Enclosure Dimensions (with port tube): 15.83" H x 14.23" W x 39.36" L (402 x 362 x 1000 mm)

Ceiling Cutout Dimensions: 7.6" (193 mm) diameter, for the grille adapter kit

Horizontal Mounting Height: 15.97" (406 mm) nominal, ceiling tile to top of unit

Speaker Weight: 38.0 lbs (17.2 kg); grille assembly 0.3 lbs (0.1 kg)

Speaker Regulatory Compliance: CE, RoHS, UL 1480A, UL 2043, WEEE

Speaker Warranty: 5 years parts and labor

— NetPA U 8001 SUB Amplifier (Part 60-1866-01) —

Amplifier Type: Class D

Output Power (8 ohms): 800 W, 100 Hz, <0.1% THD

Output Power (4 ohms): 650 W, 100 Hz, <0.1% THD

Output Power (2 ohms): 325 W, 100 Hz, <0.1% THD

Amplifier Load Impedance: 2 ohms minimum

Amplifier Speaker Output: 1 channel, 2, 4, or 8 ohms; (1) 5 mm captive screw connector, 2-pole (22-12 AWG)

Audio Inputs: 2 mono line, balanced/unbalanced; (1) 3.5 mm captive screw connector, 5-pole

Network Audio: Dante/AES-67, software selectable, 1 RJ-45 port at 100 Mbps, 2 Rx / 2 Tx

Network Audio Format: 24-bit uncompressed, 44.1/48/88.2/96 kHz sampling

Control Port: (1) 3.5 mm captive screw connector, 5-pole; contact-closure standby

Serial Control: 1 RS-232 port, 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 USB 2.0 Mini-B, high speed

Ethernet Control: 1 RJ-45, 10/100 Base-T, Extron SIS

Protection: Clip limiter, thermal, short circuit, DC output

Amplifier Power Supply: Internal, 100-240 VAC, 50-60 Hz, 0.5 A

Amplifier Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Amplifier Cooling: Convection, no vents

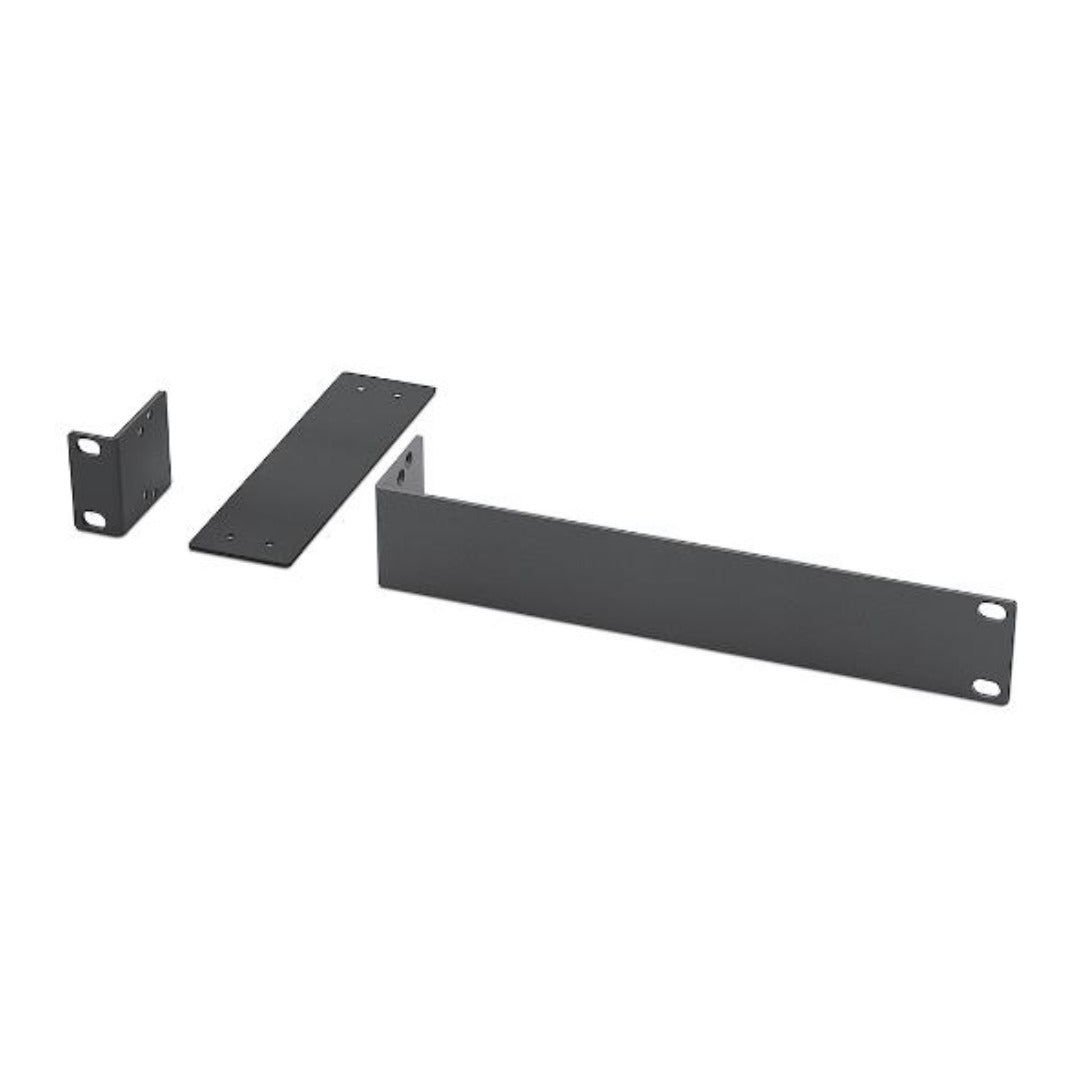

Amplifier Mounting: Rack mountable with included brackets or optional 1U rack shelf; optional subwoofer mounting hardware included with SF 10C SUB

Amplifier Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 10.5" D (43 x 221 x 267 mm)

Amplifier Weight: 4.2 lbs (1.9 kg)

Amplifier Regulatory Compliance: CE, C-tick, c-UL, KC, FCC Class B, ICES, VCCI Class B, CISPR 22 Class B, UL 2043, Ecofficient Level 3, RoHS

Amplifier Product Warranty: 3 years parts and labor

Amplifier Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | Everlast Power Supplies

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA Ultra - Power Amplifiers (netPA-u-1002-1004-bro-revA1.pdf)

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | Alimentatori Everlast

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | Everlast 电源

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | Everlast-Netzteile

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | Fuentes de alimentación Everlast

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_GE_RevA.pdf)

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_SP_RevA.pdf)

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_FR_RevA.pdf)

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_RU_RevA.pdf)

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_IT_RevA.pdf)

Brochure | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | Sources d'alimentation Everlast

Manual | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | Cleaning Instruction Card

Manual | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA U 8001 SUB Setup Guide

Manual | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA U 8001 SUB User Guide

Specifications | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA U 8001 SUB

Panel Drawing | SF 10C SUB & NetPA U 8001 SUB Package 42-289-04 | NetPA U 8001 SUB
