Extron SF 10C SUB & NetPA U 2002 SB Package 42-289-05

Details

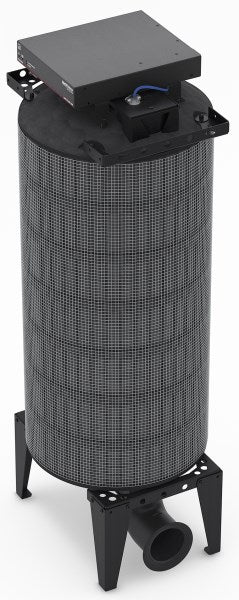

Extron SF 10C SUB & NetPA U 2002 SB Package (part number 42-289-05) — the SF 10C SUB in-ceiling subwoofer supplied with a NetPA Ultra NetPA U 2002 SB networked amplifier.

This is the bundle for systems where audio arrives over the network rather than on analogue cable. The NetPA U 2002 SB accepts Dante or AES67 streams, applies its own DSP, and drives the subwoofer directly. A 6x6 mix matrix sits ahead of the outputs with gain, filters, dynamics and delay, which matters for a subwoofer since time-aligning it to the ceiling speakers is usually the difference between tight bass and a smear. Four mic/line inputs and two line outputs are also available, usable either as Dante endpoints or as extra feeds into the DSP.

Key Capabilities

Dante and AES67 transport with Dante Domain Manager support for enterprise networks.
Onboard DSP with a 6x6 mix matrix, gain, filters, dynamics and delay.
Selectable output: two 200 W channels at 8 or 4 ohms, or one bridged 400 W channel.
Bridged channel drives 8 ohm, 16 ohm, 70 V or 100 V loads.
Four mic/line inputs and two line outputs usable as Dante endpoints.
Amplifier status is monitored across the Dante connection; RS-232 control is also provided.

Where It Is Used

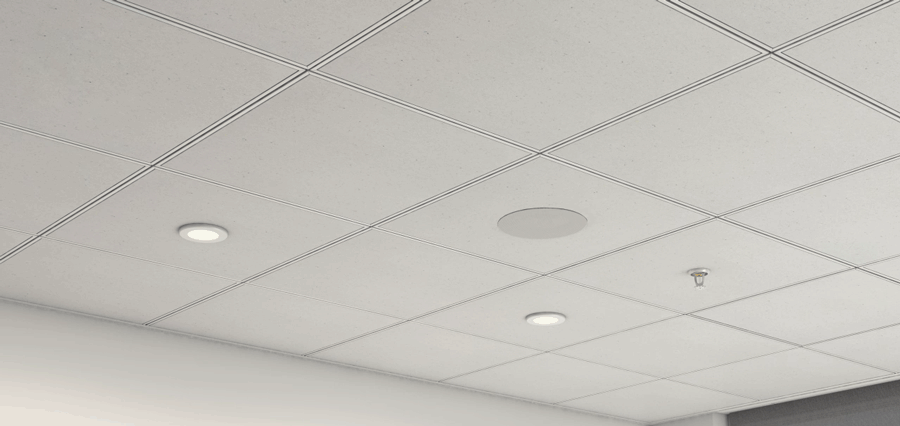

Networked audio installations on campuses, in corporate buildings and in venues running Dante throughout: lecture theatres, divisible rooms, worship spaces and hospitality areas. The subwoofer stays above the ceiling while the amplifier sits in a half-rack, convection-cooled enclosure in the rack.

Specifications at a Glance

Package contents: SF 10C SUB in-ceiling subwoofer and NetPA U 2002 SB amplifier
Subwoofer: 25 Hz to 160 Hz, 800 W rms continuous program, 8 ohms nominal
Subwoofer weight: 38.0 lbs (17.2 kg); ceiling cutout 7.6 in diameter
Amplifier standby draw: under 4 watts; InstaWake under 100 ms
Subwoofer warranty: 5 years parts and labor

Also referenced as Extron SF10CSUB NetPAU2002SB, SF-10C-SUB-NetPA-U-2002-SB, part number 4228905.

Specifications

Part Number: 42-289-05

Manufacturer: Extron

Model: SF 10C SUB & NetPA U 2002 SB Package

Condition: New

Package Contents: SF 10C SUB in-ceiling subwoofer and NetPA U 2002 SB networked amplifier

Subwoofer Speaker Type: In-ceiling subwoofer

Subwoofer Frequency Range: 25 Hz to 160 Hz, -10 dB, half space (per IEC 60268-5)

Subwoofer Power Capacity: 400 W (rms) continuous pink noise (per IEC 60268-5); 800 W (rms) continuous program

Subwoofer Rated Maximum Input Voltage (MIV): 40.3 V (203 W at 8 ohms) (per AES2-2012)

Subwoofer Maximum SPL (1 m, by loading): Corner loading (π/2) 113 dB (117 dB linear); Wall/ceiling or wall/floor junction (π) 107 dB (111 dB linear); Mid-ceiling (2π) 101 dB (105 dB linear); Full space (4π) 95 dB (99 dB linear)

Subwoofer Nominal Sensitivity (1 W/1 m, by loading): Corner loading (π/2) 96 dB SPL; Wall/ceiling or wall/floor junction (π) 90 dB SPL; Mid-ceiling (2π) 84 dB SPL; Full space (4π) 78 dB SPL

Subwoofer Nominal Impedance: 8 ohms

Subwoofer Driver: (1) 10" (254 mm) paper cone with waterproof coating

Subwoofer Input Connector: (1) 5 mm captive screw connector, 4-pole, for double wiring

Subwoofer Enclosure Type: Plenum rated, fire resistant (UL 94V-0) composite with steel outer mesh and metal grille

Subwoofer Enclosure Dimensions: Without port tube: 15.16" H x 14.23" W x 34.21" L. With port tube: 15.83" H x 14.23" W x 39.36" L

Subwoofer Cutout Dimensions: 7.6" (193 mm) diameter (for the grille adapter kit)

Subwoofer Mounting: Mounts horizontally in the ceiling (standard, included parts) or vertically on the floor (optional SMK F SF 10C Plus kit); unistrut mounting holes 0.5" diameter, 1.875" apart on center

Subwoofer Mounting Height (Optional Floor Kit): Port on top 44.77"; port on bottom 40.35" from bottom of mounting feet; port on side 15.77" from bottom of enclosure

Subwoofer Horizontal Mounting Height: 15.97" (406 mm) nominal, bottom of ceiling tile to top of unit

Subwoofer Product Weight: 38.0 lbs (17.2 kg); grille assembly 0.3 lbs (0.1 kg)

Subwoofer Included Accessories: Cutout template, setup guide, grille assembly kit, cable clamps, mounting cables (aircraft cables), isolation grommets, eye bolts

Subwoofer Regulatory Compliance: CE, RoHS, UL 1480A, UL 2043, WEEE

Subwoofer Warranty: 5 years parts and labor

Amplifier Model: NetPA U 2002 SB

Amplifier Type: Class D, Dante/AES-67 networked amplifier with onboard DSP

Amplifier Output Power: Stereo mode 200 W per channel at 4 or 8 ohms; bridged mono mode 400 W at 8 or 16 ohms (low impedance) or 70 V/100 V (high impedance)

Amplifier Audio Transport: Dante/AES-67, software selectable; 2 channels Rx / 2 channels Tx; 24-bit, up to 96 kHz; latency 1.0/2.0/5.0 ms selectable

Amplifier Inputs: 4 mono mic/line inputs, balanced/unbalanced

Amplifier Outputs: 2 mono line outputs

Amplifier DSP: 6x6 mix matrix with gain, filters, dynamics, and delay

Amplifier Control: RS-232, USB 2.0, Ethernet 10/100, Extron Simple Instruction Set (SIS)

Amplifier Standby Power: Under 4 W; returns to full power in under 100 ms upon signal detection

Amplifier Enclosure: Metal, convection cooled, half-rack 1U; 1.7" H x 8.7" W x 10.5" D

Amplifier Product Weight: 3.8 lbs (1.7 kg)

Amplifier Product Warranty: 3 years parts and labor

Amplifier Everlast Power Supply Warranty: 7 years parts and labor

Amplifier Regulatory Compliance: CE, C-tick, c-UL, KC, UL rated for use in plenum airspaces (meets UL 2043 for heat and smoke release)

Diagram

Resources

Brochure | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB (sf_10c_sub_revA2.pdf)

Brochure | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB (SF-10C-SUB_BR_A4_FR_RevA2.pdf)

Brochure | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB (SF-10C-SUB_BR_A4_IT_RevA2.pdf)

Brochure | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB (SF-10C-SUB_BR_A4_SP_RevA2.pdf)

Brochure | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB (SF-10C-SUB_BR_A4_GE_RevA2.pdf)

Manual | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | Cleaning Instruction Card

Manual | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB Setup Guide

Manual | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB Subwoofer Installation Guide

Manual | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB User Guide

Specifications | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB

Panel Drawing | SF 10C SUB & NetPA U 2002 SB Package 42-289-05 | SF 10C SUB

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron SF 10C SUB & NetPA U 2002 SB Package Kit 42-289-05

Name: Extron SF 10C SUB & NetPA U 2002 SB Package Kit 42-289-05
Brand: Extron
SKU: EXTRON-SF10CSUBNETPAU2002SBPACKAGE-4228905
Availability: InStock

Manufacturer: Extron

Type: Speakers

Extron SF 10C SUB & NetPA U 2002 SB Subwoofer Package

• Bundle: SF 10C SUB in-ceiling subwoofer plus a NetPA U 2002 SB Dante-networked amplifier
• Onboard DSP with 6x6 mix matrix for time-aligning the subwoofer to ceiling speakers
• Dante/AES-67 transport with Dante Domain Manager support
• Bridgeable output: two 200 W channels or one 400 W channel at 8/16 ohms or 70V/100V
• Subwoofer reaches 25 Hz with 800 W continuous program handling
• Amplifier fast-wakes from standby in under 100 ms and draws under 4 W idle
