Details

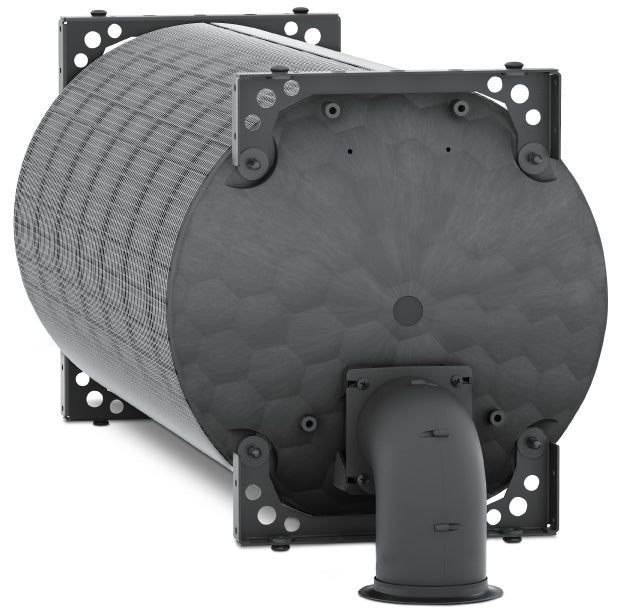

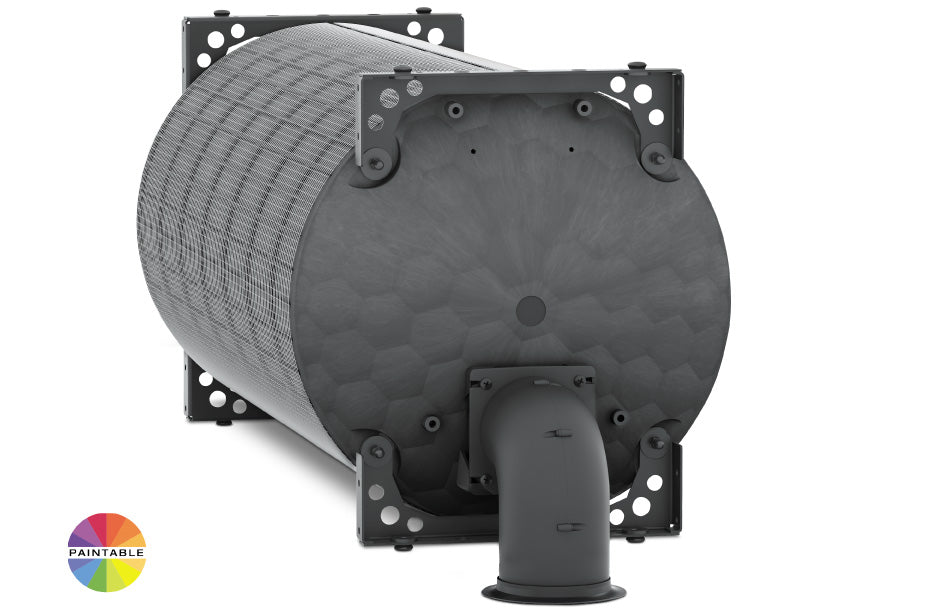

Extron SF 10C SUB (part number 60-1610-01) — a 10 in SoundField subwoofer that installs above a suspended ceiling and stays out of sight.

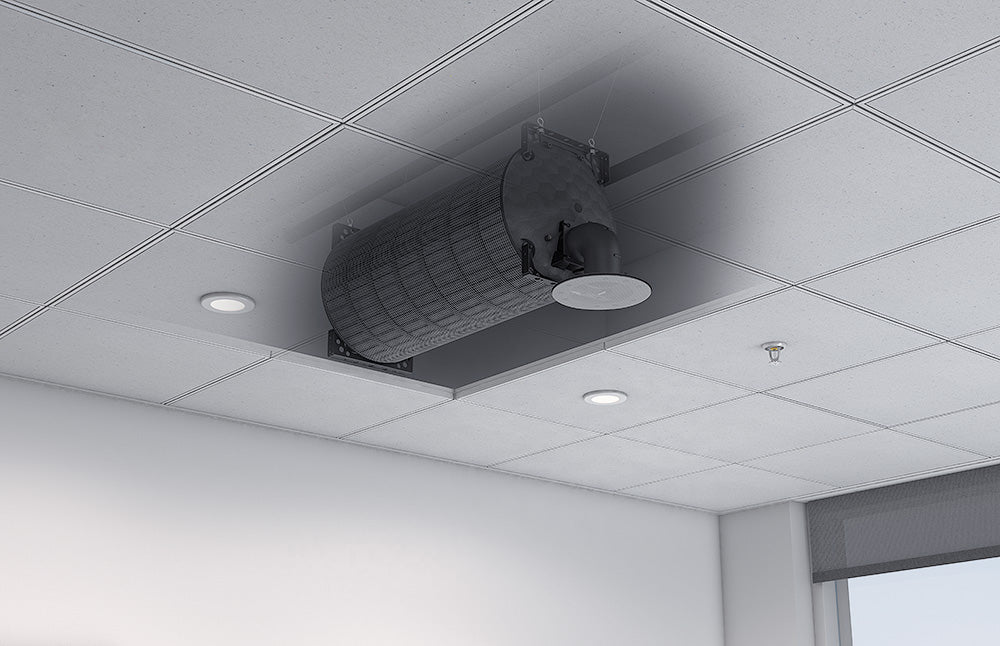

Ceiling loudspeakers run out of headroom below roughly 70 Hz, which is where music playback in a room starts to sound thin. The SF 10C SUB restores that bottom octave without putting a cabinet on the floor. Extron builds it as a 4th order bandpass in a rigid composite enclosure and hangs it on aircraft cable above the grid, decoupled from the tiles, so the ceiling structure itself does not buzz when the driver moves air. Only the grille adapter shows, through a 7.6 in cutout. The driver takes 400 W of continuous pink noise and 800 W of program from a straight 8 ohm connection.

Key Capabilities

25 Hz to 160 Hz range (-10 dB, half space) from a 4th order bandpass enclosure.
10 in (254 mm) paper-cone driver finished with a waterproof coating.
400 W rms continuous pink noise and 800 W rms continuous program at 8 ohms nominal.
Suspended above the ceiling on supplied aircraft cables and isolation grommets, which keeps rattle out of the grid.
UL 2043 plenum rated composite enclosure with steel outer mesh and metal grille.
Maximum SPL at 1 m runs from 95 dB in free space to 113 dB corner loaded, based on rated maximum input voltage.

Where It Is Used

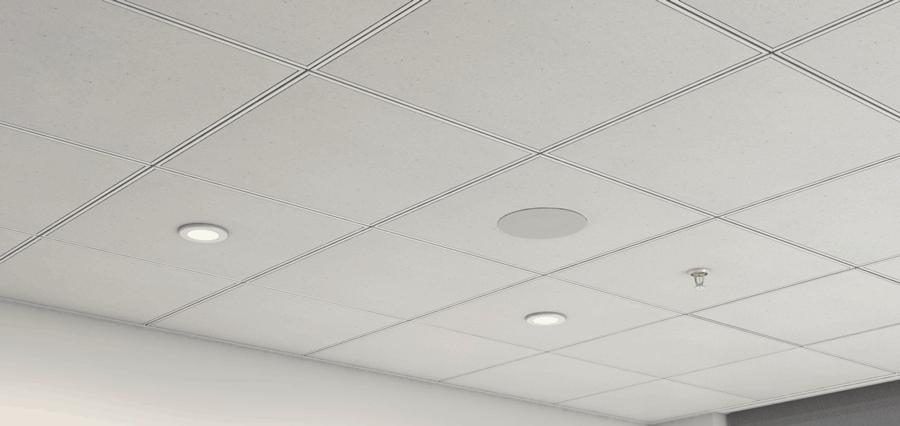

Boardrooms, presentation theatres, houses of worship, fitness studios, retail floors and hospitality spaces already fitted with Extron ceiling or pendant loudspeakers. It also suits rooms where a visible subwoofer cabinet would be unacceptable, since the only exposed component is the grille. Free-standing installation is possible using the optional SMK F SF 10C Plus kit.

Specifications at a Glance

Enclosure without port tube: 15.16 in H x 14.23 in W x 34.21 in L

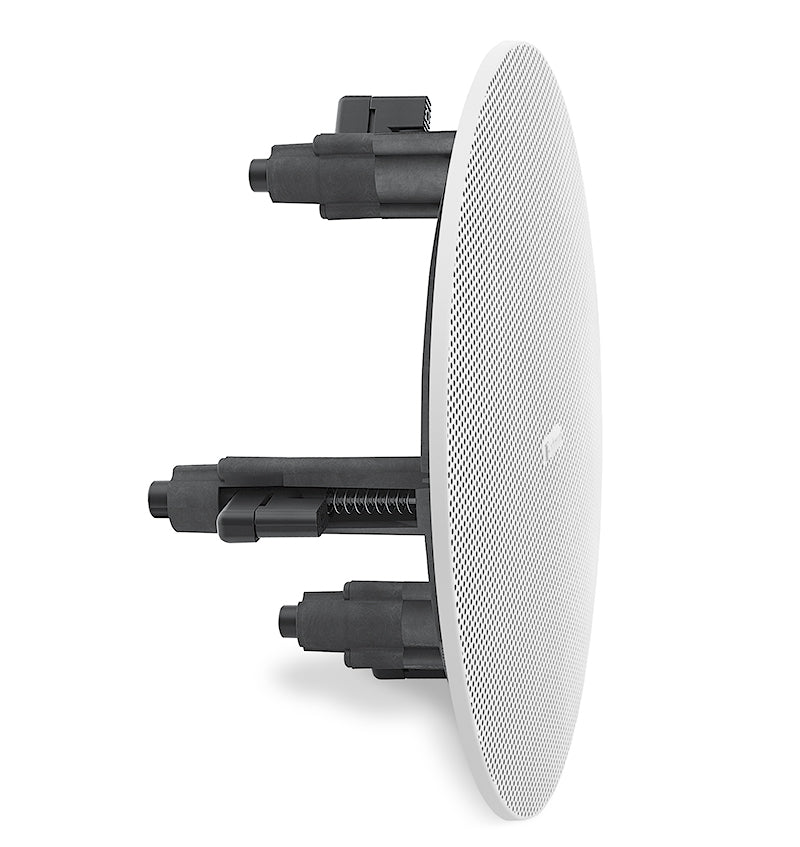

Ceiling cutout: 7.6 in (193 mm) diameter for the grille adapter kit
Input: one 5 mm captive screw connector, 4-pole, for double wiring
Weight: 38.0 lbs (17.2 kg); grille assembly 0.3 lbs (0.1 kg)
Warranty: 5 years parts and labor

Also referenced as Extron SF10CSUB, SF-10C-SUB, part number 60161001.

Specifications

Part Number: 60-1610-01

Manufacturer: Extron

Model: SF 10C SUB

Condition: New

Package: 1 speaker

Speaker Type: In-ceiling subwoofer

Driver: (1) 10" (254 mm) paper cone with waterproof coating

Frequency Range: 25 Hz to 160 Hz, -10 dB, half space (per IEC 60268-5)

Power Capacity: 400 W (rms) continuous pink noise (per IEC 60268-5); 800 W (rms) continuous program

Rated Maximum Input Voltage (MIV): 40.3 V (203 W at 8 ohms) (per AES2-2012)

Maximum SPL, Corner Loading: 113 dB at 1 m (based on maximum input voltage); 117 dB at 1 m (linear)

Maximum SPL, Wall/Ceiling or Wall/Floor Junction: 107 dB at 1 m (based on maximum input voltage); 111 dB at 1 m (linear)

Maximum SPL, Mid-Ceiling: 101 dB at 1 m (based on maximum input voltage); 105 dB at 1 m (linear)

Maximum SPL, Full Space: 95 dB at 1 m (based on maximum input voltage); 99 dB at 1 m (linear)

Nominal Sensitivity, Corner Loading: 96 dB SPL, 1 W/1 m

Nominal Sensitivity, Wall/Ceiling or Wall/Floor Junction: 90 dB SPL, 1 W/1 m

Nominal Sensitivity, Mid-Ceiling: 84 dB SPL, 1 W/1 m

Nominal Sensitivity, Full Space: 78 dB SPL, 1 W/1 m

Nominal Impedance: 8 ohms

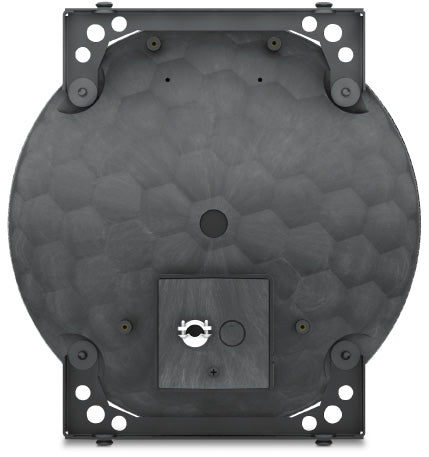

Input Connector: (1) 5 mm captive screw connector, 4-pole, for double wiring

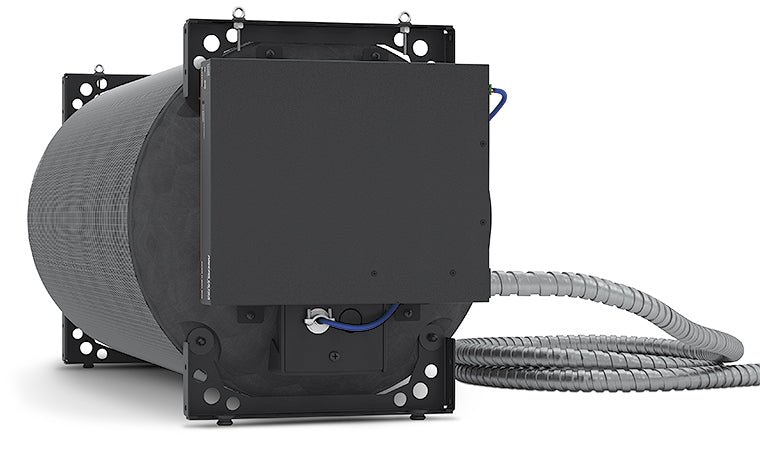

Included Accessories: Cutout template, setup guide, grille assembly kit, cable clamps, mounting cables (aircraft cables), isolation grommets, eye bolts

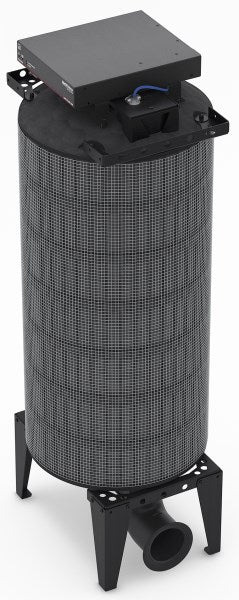

Mounting: Mounts horizontally in the ceiling (standard, with included parts) or vertically on the floor (with the optional SMK F SF 10C Plus kit). For unistrut mounting, the unit includes 0.5" (13 mm) diameter mounting holes 1.875" (48 mm) apart on center.

Enclosure Type: Plenum rated, fire resistant (UL 94V-0) composite with steel outer mesh and metal grille

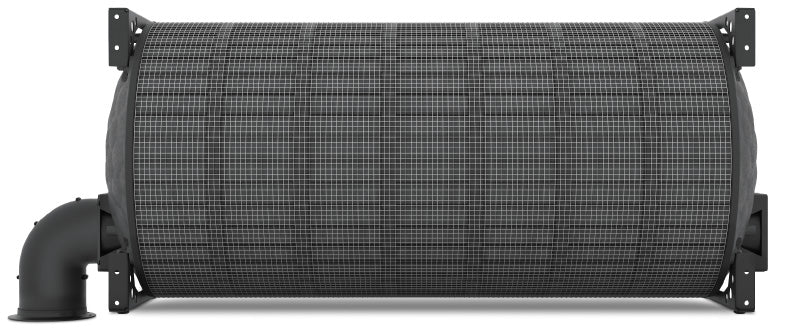

Enclosure Dimensions, Without Port Tube: 15.16" H x 14.23" W x 34.21" L (385 mm H x 362 mm W x 869 mm L)

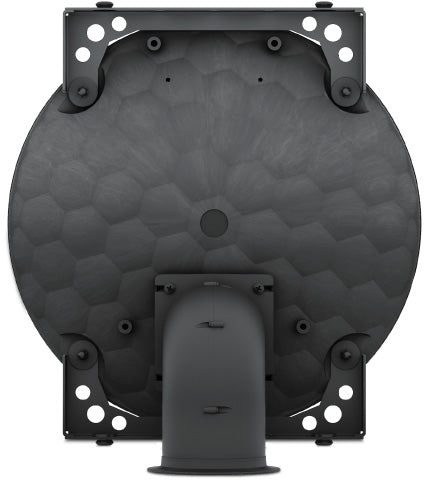

Enclosure Dimensions, With Port Tube: 15.83" H x 14.23" W x 39.36" L (402 mm H x 362 mm W x 1000 mm L)

Cutout Dimensions: 7.6" (193 mm) diameter (for the grille adapter kit)

Horizontal Mounting Height: 15.97" (406 mm) nominal distance from the bottom of the ceiling tile to the top of the unit

Floor Mounting Height, Port on Top (optional SMK F SF 10C Plus): 44.77" (1137 mm) from the bottom of the mounting feet to the top of the port

Floor Mounting Height, Port on Bottom (optional SMK F SF 10C Plus): 40.35" (1025 mm) from the bottom of the mounting feet to the top of the port

Floor Mounting Height, Port on Side (optional SMK F SF 10C Plus): 15.77" (401 mm) from the bottom of the enclosure to the top of the enclosure

Product Weight: SF 10C SUB: 38.0 lbs (17.2 kg); grille assembly: 0.3 lbs (0.1 kg)

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Regulatory Compliance: CE, RoHS, UL 1480A, UL 2043, WEEE

Warranty: 5 years parts and labor

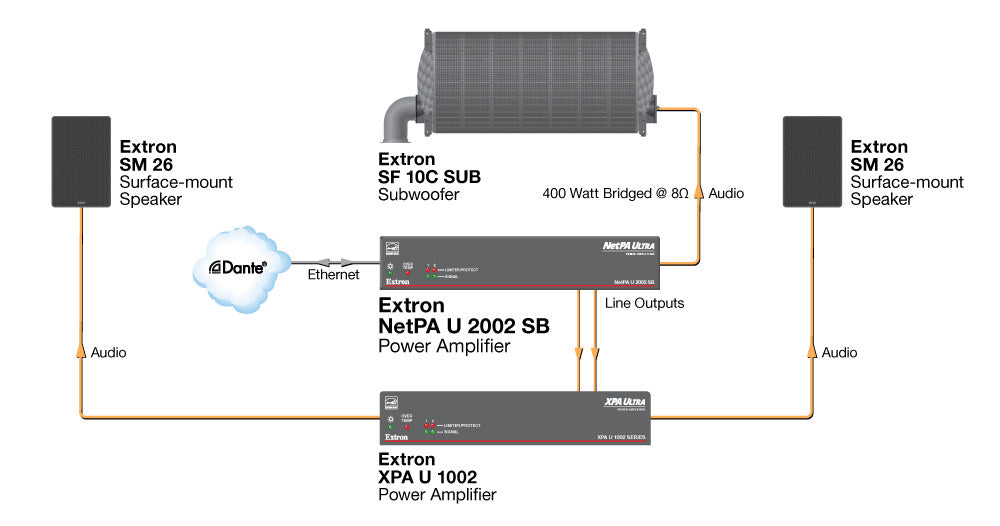

Diagram

Resources

Brochure | SF 10C SUB 60-1610-01 | SF 10C SUB (sf_10c_sub_revA2.pdf)

Brochure | SF 10C SUB 60-1610-01 | SF 10C SUB (SF-10C-SUB_BR_A4_FR_RevA2.pdf)

Brochure | SF 10C SUB 60-1610-01 | SF 10C SUB (SF-10C-SUB_BR_A4_IT_RevA2.pdf)

Brochure | SF 10C SUB 60-1610-01 | SF 10C SUB (SF-10C-SUB_BR_A4_SP_RevA2.pdf)

Brochure | SF 10C SUB 60-1610-01 | SF 10C SUB (SF-10C-SUB_BR_A4_GE_RevA2.pdf)

Manual | SF 10C SUB 60-1610-01 | Cleaning Instruction Card

Manual | SF 10C SUB 60-1610-01 | SF 10C SUB Setup Guide

Manual | SF 10C SUB 60-1610-01 | SF 10C SUB Subwoofer Installation Guide

Manual | SF 10C SUB 60-1610-01 | SF 10C SUB User Guide

Specifications | SF 10C SUB 60-1610-01 | SF 10C SUB

Panel Drawing | SF 10C SUB 60-1610-01 | SF 10C SUB
