Extron SAK PTZ SB 33 (part number 70-1260-01) — the shelf that carries a PTZ camera on an SB 33 A Adjustable Width Sound Bar.

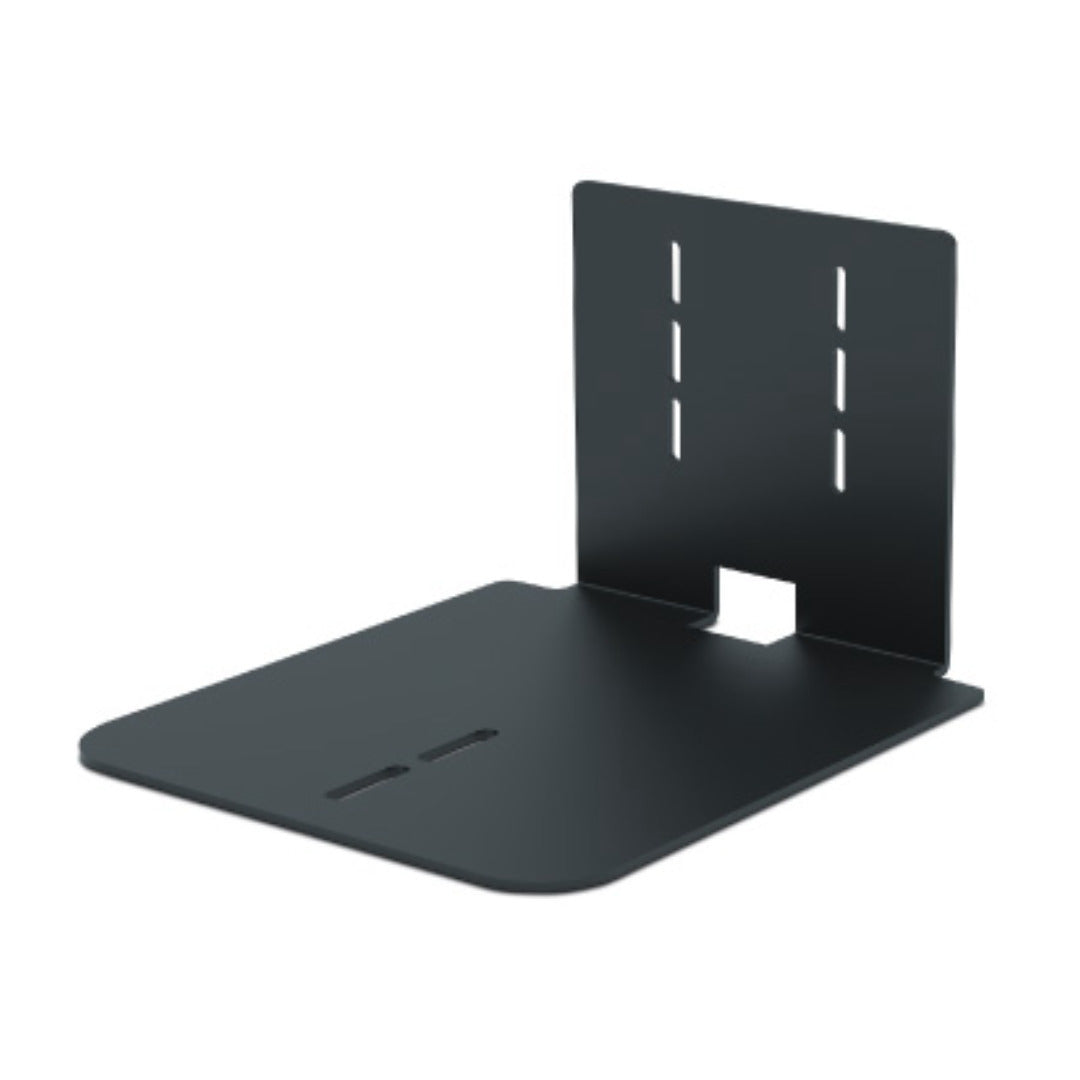

Putting the camera on the sound bar rather than on its own bracket solves two problems at once. The wall stops accumulating hardware, and the camera ends up on the same horizontal line as the loudspeaker instead of floating above or below it. The shelf uses slotted mounting holes, so once the camera is on it the installer can slide it left or right relative to the bar to centre it on the display or on the room. Extron finishes the shelf in the same colour as the SB 33 A.

Key Capabilities

• Mounts a PTZ camera securely to the SB 33 A Adjustable Width Sound Bar.
• Slotted mounting screw holes allow the camera position to be adjusted relative to the bar.
• Colour matched to the SB 33 A for an integrated appearance above the display.
• Compatible with the SAK BCG SB 33 blank centre grille when the centre section is otherwise closed.
• Removes the need for separate wall or ceiling camera hardware in the same sightline.

Where It Is Used

Conference rooms, huddle rooms and training spaces that combine an SB 33 A sound bar with a PTZ camera above the display — for example the SB 33 A 46-55 fitted to a 46 in to 55 in screen. Typical in unified-communications rooms where the camera and audio must share one clean mounting position.

Specifications at a Glance

• Product type: PTZ camera shelf for the SB 33 A Adjustable Width Sound Bar
• Adjustment: mounting screw slots for camera positioning relative to the bar
• Finish: colour matched to the SB 33 A
• Also compatible with: SAK BCG SB 33 blank centre grille; SMK V SB 33 Series VESA mounting kits

Also referenced as Extron SAKPTZSB33, SAK-PTZ-SB-33, part number 70126001.
