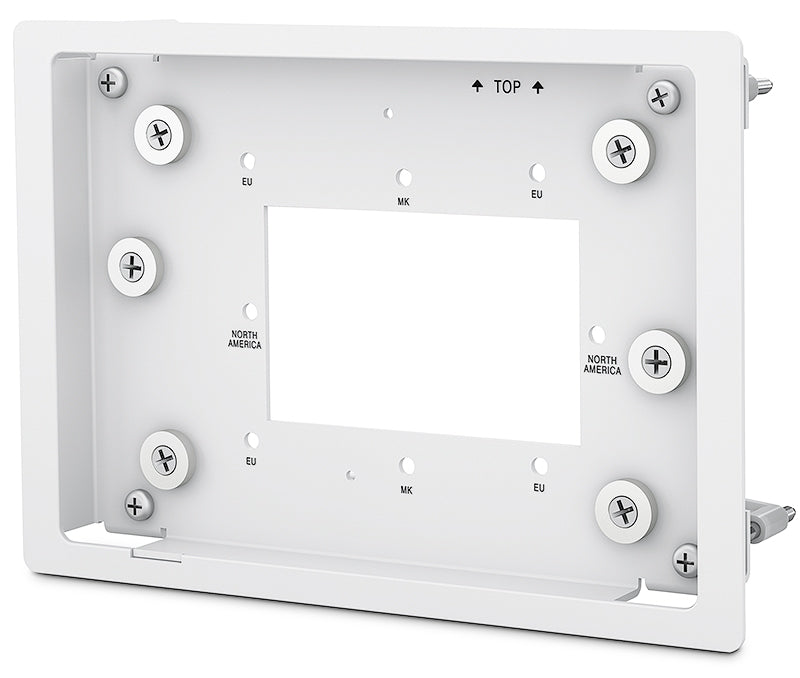

Extron RWM 2 (part number 70-1141-23) - the recessed wall mounting box for Extron's 7-inch and 10-inch touchpanels.

Same idea as the RWM 1, scaled up. The box takes a 4.42 by 6.375 inch cut-out in drywall, four locking arms tighten against the back of the board, and six face magnets plus a spare on the rear hold the panel flush once its mounting plate is fastened. Extron's installation guide covers the TLP Pro 725M and TLP Pro 1025M; the Room Scheduling brochure lists the same kit for the TLS 725M and TLS 1025M scheduling panels.

Key Capabilities

• Recesses a 7 in or 10 in Extron touchpanel into drywall for a flush installation.
• Metal enclosure, painted white, 4.72 in H x 6.77 in W x 2.59 in D (120 x 172 x 66 mm), 0.68 lbs.
• Cut-out of 4.42 in H x 6.375 in W (112 x 162 mm) for drywall 0.50 in to 1.00 in thick.
• Four locking arms clamp the box in place; no separate wall anchors needed.
• Six magnets on the face plus one spare on the back hold the panel securely.
• Works with a 2-gang EU, 1-gang MK or horizontal 1-gang North America junction box (Extron JB 125), sold separately.

Where It Is Used

Boardroom and training-room doorways, hospital and university corridors, and any refit where a larger touchpanel must sit inside the wall line. A single PoE/Ethernet run passes through the box to the panel, so no local power is needed at the mounting point.

Specifications at a Glance

• Enclosure: metal, painted white, 4.72 in H x 6.77 in W x 2.59 in D
• Surface cut-out: 4.42 in H x 6.375 in W (112 x 162 mm)
• Product weight: 0.68 lbs (0.31 kg)
• Wall thickness range: 0.50 in to 1.00 in
• Compliance: CE, RoHS, WEEE; 3 years parts and labor

Frequently asked questions about the Extron RWM 2 Recessed Wall Mount Kit for TLS 725M/1025M

Also referenced as Extron RWM2, RWM-2, part number 70114123.
