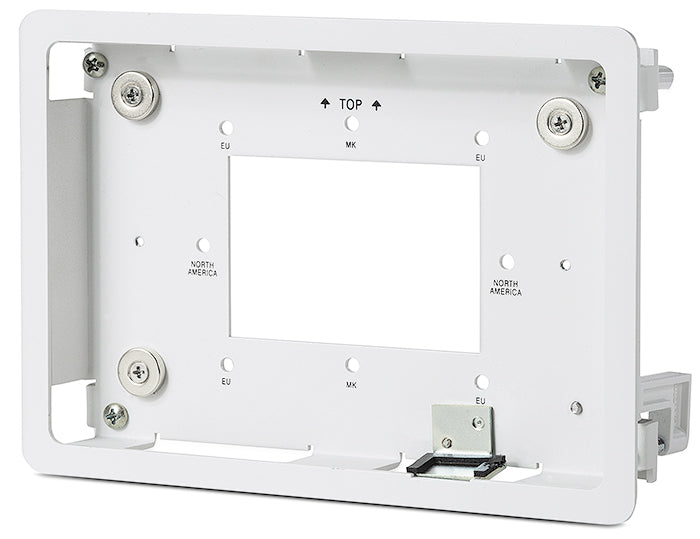

Extron RWM 1 (part number 70-1141-13) — a recessed metal mounting box that sets a 5-inch Extron scheduling or control touchpanel flush into drywall.

A surface-mounted panel always reads as an object stuck on a wall. The RWM 1 removes that: the box drops into a 4.15 by 6.07 inch cut-out, four locking arms clamp it against drywall between half an inch and one inch thick, and the touchpanel then holds to its face on magnets. Extron documents the kit for the TLP Pro 525M in its installation guide and lists it as the recessed wall mount kit for the TLS 525M in the Room Scheduling brochure.

Key Capabilities

• Recesses a 5 in Extron touchpanel into drywall or furniture for a flush finish.
• Metal box, painted white, measuring 4.65 in H x 6.57 in W x 2.32 in D (118 x 167 x 59 mm).
• Requires a 4.15 in H x 6.07 in W cut-out; suits wall thicknesses of 0.50 in to 1.00 in.
• Four screw-driven locking arms secure the box without separate wall anchors.
• Three face magnets hold the panel, with a fourth spare magnet supplied on the back for extra grip.
• Accepts a 2-gang EU, 1-gang MK or horizontally mounted 1-gang North America junction box (Extron JB 125), purchased separately.

Where It Is Used

Meeting-room entrances, executive floors and clinical corridors where a protruding panel would be knocked or would clash with the finish. It is also the practical choice for joinery installs, since the same cut-out works in furniture panels as in drywall.

Specifications at a Glance

• Enclosure: metal, painted white, 4.65 in H x 6.57 in W x 2.32 in D
• Surface cut-out: 4.15 in H x 6.07 in W (105 x 154 mm)
• Wall thickness range: 0.50 in to 1.00 in
• Compliance: CE, RoHS, WEEE; ISTA 1A vibration in carton
• Warranty: 3 years parts and labor

Also referenced as Extron RWM1, RWM-1, part number 70114113.
