Extron RSU 129 (part number 60-190-01) — 1U Universal Rack Shelf Kit for 9.5-inch deep products, supplied with three blanking faceplates.

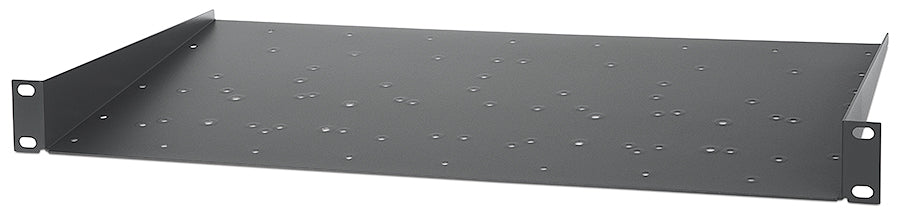

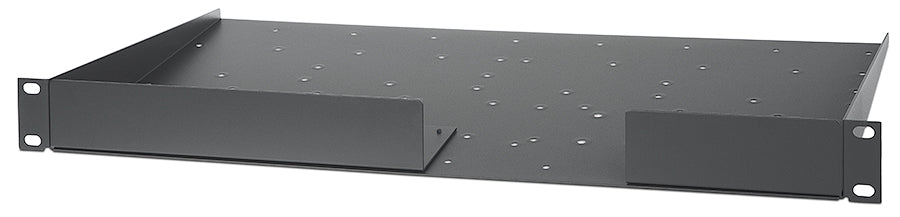

This is the deepest and most adaptable shelf Extron builds in the 1U range. The tray is drilled with mounting holes at the 3-inch, 6-inch and 9.5-inch positions, so devices of three different depths can sit on the same shelf and still bolt down cleanly from underneath. Across the width it takes two 1U half-rack products, or up to eight eighth-rack-width Extron products side by side. Three front faceplates come in the kit — eighth-, quarter- and half-rack width — to cover any position left open. Extron finishes it in powder coat gray; the tray on its own weighs roughly 1.1 kg before the faceplates go on, and measures 447 mm wide by 44 mm high by 241 mm deep excluding protrusions.

Key Capabilities

• 1U universal shelf with 9.5 in (241 mm) usable depth
• Mounting holes at the 3, 6 and 9.5-inch depth positions
• Holds two half-rack or up to eight eighth-rack width products

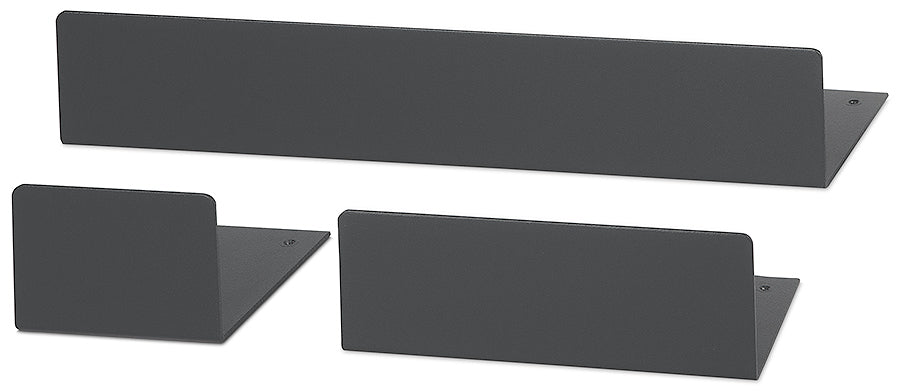

• Three false faceplates included: eighth, quarter and half-rack width
• Tray weighs about 1.1 kg without the faceplates fitted
• Gray powder coat; underside mounting hardware supplied

Where It Is Used

Deep, densely populated racks: control rooms and command centres, broadcast and post-production bays, campus AV headends, simulation and training facilities, and medical imaging systems where mixed-depth Extron hardware has to share one rack unit.

Specifications at a Glance

• Model: Extron RSU 129, part number 60-190-01
• Rack height: 1U, 1.73 in (4.4 cm) / 44 mm
• Width: 19 in (48.25 cm) with rack ears; 447 mm excluding protrusions
• Depth: 9.5 in (24.1 cm) / 241 mm
• Weight: approx. 1.1 kg, shelf only

Also referenced as Extron RSU129, RSU-129, part number 6019001.
