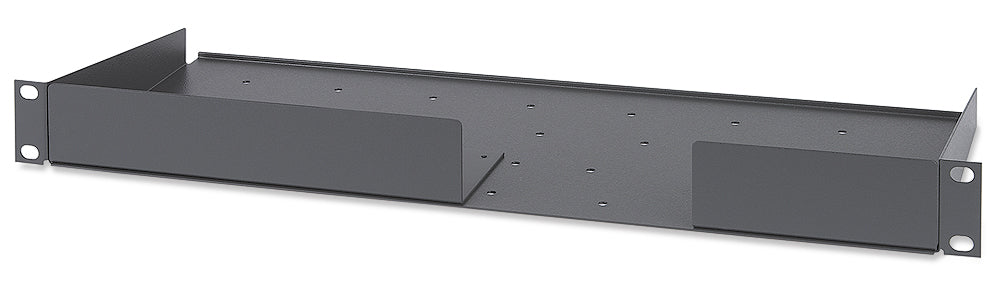

Extron RSU 126 (part number 60-190-10) — 1U Universal Rack Shelf Kit for 6-inch deep products, complete with three blanking faceplates.

Extron sizes the RSU 126 for 1U devices measuring 6 inches (15.24 cm) or 3 inches (7.62 cm) front to back. At the 6-inch depth it will carry two half-rack-width products, four quarter-rack-width products, or eight eighth-rack-width products; at 3 inches it takes up to eight eighth-rack or four quarter-rack units. Three front faceplates ship with the kit — one eighth-rack, one quarter-rack and one half-rack width — to close whichever openings your device mix leaves behind. The shelf can be turned to face the front of the rack or installed at the rear when the cabling is easier to dress from behind, which is what makes it the flexible choice for consolidating a lot of small Extron hardware into a single rack unit.

Key Capabilities

• 1U universal shelf kit with 6.5 in (16.5 cm) of tray depth
• Two half-rack, four quarter-rack or eight eighth-rack 6-inch devices
• Also accepts up to eight eighth-rack width 3-inch deep products
• Three false faceplates included: eighth, quarter and half-rack width
• Installs at the front or rear of the rack
• Gray powder coat finish; underside mounting hardware supplied

Where It Is Used

Mixed-depth AV racks in corporate boardrooms, universities, worship venues, control rooms and command centres — anywhere a rack has to hold a spread of extenders, scalers, DAs and audio interfaces without wasting rack units on each one.

Specifications at a Glance

• Model: Extron RSU 126, part number 60-190-10
• Rack height: 1U, 1.73 in (4.4 cm)
• Width: 19 in (48.25 cm) with rack ears, 17.5 in (44.5 cm) usable
• Depth: 6.5 in (16.5 cm)
• Includes: one eighth-, one quarter- and one half-rack width faceplate

Also referenced as Extron RSU126, RSU-126, part number 6019010.
