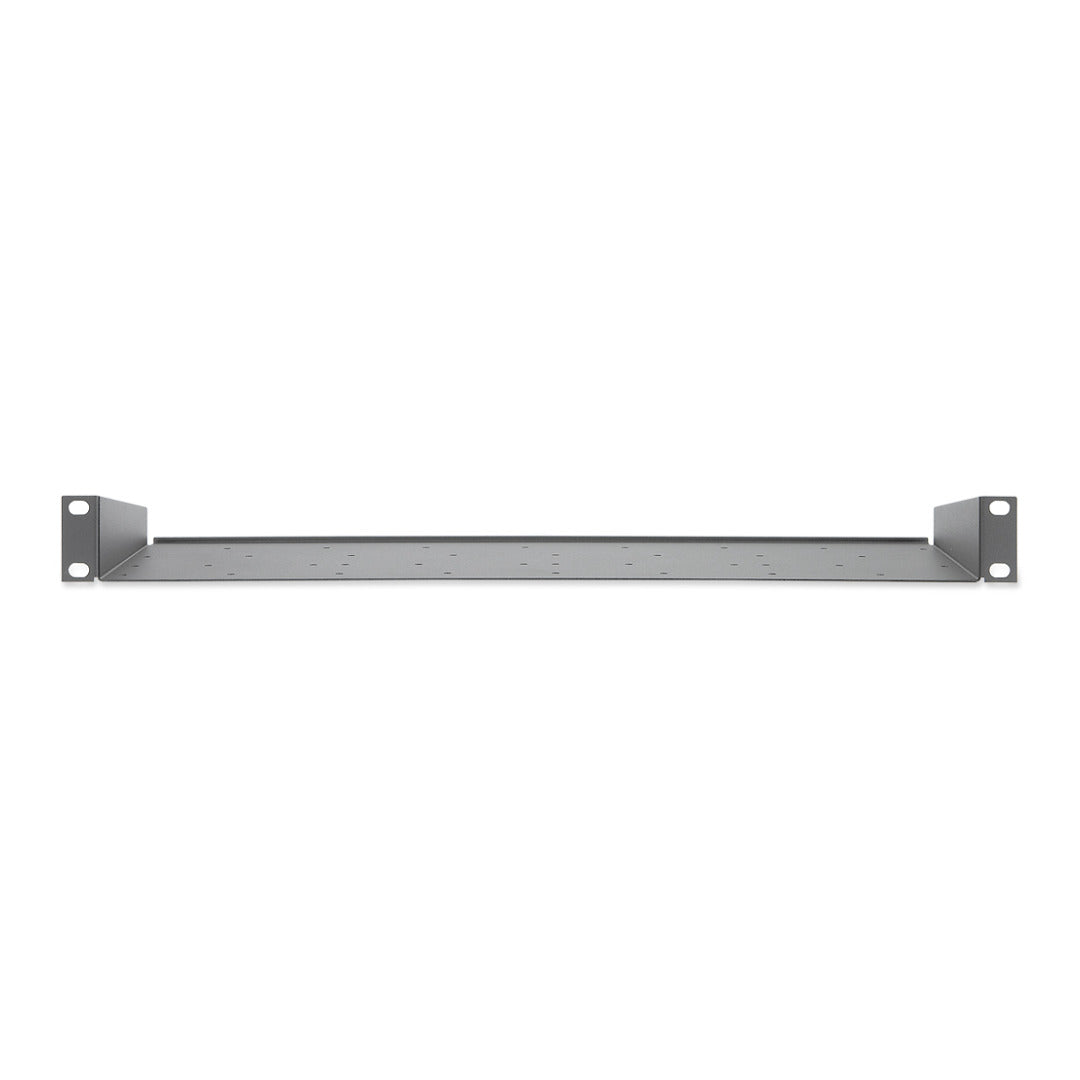

Extron RSB 126 (part number 60-604-11) — the gray powder coat 1U Basic Rack Shelf for 6-inch deep products.

One rack unit, 6.5 inches of usable depth, and enough room across the 17.5-inch span for two half-rack-width Extron products, four quarter-rack-width products, or eight eighth-rack-width products. Shallower 3-inch devices fit too, up to eight eighth-rack or four quarter-rack units. Each product is secured through the shelf from underneath with the supplied screws, and the shelf can face forward or be turned to the rear of the rack when the cabling is easier to reach from behind. Extron builds it from gray powder-coated steel, rates it at 1.8 lbs, and covers it with a three-year parts and labour warranty. Blanking faceplates are not part of the basic package.

Key Capabilities

• 1U shelf for 6-inch and 3-inch deep Extron products
• Two half-rack, four quarter-rack or eight eighth-rack devices per shelf
• Front or rear rack mounting
• Gray powder-coated steel, 1.8 lbs (0.8 kg)
• Complies with applicable RoHS and WEEE requirements
• Backed by a three-year Extron parts and labour warranty

Where It Is Used

General-purpose AV racks that mix small interfaces with deeper hardware: university lecture capture racks, corporate boardrooms, worship venues, broadcast support bays, and medical imaging or command-centre installations where equipment density matters.

Specifications at a Glance

• Model: Extron RSB 126, part number 60-604-11
• Rack height: 1U, 1.73 in (4.4 cm); width 19 in (48.25 cm) with rack ears
• Depth: 6.5 in (16.5 cm); usable width 17.5 in (44.5 cm)
• Weight: 1.8 lbs (0.8 kg); metal enclosure, gray powder coat
• Warranty: 3 years parts and labor; RoHS and WEEE compliant

Also referenced as Extron RSB126, RSB-126, part number 6060411.
