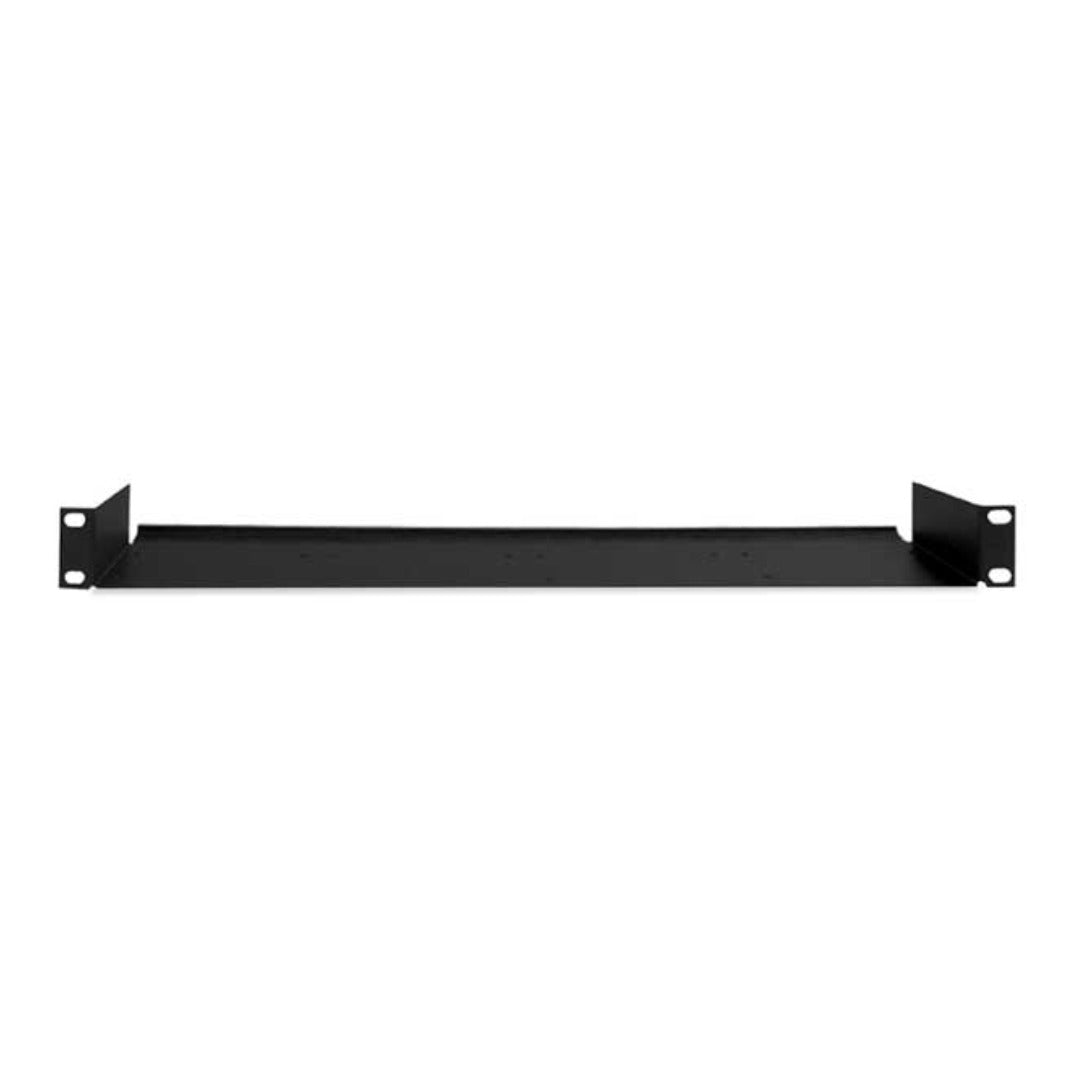

Extron RSB 123 (part number 60-604-20) — the black 1U, 3.5-inch deep Basic Rack Shelf. Extron lists this part number as retired.

Small Extron interfaces, converters and distribution amplifiers are not full-width devices, so getting them into a 19-inch rack means giving them a floor to sit on. The RSB 123 is that floor: a single rack unit deep enough for 3.5-inch products, able to carry four quarter-rack-width units or eight eighth-rack-width units alongside each other. Devices bolt down through the shelf from underneath with the screws supplied in the box, and the shelf itself fastens into the rack rails. It is the stripped-back version of the RSF 123 kit, so blanking faceplates are not part of this package; add RFF Series plates separately if you want the empty positions covered.

Key Capabilities

• 1U shelf, 1.73 inches high, 19 inches wide across the rack ears
• 3.5-inch (8.9 cm) shelf depth for shallow Extron products
• Carries four quarter-rack or eight eighth-rack width devices
• Products mount from the underside using the included hardware
• Black finish — the retired colour option in the RSB 123 line
• RFF Series false faceplates available as an optional add-on

Where It Is Used

Shallow racks and credenzas where depth is at a premium: classroom and huddle-room cabinets, lectern racks, under-desk and wall-box builds, portable flight racks, and control rooms consolidating several small interfaces into one rack unit.

Specifications at a Glance

• Model: Extron RSB 123, part number 60-604-20
• Rack height: 1U, 1.73 in (4.4 cm)
• Width: 19 in (48.25 cm) with rack ears, 17.5 in (44.5 cm) usable
• Depth: 3.5 in (8.9 cm)
• Finish: black; false faceplates not included

Also referenced as Extron RSB123, RSB-123, part number 6060420.
