Extron Room Agent (part number 79-594-01) — the configuration application that turns Extron TouchLink Scheduling panels into working room-booking appliances.

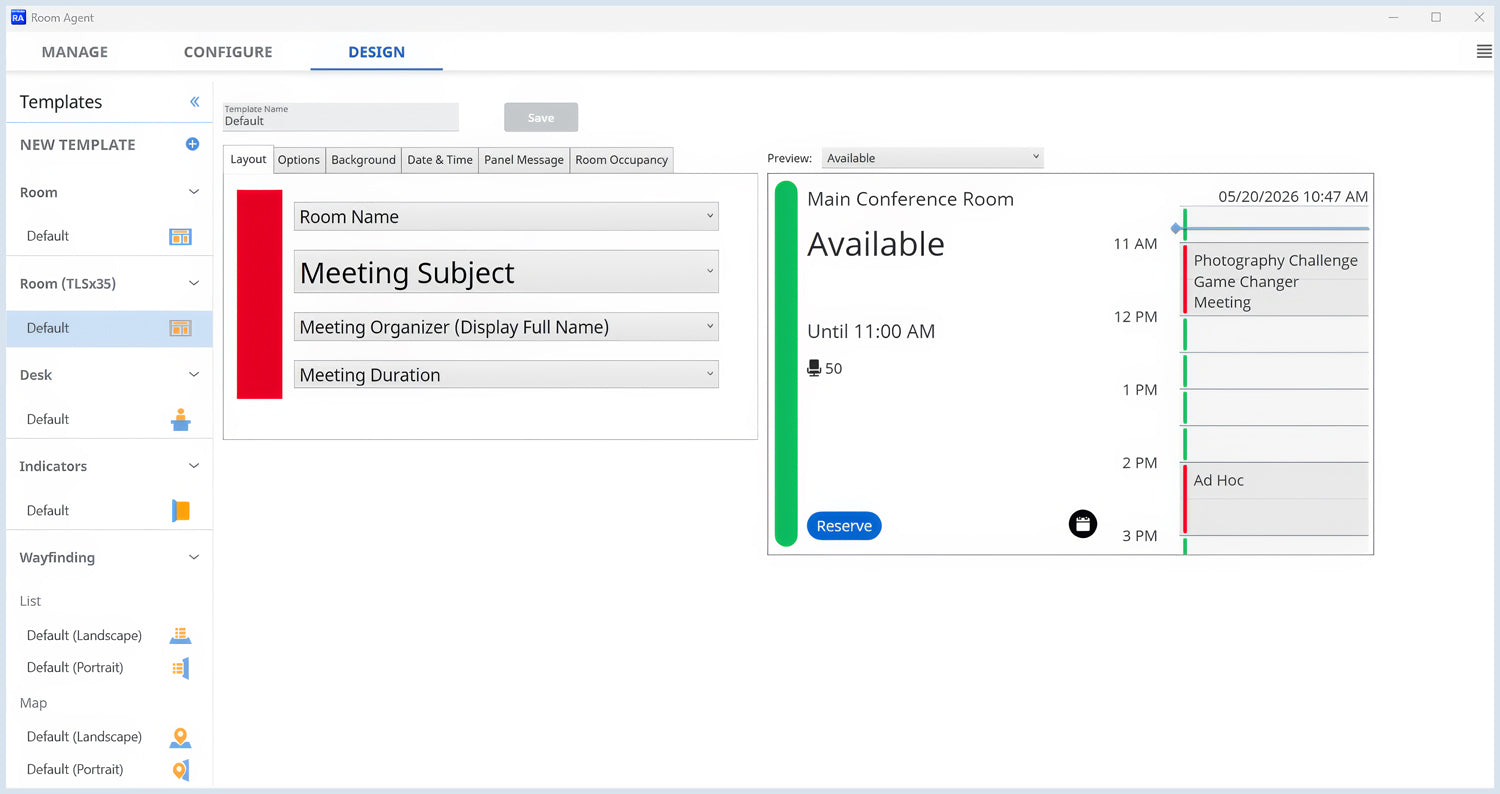

Every Extron Room Scheduling deployment is set up through this one program. It installs on a networked computer, and the administrator fills in the fields that map to areas of the panel interface — room name, calendar credentials, colors, background theme, logo, and which text fields appear. There is no control processor to program and no middleware to install; each panel talks directly to its own resource calendar. Deployments run from a single room to thousands of panels, and per-panel configuration files can be pushed out or pulled back to rebuild a system file.

Key Capabilities

• Connects panels to Microsoft Exchange, Microsoft Office 365, Google Calendar, CollegeNET 25Live, EMS Software, Ad Astra and Korbyt Booking / NFS Technology.
• Configures TLS TouchLink Scheduling panels, the TLSI 201 Wayfinding Interface and SSI Indicator devices.
• No programming and no controllers: the panels are configured, not coded.
• Encrypts communication between the software and panels, and between panels and the calendar server.
• Stores account data encrypted, with the option to save panel configurations in a password-protected file.
• Scales from one panel to thousands from a single administrator workstation.

Where It Is Used

Corporate real-estate and IT teams commissioning meeting-room scheduling across a floor, a building or a global estate; universities and hospitals standardizing room booking on existing calendar infrastructure. Because each panel is a direct calendar client, there is no intermediate server to become a single point of failure.

Specifications at a Glance

• Type: room scheduling configuration software for Extron TLS, TLSI and SSI devices
• Calendar servers: Exchange, Office 365, Google Calendar, 25Live, EMS, Ad Astra, NFS
• Host: a computer with network access to the panels
• Programming required: none
• Distribution: downloadable from the Extron website

Also referenced as Extron RoomAgent, Room-Agent, part number 7959401.
