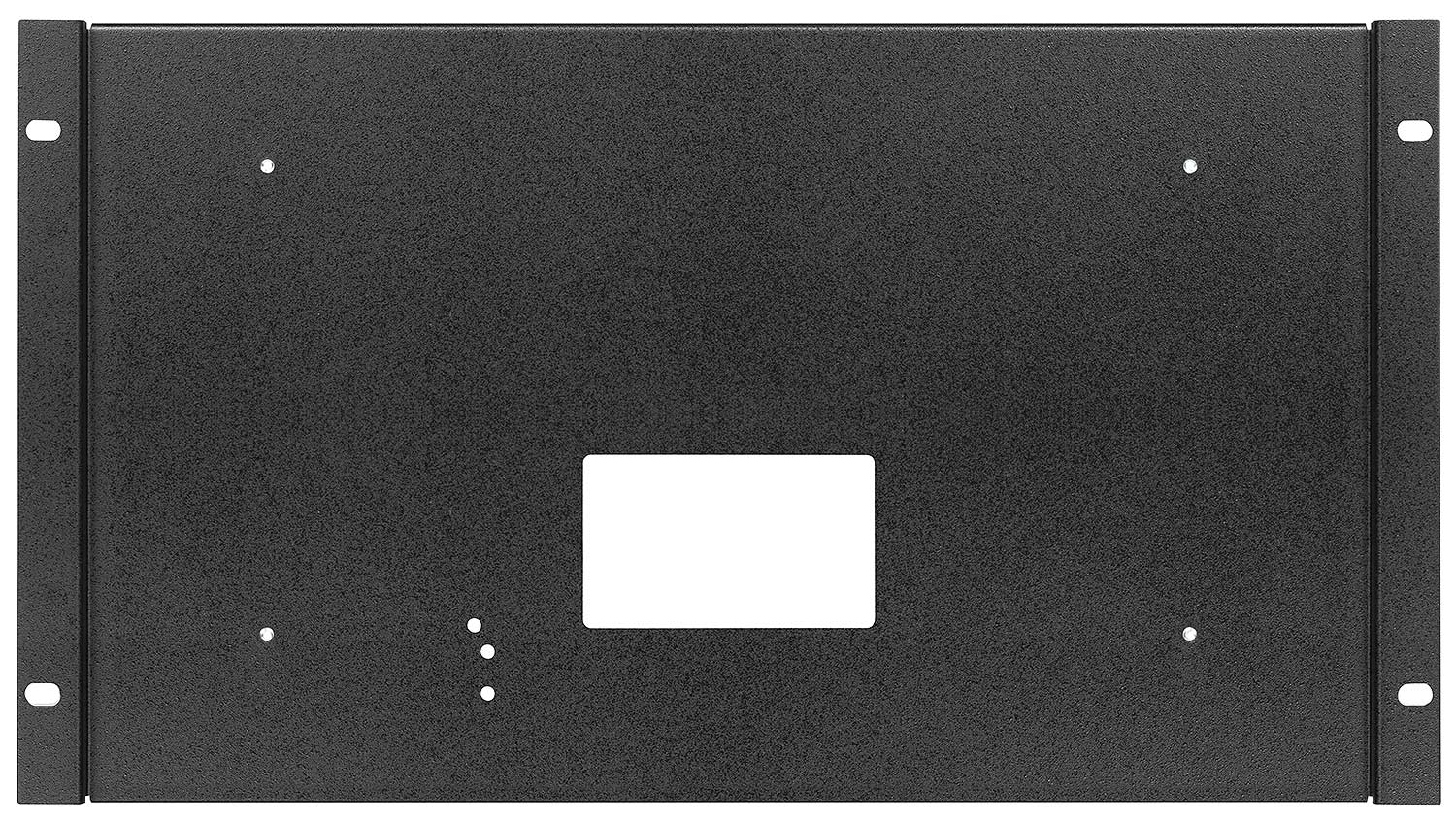

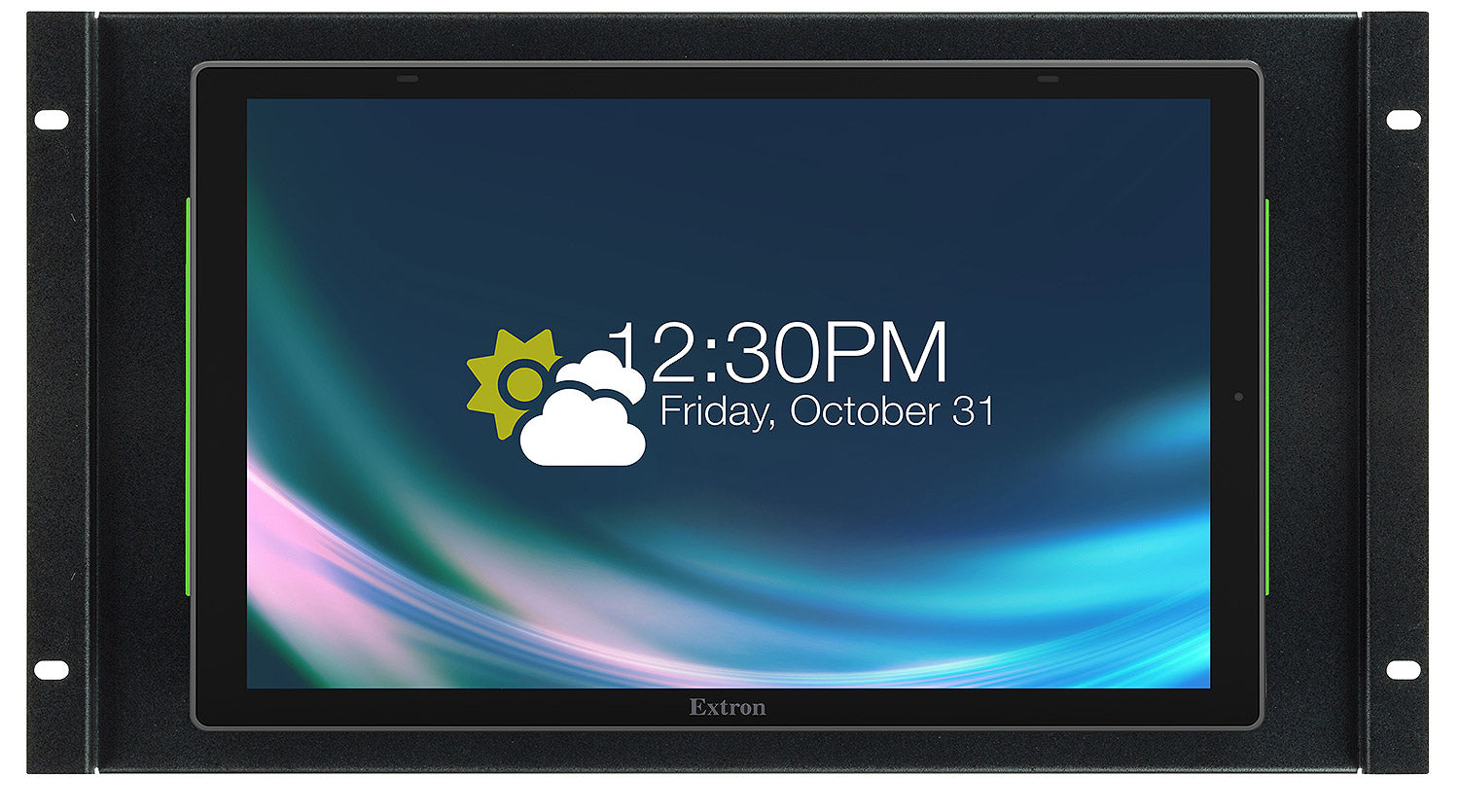

The Extron RM 7 (70-1335-22) is a 3U rack mounting plate that adapts a TouchLink Pro rack-mount touchpanel or control processor for installation in a standard 19" equipment rack. It measures 5.22" H x 19" W x 0.77" D (13.3 cm H x 48.3 cm W x 2 cm D) and is built from metal, painted black.

Rack-mount TouchLink Pro hardware needs a plate matched to its 3U footprint to sit flush and square in a shared equipment rack; using an ill-fitting plate leaves gaps or misaligned screw holes. The RM 7 solves this with a plate engineered to the exact 3U dimension, so it drops into a standard rack bay without modification.

Key Capabilities

• 3U rack mounting plate for 19" racks
• Enclosure dimensions 5.22" H x 19" W x 0.77" D
• Metal, painted black construction
• Product weight 1.80 lbs (0.82 kg)
• Regulatory compliance: CE, UKCA, RoHS, and WEEE

Where It Is Used

Integrators use the RM 7 in equipment racks and AV closets to rack-mount TouchLink Pro control and touchpanel hardware alongside other rack gear, keeping cabling and access consistent with the rest of the rack. Because it is sized to the standard 3U increment, it shares rack space cleanly with switches, amplifiers, and other 19" equipment already installed.

Specifications at a Glance

• Rack size: 3U, 19" wide
• Enclosure: 5.22" H x 19" W x 0.77" D, metal, painted black
• Product weight: 1.80 lbs (0.82 kg)
• Regulatory compliance: CE, UKCA, RoHS, and WEEE

Also referenced as RM7, RM-7, part number 70133522.
