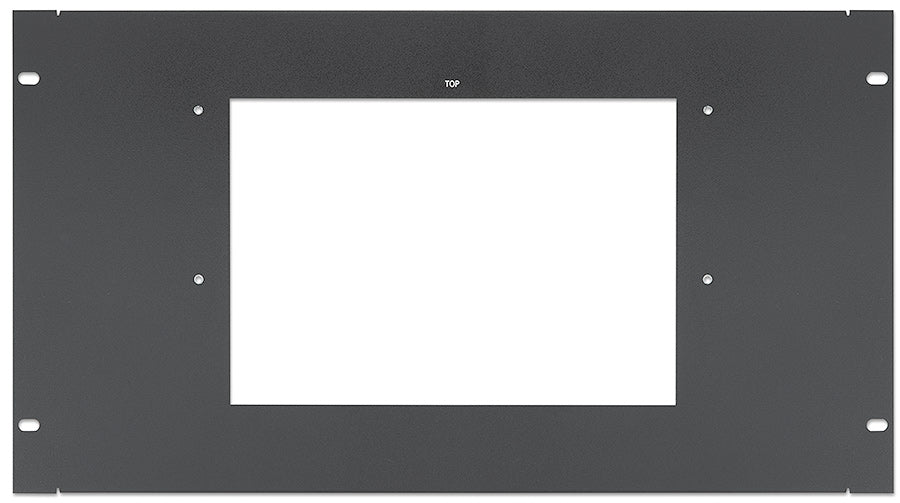

The Extron RM 2 (70-1009-22) is a 6U rack mounting plate that adapts a TouchLink Pro rack-mount touchpanel or control processor for installation in a standard 19" equipment rack. It measures 10.46" H x 19.00" W x 0.52" D (26.57 cm H x 48.26 cm W x 1.32 cm D) and is built from 16 gauge steel, black powder coat.

Rack-mount TouchLink Pro hardware needs a plate matched to its 6U footprint to sit flush and square in a shared equipment rack; using an ill-fitting plate leaves gaps or misaligned screw holes. The RM 2 solves this with a plate engineered to the exact 6U dimension, so it drops into a standard rack bay without modification.

Key Capabilities

• 6U rack mounting plate for 19" racks
• Enclosure dimensions 10.46" H x 19.00" W x 0.52" D
• 16 gauge steel, black powder coat construction
• Product weight 3.0 lbs (1.36 kg)
• Regulatory compliance: CE; RoHS and WEEE compliant

Where It Is Used

Integrators use the RM 2 in equipment racks and AV closets to rack-mount TouchLink Pro control and touchpanel hardware alongside other rack gear, keeping cabling and access consistent with the rest of the rack. Because it is sized to the standard 6U increment, it shares rack space cleanly with switches, amplifiers, and other 19" equipment already installed.

Specifications at a Glance

• Rack size: 6U, 19" wide
• Enclosure: 10.46" H x 19.00" W x 0.52" D, 16 gauge steel, black powder coat
• Product weight: 3.0 lbs (1.36 kg)
• Regulatory compliance: CE; RoHS and WEEE compliant

Also referenced as RM2, RM-2, part number 70100922.
