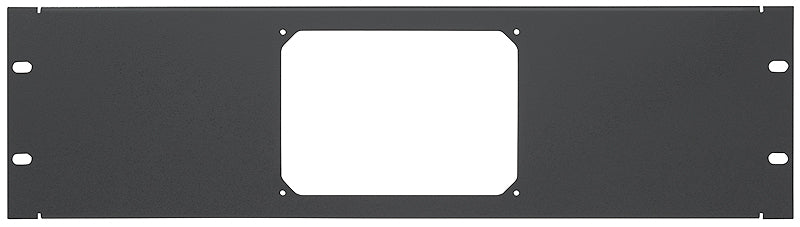

Extron RM 1 3U Rack Mounting Plate 70-1009-02
- • Extron RM 1 3U Rack Mounting Plate
- • 5.22 in H x 19.0 in W x 0.52 in D
- • 16 gauge steel, black powder coat
- • Sales, replacement and exchange
- • Part# 70-1009-02 / 70100902
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
The Extron RM 1 (70-1009-02) is a 3U rack mounting plate that adapts a TouchLink Pro rack-mount touchpanel or control processor for installation in a standard 19" equipment rack. It measures 5.22" H x 19.0" W x 0.52" D (13.3 cm H x 48.3 cm W x 1.3 cm D) and is built from 16 gauge steel, black powder coat.
Rack-mount TouchLink Pro hardware needs a plate matched to its 3U footprint to sit flush and square in a shared equipment rack; using an ill-fitting plate leaves gaps or misaligned screw holes. The RM 1 solves this with a plate engineered to the exact 3U dimension, so it drops into a standard rack bay without modification.
Key Capabilities
- 3U rack mounting plate for 19" racks
- Enclosure dimensions 5.22" H x 19.0" W x 0.52" D
- 16 gauge steel, black powder coat construction
- Product weight 1.5 lb (0.68 kg)
- Regulatory compliance: CE; RoHS and WEEE compliant
Where It Is Used
Integrators use the RM 1 in equipment racks and AV closets to rack-mount TouchLink Pro control and touchpanel hardware alongside other rack gear, keeping cabling and access consistent with the rest of the rack. Because it is sized to the standard 3U increment, it shares rack space cleanly with switches, amplifiers, and other 19" equipment already installed.
Specifications at a Glance
- Rack size: 3U, 19" wide
- Enclosure: 5.22" H x 19.0" W x 0.52" D, 16 gauge steel, black powder coat
- Product weight: 1.5 lb (0.68 kg)
- Regulatory compliance: CE; RoHS and WEEE compliant
Also referenced as RM1, RM-1, part number 70100902.
Frequently asked questions about the Extron RM 1 3U Rack Mounting Plate, 19-Inch Rack
Does Ampronix sell the Extron RM 1 3U Rack Mounting Plate, 19-Inch Rack?
Yes. Ampronix is an authorized Extron distributor and sells the Extron RM 1 3U Rack Mounting Plate, 19-Inch Rack (70-1009-02). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron RM 1 3U Rack Mounting Plate, 19-Inch Rack?
Yes. Ampronix provides sales, replacement and exchange for the Extron RM 1 3U Rack Mounting Plate, 19-Inch Rack. Call Ampronix for a quote.
What are the key features of the Extron RM 1 3U Rack Mounting Plate, 19-Inch Rack?
Key points: 3U rack mounting plate for 19" racks; Enclosure dimensions 5.22" H x 19.0" W x 0.52" D; 16 gauge steel, black powder coat construction; Product weight 1.5 lb (0.68 kg). Call Ampronix to confirm details for your application.
Related: Extron products, Video Solutions.
