Details

Manufacturer: Extron | Model: RGB-HDMI 300 A | Part number: 60-1074-01 (also written 60107401)

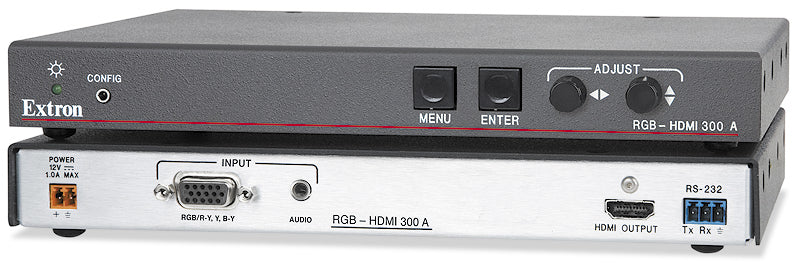

The Extron RGB-HDMI 300 A (60-1074-01) is a compact scaler that converts RGBHV and HDTV component video with stereo audio to HDMI output. It accepts analog computer and HDTV signals up to 1920x1200 and scales the output to any standard resolution up to WUXGA or 2K at 60 Hz, embedding the analog stereo audio into the HDMI stream. Automatic input detection and EDID management simplify integration alongside modern displays.

Key capabilities

Converts RGBHV, RGsB (component) and HDTV analog video plus stereo audio to HDMI
Scales output to any standard resolution up to WUXGA (1920x1200) and 2K at 60 Hz
Automatic input format detection and EDID management
Compact half-rack 1U metal enclosure for behind-display or rack mounting
External Everlast 12 VDC power supply included, 7-year warranty

Where it is used

Retrofitting older RGBHV or component video sources — legacy computers, presentation switchers, document cameras — into rooms with HDMI-only displays, without replacing the source equipment.

Specifications at a glance

Enclosure: 1.0 in H x 8.75 in W x 6.0 in D, half-rack
Input: RGBHV/RGsB on HD-15, stereo audio on 3.5 mm
Output: HDMI with embedded audio
Power draw: 9.3 W device; 24-bit sampling at 162 MHz
Warranty: 3-year product, 7-year Everlast power supply

Also referenced as Extron RGBHDMI300A, RGB-HDMI-300-A, part number 60107401.

Specifications

Part Number: 60-1074-01

Manufacturer: Extron

Condition: New

Height: 5.0" (12.7 cm)

Ambient temperature/humidity: Storage -40º to +158ºF (-40º to +70ºC) / 10% to 90%, noncondensingOperating +32º to +122ºF (0º to +50ºC) / 10% to 90%, noncondensing

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Colors: 16.78 million

Connectors: 1 female 15-pin HD

Cooling: Convection, vents on top and sides

Device: 9.3 watts

Device (Full power): 9.1 watts

Device (Power save): 5.8 watts

Device and power supply: 14.0 watts

Device and power supply (Full power): 11.9 watts

Device and power supply (Power save): 8.2 watts

Digital sampling: 24 bit, 8 bits per color; 162 MHz standard

Enclosure dimensions: 1.0 H x 8.75" W x 6.0" D (half rack wide)(2.5 cm H x 22.2 cm W x 15.2 cm D)(Depth excludes connectors and knobs.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Formats: RGB and HDTV Y, R-Y, B-Y

Frequency response: 20 Hz to 20 kHz, ±1.1 dB

Horizontal frequency: 30 kHz to 100 kHz

Impedance: 75 ohms

Input gain adjustment: -18 dBu to +10 dBu

Input impedance: 10k ohms

Input level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS0.6 Vp-p for component video tri-level sync0.3 Vp-p for component video bi-level sync or RGsB

Input type: RGBHV, RGBS, RGsB; bi-level YUVp component video, or tri-level HDTV component video

Maximum level: +10.4 dBu, (unbalanced) at 1% THD+N

Minimum/maximum levels: Analog: 0.0 V to 2.0 Vp-p with no offset

Nominal level: 1.0 Vp-p for Y of component video0.7 Vp-p for RGB and for R-Y and B-Y of component video

Number/signal type: 1 RGBHV, RGBS, RGsB, HDTV component video (Y, R-Y, B-Y)

Output type: DVI-D or HDMI digital video

Power supply: External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Product warranty: 3 years parts and labor

Product weight: 1.6 lbs (0.7 kg)

Program control: Extron control/configuration program for Windows®Extron Simple Instruction Set (SIS™)

RGB-DVI 300: 1 single link DVI-D

RGB-HDMI 300 A: 1 single link HDMI

Rack mount: Yes, with optional rack shelf kit and RFF 052 false front

Regulatory compliance: CE, C-tick, c-UL, FCC Class A, ICES, KCC, UL, VCCI, WEEE

Resolution range: 640x480 to 1920x1200* or 480p, 576p, 720p, 1080i, or 1080p

Return loss: <-30 dB @ 5 MHz

S/N: >70 dB at rated maximum output

Scaled resolutions: 640x4806,8,9, 800x6006,8,9, 852x4806,8,9, 1024x7686,8,9, 1024x8526,8,9, 1024x10246,8,9, 1280x7686,8,9, 1280x8006,8,9, 1280x10246,8,9, 1360x7656,8,9, 1360x7686,8,9, 1365x7686,8,9, 1365x10246,8,9, 1366x7686,8,9, 1440x9006,8,9, 1400x10506,8, 1600x9006,8, 1600x12006,8, 1680x10506,8, 1920x12006,8, 2048x10801,2,3,4,5,6,7,8, 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080p1,2,3,4,5,6,7,8, 1080i6,7,8

Serial control pin configurations: 1 = Tx, 2 = Rx, 3 = GND

Serial control ports: 1 RS-232, 3.5 mm captive screw connector, 3 pole (rear panel)1 RS-232, 2.5 mm mini stereo jack (front panel)

Standards: DVI 1.0, HDMI

THD + Noise: 0.03% @ 1 kHz at nominal level, 0 dB gain

Vertical frequency: 24 Hz to 120 Hz

Wall mount: Yes, with optional under-desk or through-desk mounting kit

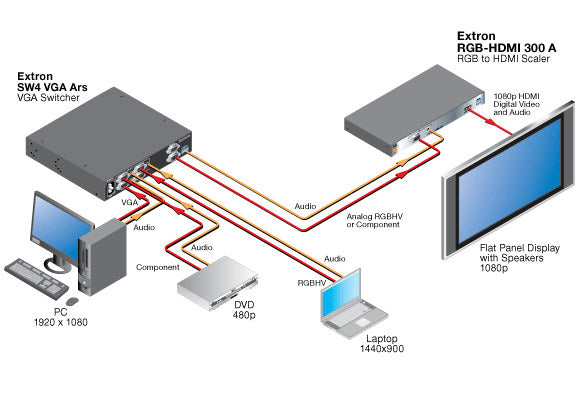

Diagram

Resources

Brochure | RGB-HDMI 300 A 60-1074-01 | Everlast Power Supplies

Brochure | RGB-HDMI 300 A 60-1074-01 | Alimentatori Everlast

Brochure | RGB-HDMI 300 A 60-1074-01 | Everlast 电源

Brochure | RGB-HDMI 300 A 60-1074-01 | Everlast-Netzteile

Brochure | RGB-HDMI 300 A 60-1074-01 | Fuentes de alimentación Everlast

Brochure | RGB-HDMI 300 A 60-1074-01 | RGB HDMI 300 A

Brochure | RGB-HDMI 300 A 60-1074-01 | Sources d'alimentation Everlast

Manual | RGB-HDMI 300 A 60-1074-01 | Cleaning Instruction Card

Manual | RGB-HDMI 300 A 60-1074-01 | RGB DVI HDMI 300 (A) User Guide

Manual | RGB-HDMI 300 A 60-1074-01 | RGB-DVI 300 and RGB-HDMI 300 Setup Guide

Specifications | RGB-HDMI 300 A 60-1074-01 | RGB-DVI 300, RGB-HDMI 300 A

Panel Drawing | RGB-HDMI 300 A 60-1074-01 | RGB-HDMI 300 A
