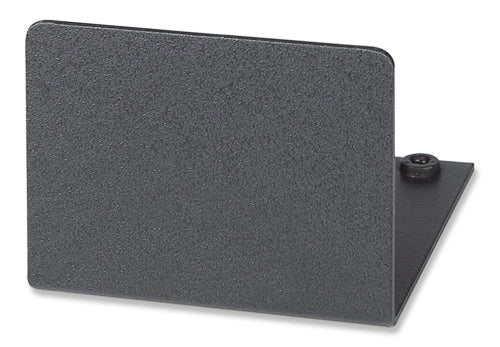

Extron RFF 104 (part number 70-338-01) — quarter-rack-width blanking faceplate from the Extron RFF Series Basic Rack False Faceplate Kits.

A quarter-rack-width device on a 1U shelf leaves three quarters of the opening exposed. The RFF 104 is the plate that takes up one of those quarter-width positions. It is part of the 1U version of the RFF line, which Extron intends for rack-mountable products in 1U enclosures, and it attaches to RSF, RSB and RSU 1U rack shelf kits. Covering the gap keeps cooling air moving through the mounted equipment and gives the rack a finished, level front rather than an obvious hole.

Key Capabilities

• Quarter-rack-width blank panel from the 1U version of the RFF line
• Matched by Extron to rack-mountable products in 1U enclosures
• Attaches to RSF, RSB and RSU 1U rack shelf kits
• Aids thermal management by sealing unused rack-face area
• Gray powder coat finish consistent with Extron rack products
• Mounting hardware included in the kit

Where It Is Used

Quarter-width gaps are the most common leftovers in AV racks, so this plate turns up in classroom and conference-room racks, lectern and credenza builds, control rooms, simulation labs, and medical imaging suites where several small interfaces share one shelf.

Specifications at a Glance

• Model: Extron RFF 104, part number 70-338-01
• Version: 1U, quarter rack width
• Enclosure compatibility: Extron products in 1U enclosures
• Shelf compatibility: RSF, RSB and RSU 1U rack shelf kits
• Finish: gray powder coat; mounting hardware included

Also referenced as Extron RFF104, RFF-104, part number 7033801.
