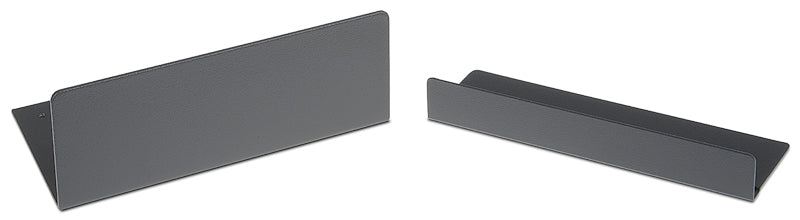

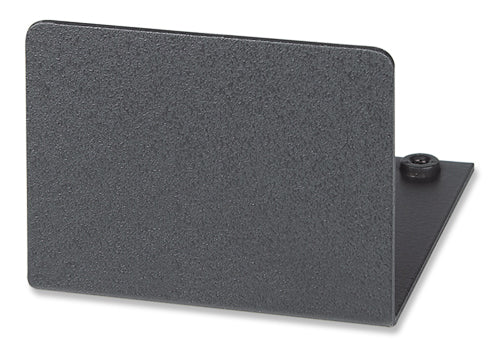

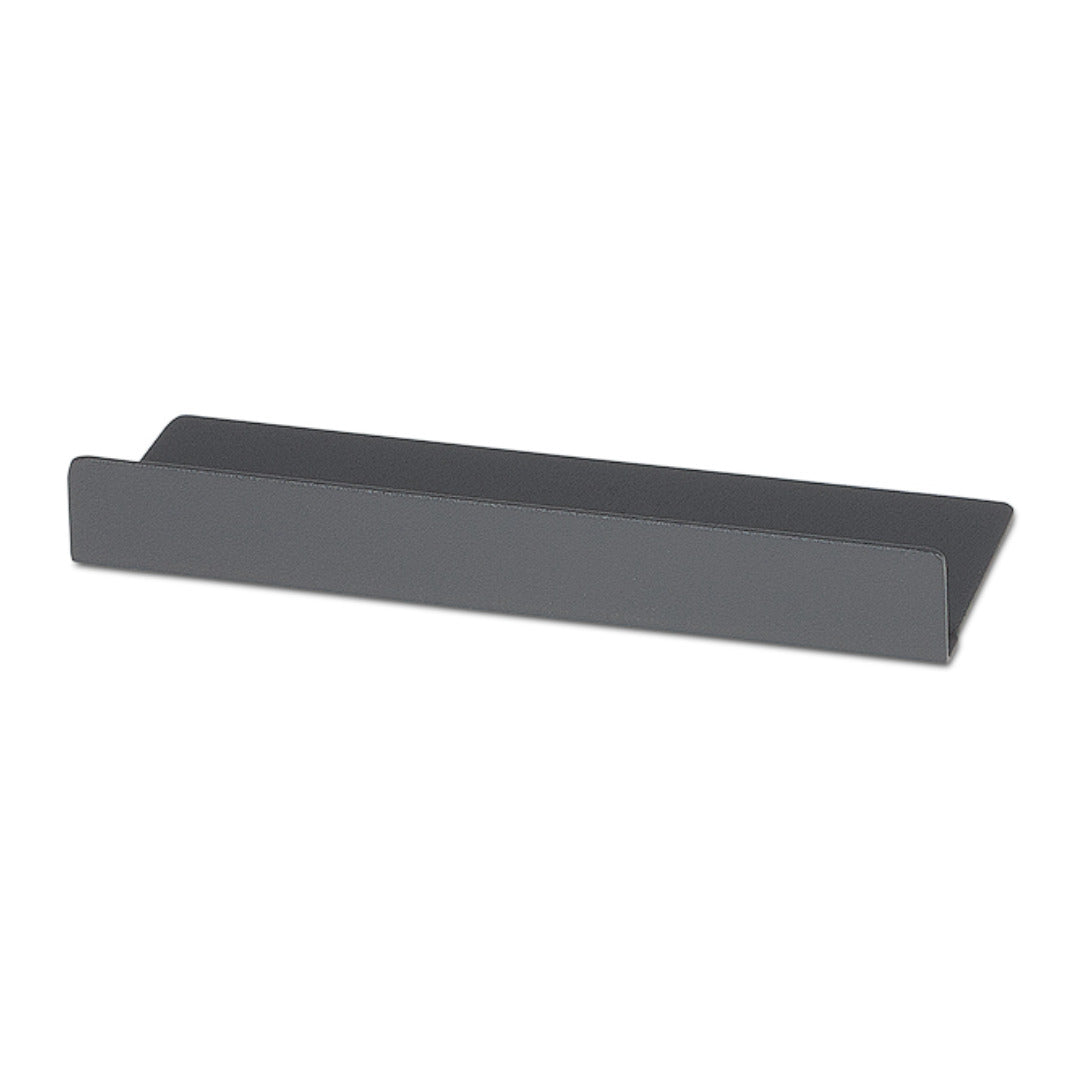

Extron RFF 054 (part number 70-973-01) — quarter-rack-width false faceplate from the Extron RFF Series Basic Rack False Faceplate Kits.

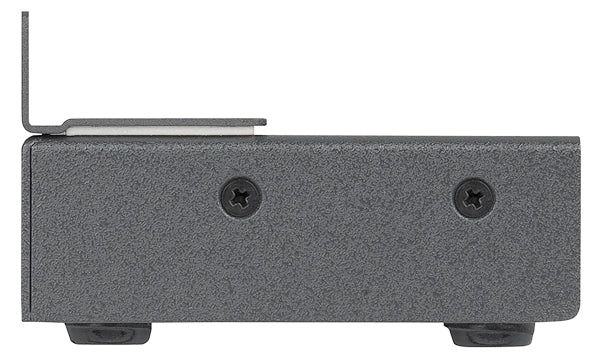

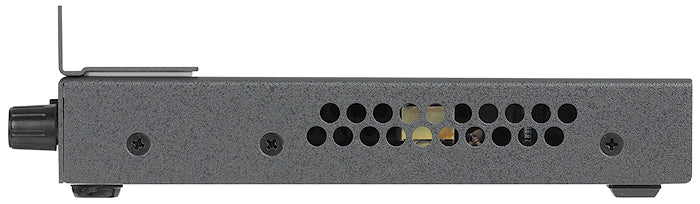

Mount a compact Extron device on a 1U rack shelf and a bare quarter-rack opening is left staring back at you. The RFF 054 fills it. This is the Low Profile member of the RFF line, the one Extron specifies for rack-mountable products built into 1-inch enclosures, and it works with RSF, RSB and RSU 1U rack shelf kits. The result is a shelf that presents as a single unbroken 1U face, and a rack interior whose cooling air is directed through the equipment instead of around it.

Key Capabilities

• Quarter-rack-width blank plate, the Low Profile version of the RFF line
• Specified by Extron for products housed in 1-inch enclosures
• Mounts to RSF, RSB and RSU 1U rack shelf kits
• Supports thermal management by closing open rack-face area
• Gray powder coat finish matched to Extron rack products
• Ships with the mounting hardware needed to fit it

Where It Is Used

Anywhere a half-populated shelf would otherwise be on show: equipment racks in boardrooms and lecture halls, control-room and command-center bays, broadcast and medical imaging racks, and signage or headend cabinets where a tidy, uniform rack face is part of the handover standard.

Specifications at a Glance

• Model: Extron RFF 054, part number 70-973-01
• Version: Low Profile, quarter rack width

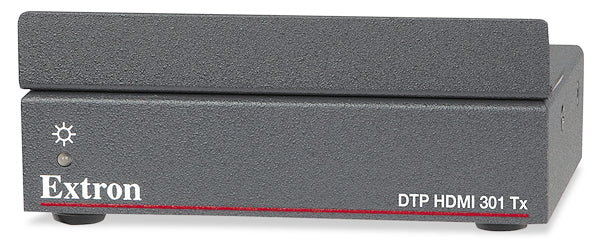

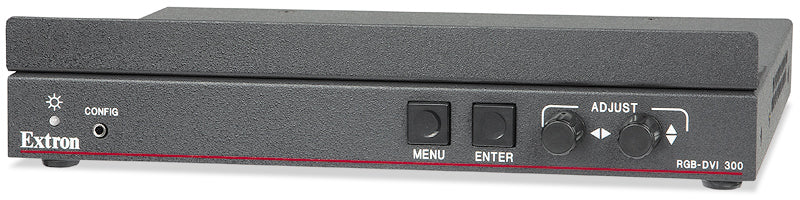

• Enclosure compatibility: Extron 1-inch enclosures such as DTP HDMI 301, DTP DVI 301 and RGB-HDMI 300 A
• Shelf compatibility: RSF, RSB and RSU 1U rack shelf kits
• Finish: gray powder coat; mounting hardware included

Also referenced as Extron RFF054, RFF-054, part number 7097301.
