Extron Retractor XL VGA-A (part number 70-1066-11) — long-reach analog video plus stereo audio on one retractable cable. Extron has retired this part number.

This is the extended-travel member of the VGA-A family. The taller XL housing stores enough of the combined assembly to give a 5 foot (152 cm) pull, which is what wide tables and tiered seating usually demand. One cable serves both connections: the presenter picks up a male 15-pin HD connector with an 8 inch 3.5 mm stereo audio pigtail beside it, while the equipment end carries a matching 15-pin HD with a 24 inch audio pigtail.

Key Capabilities

• Combined VGA and stereo audio run extends up to 5 feet (152 cm) from the enclosure.
• Tabletop connector: male 15-pin HD with an 8 inch male 3.5 mm stereo audio pigtail.
• Equipment connector: male 15-pin HD with a 24 inch male 3.5 mm stereo audio pigtail.

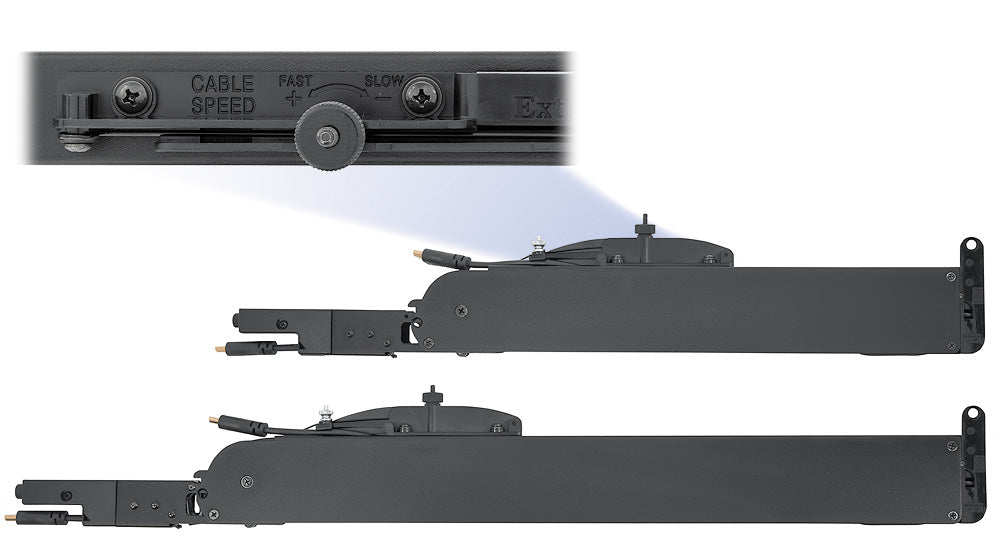

• Return speed adjustable across more than 50 steps from 1.5 to 4.0 seconds.
• 4 foot (1.2 m) pigtail below the surface for the switcher and audio processor.
• Rated beyond 7,500 cycles with a three-year parts and labor warranty on the cable assembly.

Where It Is Used

Wide lecture-hall benches, council and boardroom tables, courtroom counsel positions and training rooms that still present analog video with a separate line-level audio feed. Since the part is retired, it usually serves as an in-kind replacement for an existing Retractor Series XL bay rather than a new specification.

Specifications at a Glance

• Cable: VGA and stereo audio, 5 feet (152 cm) of travel
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLVGAA, Retractor-XL-VGA-A, part number 70106611.
