Extron Retractor XL USB-C Pro 8K (part number 70-1066-56) — 8K-capable USB-C on a five foot retractable run for rooms where the display is demanding and the table is long.

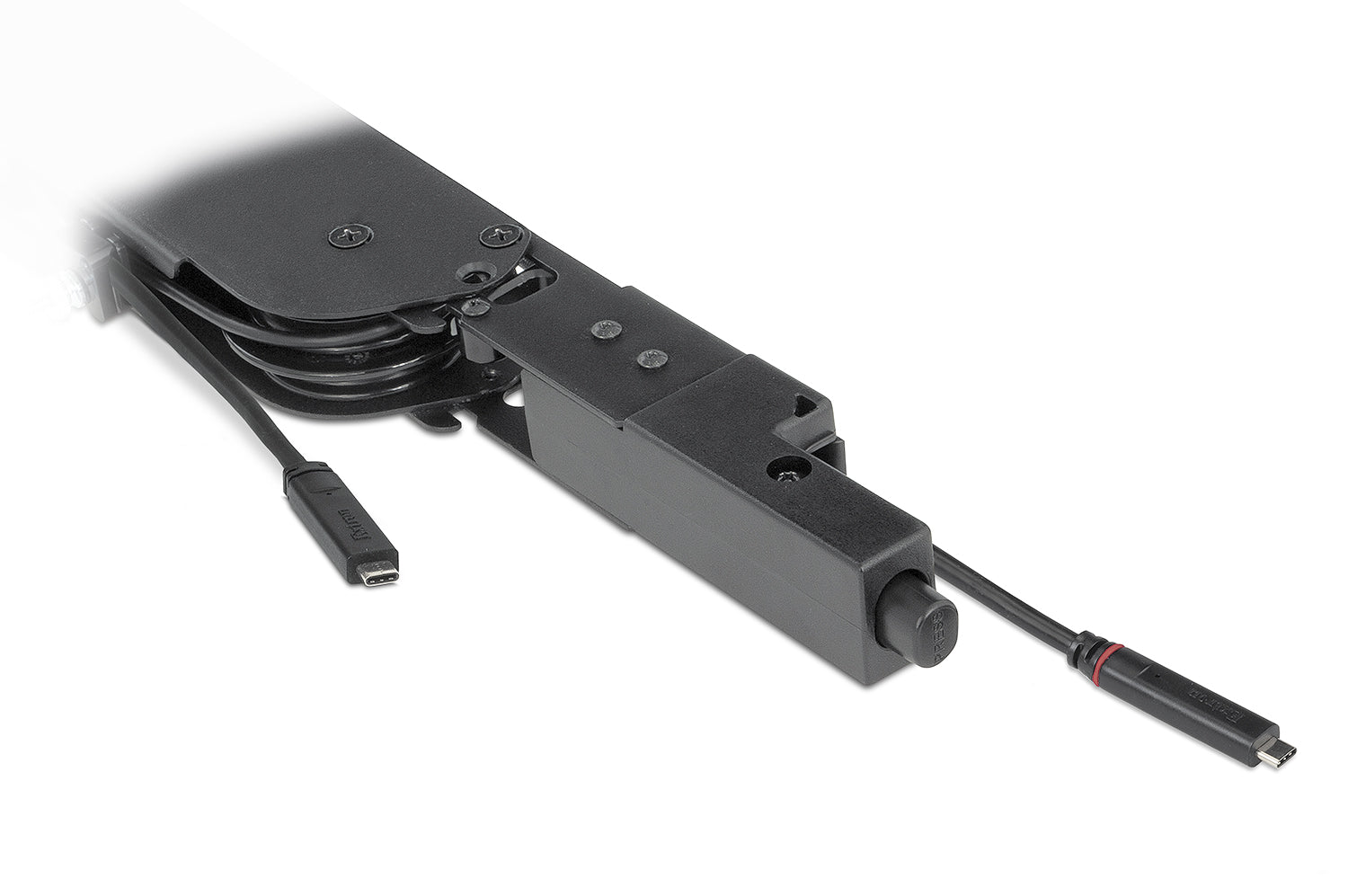

The XL chassis stores more cable than the standard housing, giving a 5 foot (152 cm) pull without giving up bandwidth. This is the red ring cable: DisplayPort Alternate Mode over four HBR3 lanes, which is what supports 7680x4320 at 30 Hz and a 32.4 Gbps ceiling. Device charging up to 60 watts runs on the same connector. Its USB data channel is specified at USB 2.0 rates, so pair it with a dedicated USB module where peripheral throughput matters.

Key Capabilities

• 8K video at 7680x4320 and 30 Hz, 4:4:4 chroma, 8 bits per color.
• 4K options include 4096x2160 at 60 Hz with 12-bit color and 3840x2160 at 120 Hz.
• DP 1.4 over 4 lanes at up to HBR3 for a 32.4 Gbps maximum video data rate.
• Up to DisplayPort 1.4 with HDCP 2.3; frame rates from 24 to 120 fps.
• Delivers up to 60 W at 3 A maximum to the connected device.

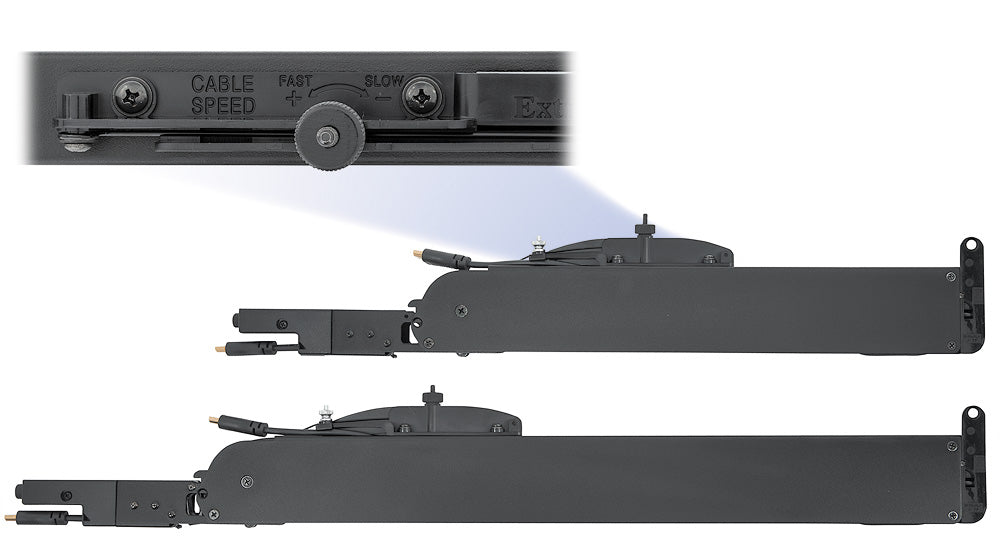

• Cable extends up to 5 feet (152 cm); retraction speed adjustable over 50-plus steps from 1.5 to 4.0 seconds.

Where It Is Used

Large executive boardrooms with very high resolution displays, visualisation and simulation labs, colour-critical design studios, broadcast review desks and medical imaging reading rooms. The extra travel suits deep tables and tiered seating where the source sits far from the enclosure.

Specifications at a Glance

• Connector type: 1 USB-C male to 1 USB-C male
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg); tested to exceed 7,500 cycles
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLUSBCPro8K, Retractor-XL-USB-C-Pro-8K, part number 70106656.
