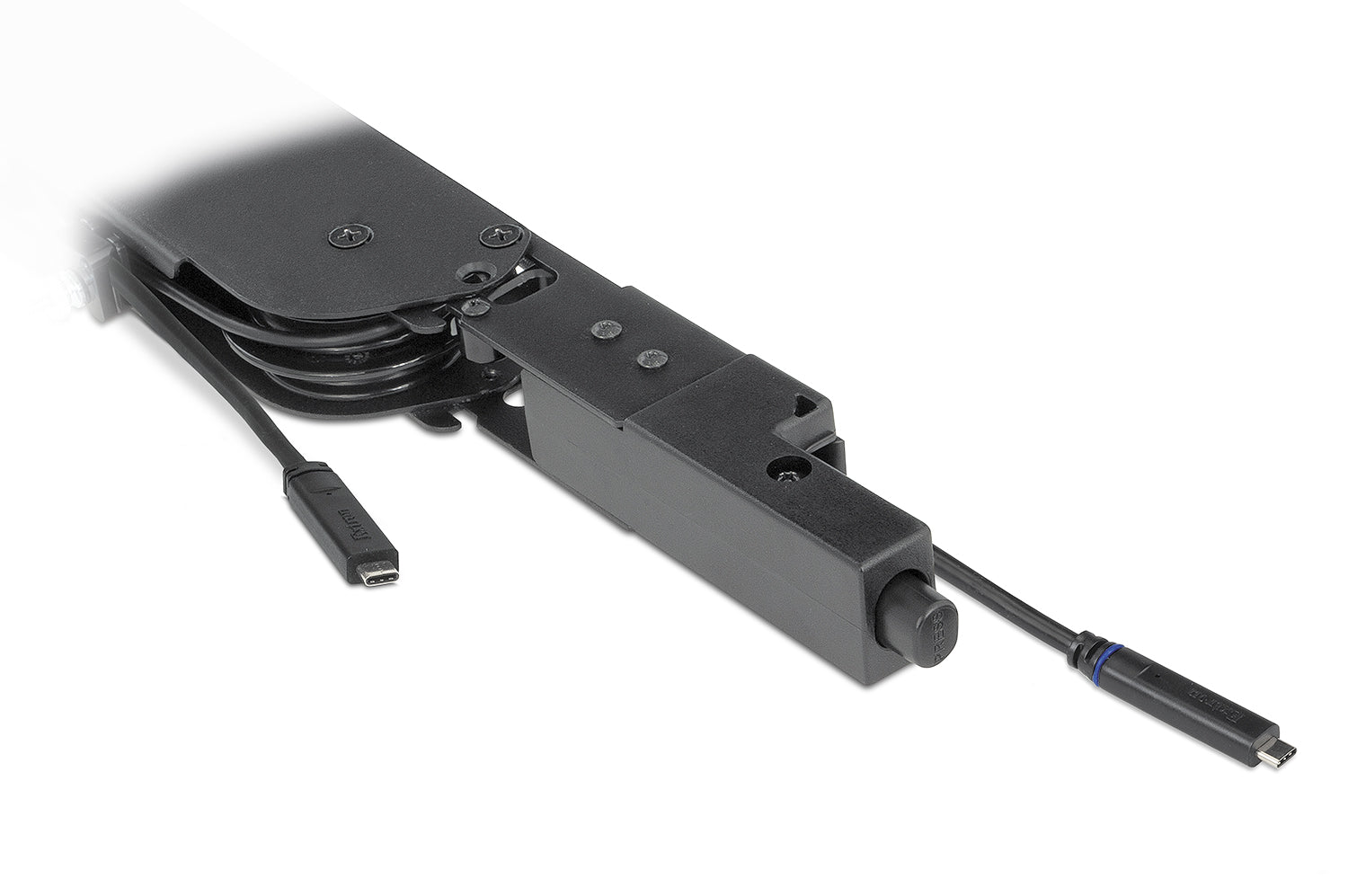

Extron Retractor XL USB-C Pro (part number 70-1066-55) — five feet of retractable USB-C carrying 4K video, SuperSpeed data and 60 watts of charging on one cable.

Single-cable USB-C connectivity only works if the cable actually reaches the laptop. The XL housing stores enough of the blue ring USB-C Pro assembly for a 5 foot (152 cm) pull, which covers wide boardroom tables, tiered classrooms and lectern-to-table geometry. Video travels as DisplayPort Alternate Mode, data runs at USB 3.2 Gen 1 rates, and the same connector charges the device — no dongle, no second cable.

Key Capabilities

• Resolutions to 4096x2160 at 30 Hz, 4:4:4 chroma, 8 bits per color.
• DisplayPort Alt Mode running DP 1.4 over 2 lanes at up to HBR3, giving 16.2 Gbps maximum video data rate.
• Signal handling up to DisplayPort 1.4 with HDCP 2.3.
• USB 3.2 Gen 1 data to 5 Gbps, compatible back to USB 2.0 and USB 1.1, with no built-in hub.
• Charges the connected device at up to 60 W and 3 A maximum current.

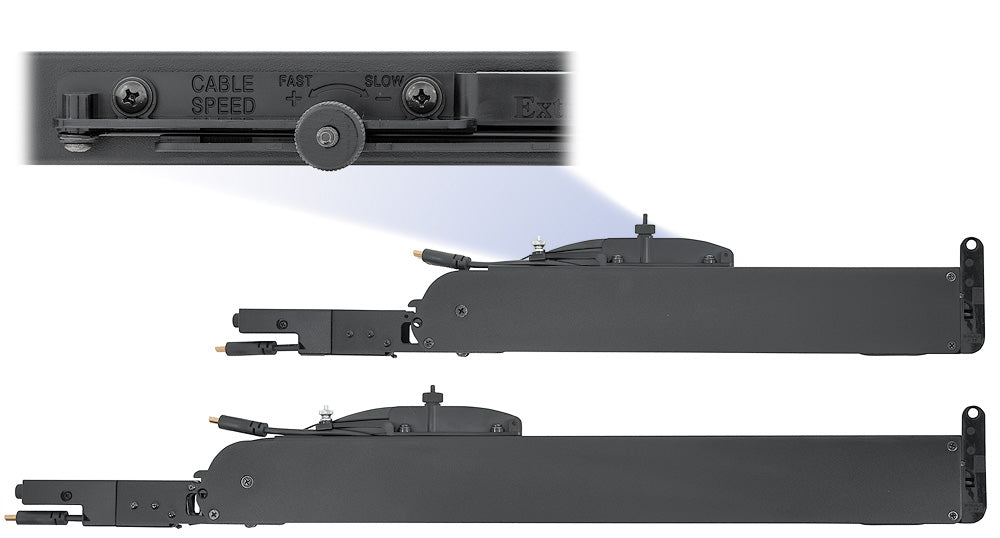

• Cable extends up to 5 feet (152 cm); return speed set across 50-plus steps between 1.5 and 4.0 seconds.

Where It Is Used

Large hybrid meeting tables, executive boardrooms, university collaboration benches, media production desks and clinical review positions where the presenter's seat is well away from the cable well. Extron includes connector labels for USB-C video modules so an AV-capable cable is not confused with a charge-only run.

Specifications at a Glance

• Connector type: 1 USB-C male to 1 USB-C male
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg); tested to exceed 7,500 cycles

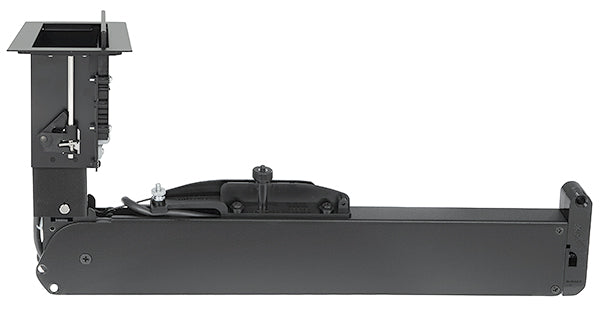

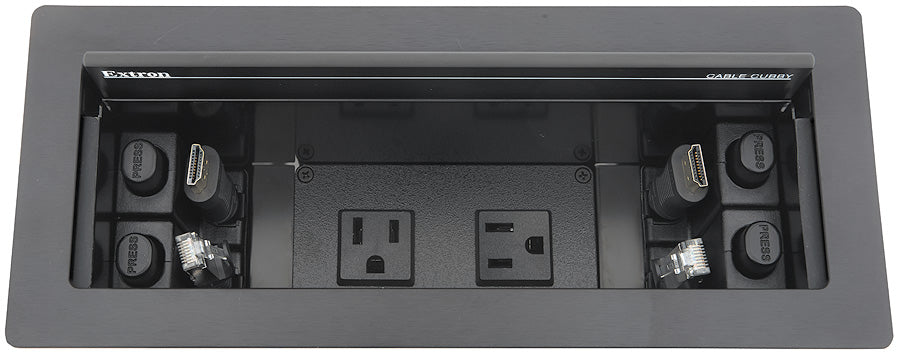

• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLUSBCPro, Retractor-XL-USB-C-Pro, part number 70106655.
