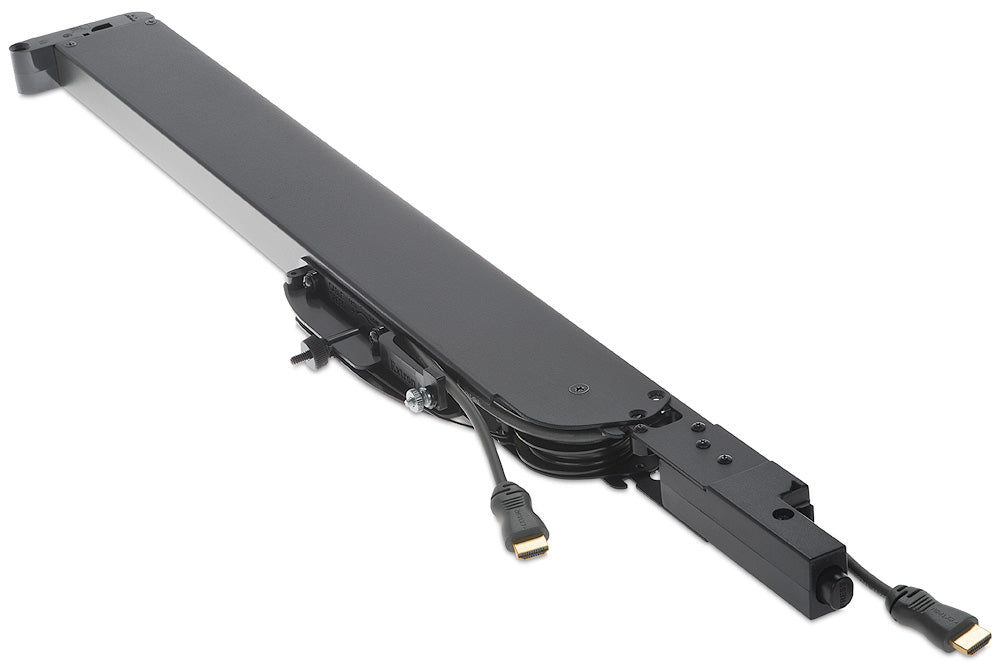

Extron Retractor XL USB-C Power (part number 70-1066-50) — long-travel USB-C charging for tables where a three foot cable falls short.

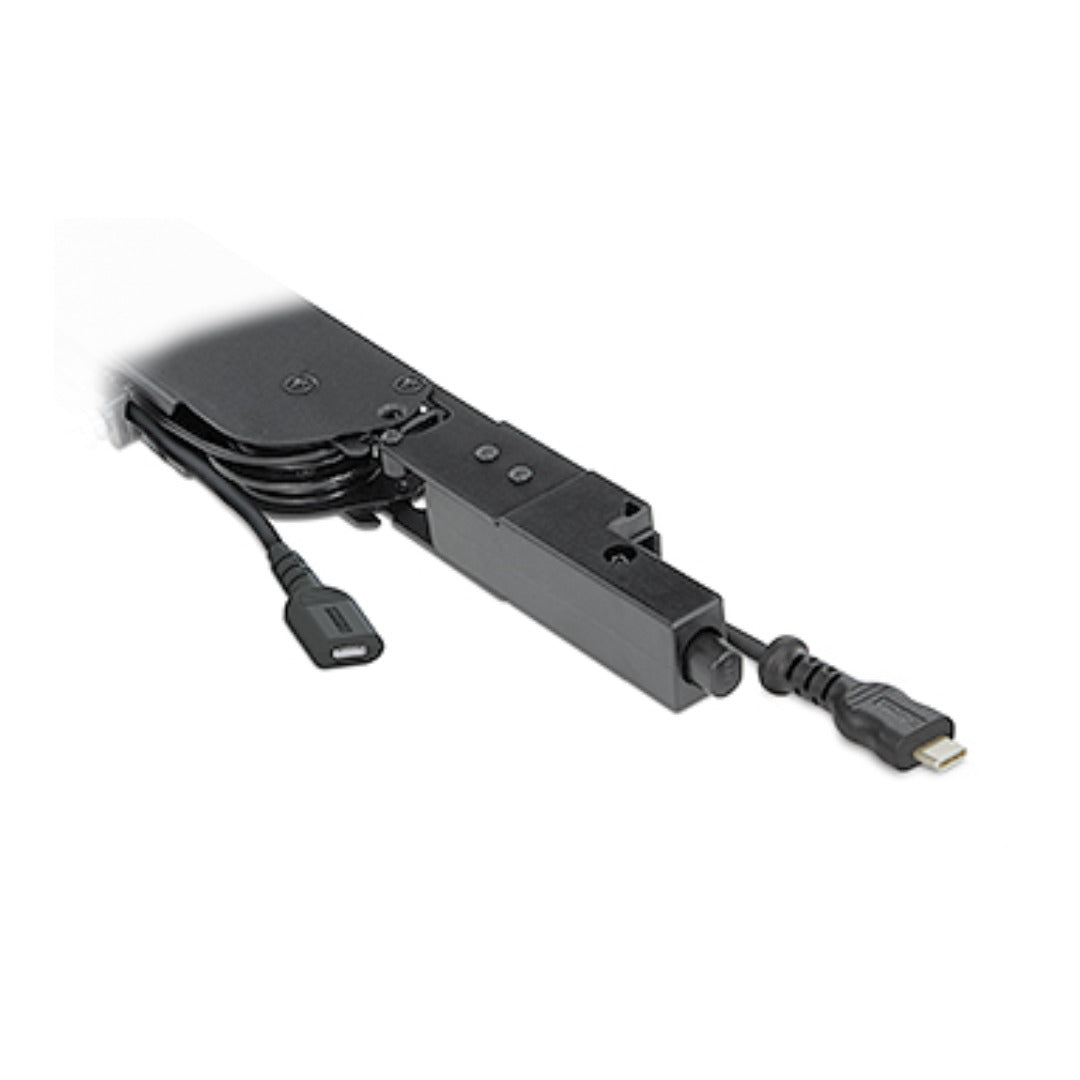

The XL enclosure is taller than the standard Retractor and stores enough of the power assembly for a 5 foot (152 cm) pull. That reach matters at large boardroom tables and in tiered rooms where the enclosure and the seat are nowhere near each other. Under the surface the cable ends in a female USB-C receptacle so the integrator connects a supply chosen for the room; on top the user finds a male USB-C plug rated at 100 watts.

Key Capabilities

• Power capacity of 100 watts (5 A) on the retractable USB-C run.
• Cable extends up to 5 feet (152 cm) and holds anywhere within that travel.
• 1 male USB-C on the tabletop end, 1 female USB-C on the equipment end.
• Specified for USB power only — add a separate module where video or data is needed.

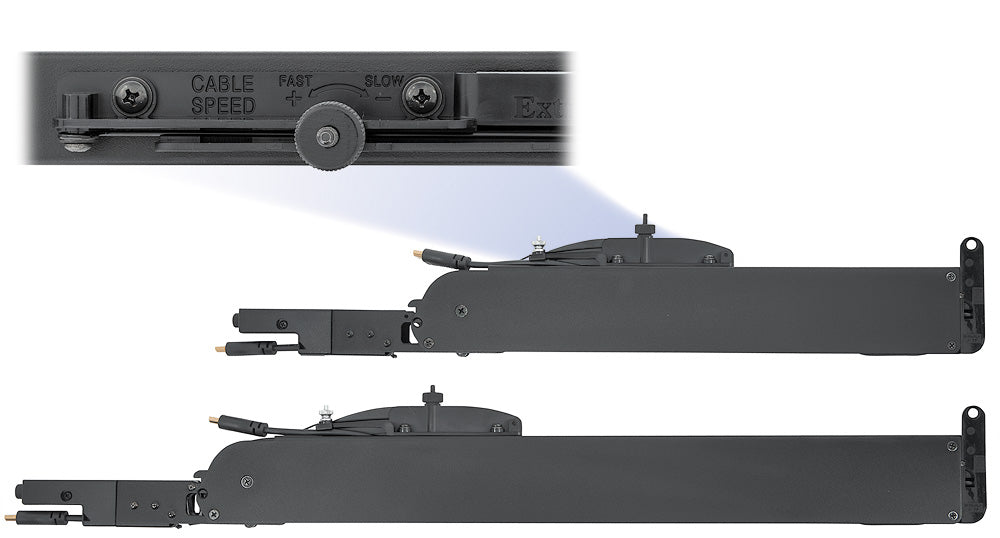

• Return speed set across more than 50 steps between 1.5 and 4.0 seconds.
• Tested to exceed 7,500 cycles; three-year parts and labor warranty covers the cable assembly.

Where It Is Used

Executive boardroom tables, large training and collaboration spaces, library study areas, council chambers and lounge seating where charging has to be available at every position without visible cable clutter. Vertical installation needs roughly 30 inches (76.2 cm) of clearance beneath the furniture.

Specifications at a Glance

• Standard: USB power only
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg)

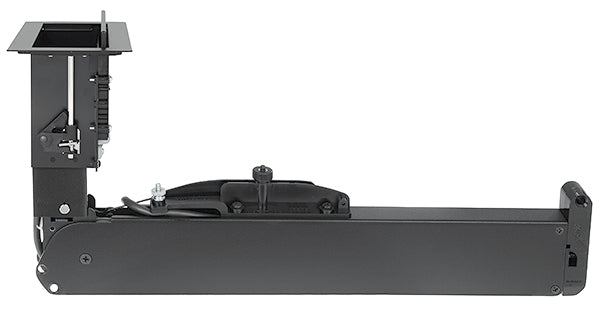

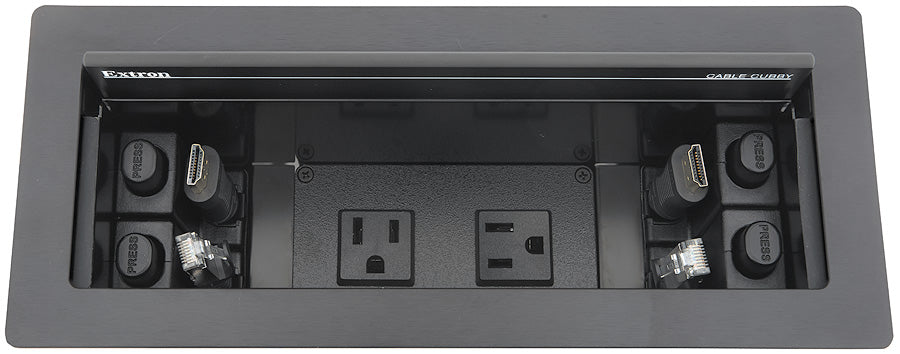

• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLUSBCPower, Retractor-XL-USB-C-Power, part number 70106650.
