Extron Retractor XL USB-C - HDMI (part number 70-1066-51) — five feet of retractable USB-C to HDMI, so a modern laptop reaches an HDMI display from anywhere at the table.

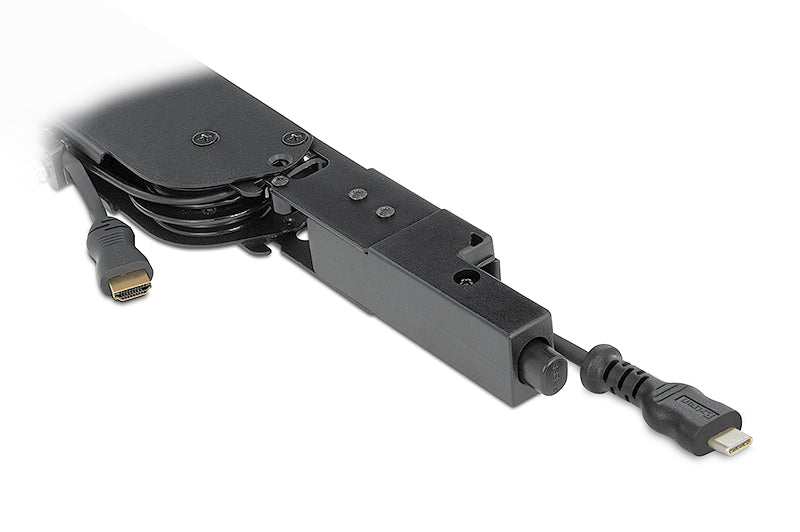

The XL housing carries more cable than the standard Retractor, which is what makes a 5 foot (152 cm) pull possible. The conversion is built into the assembly: male USB-C at the tabletop end, male HDMI type A on the equipment side. Sources must support DisplayPort Alternate Mode. Extron ships connector labels with USB-C video modules, so nobody confuses this run with a charge-only cable in the same enclosure.

Key Capabilities

• USB-C to HDMI on a single continuous run extending up to 5 feet (152 cm).
• Maximum video data rate of 10.2 Gbps, equivalent to 3.4 Gbps per color.
• Handles HDMI 1.4 and DisplayPort 1.1a signalling.
• Frame rates from 24 to 60 fps, chroma sampling 4:4:4, 4:2:2 or 4:2:0, 8 bits per color.

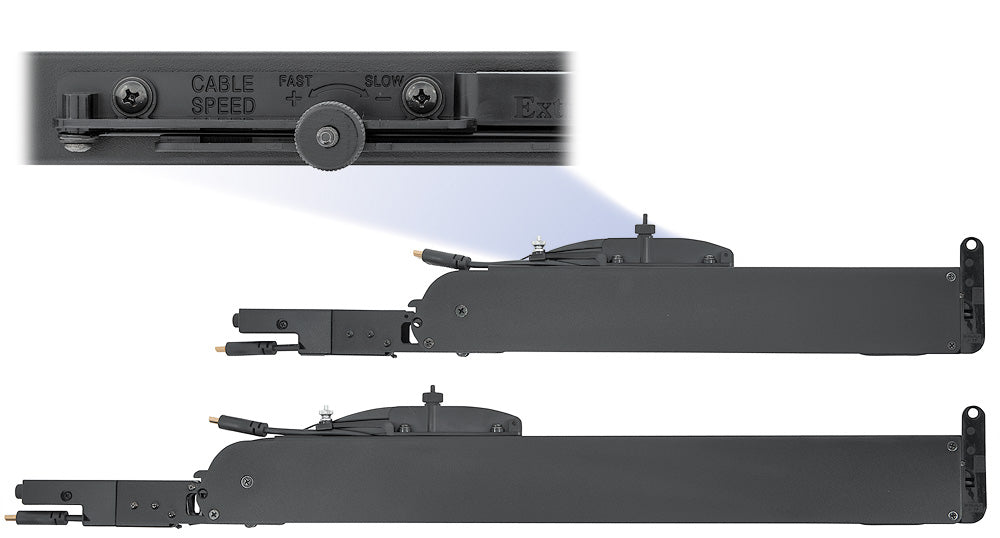

• More than 50 retraction speed steps between 1.5 and 4.0 seconds.
• 4 foot (1.2 m) pigtail underneath for the switcher, extender or display input.

Where It Is Used

Wide boardroom tables, tiered classrooms, divisible training rooms and conference spaces with mixed laptop fleets, where the display estate is HDMI and the sources are USB-C only. Vertical mounting wants about 30 inches (76.2 cm) of clearance beneath the surface.

Specifications at a Glance

• Connector type: 1 male USB-C to 1 male HDMI type A

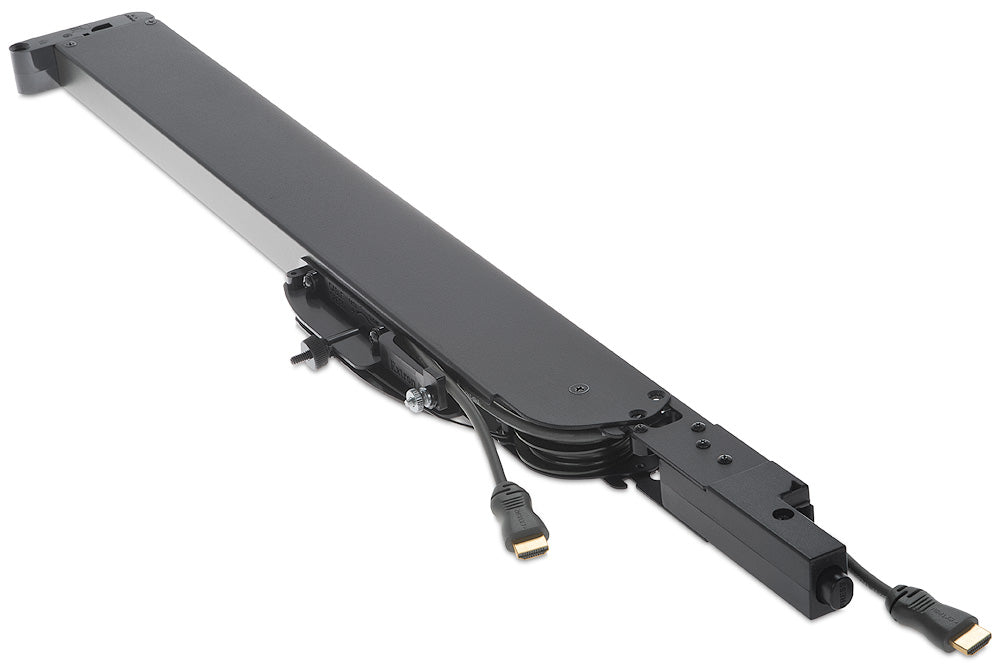

• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg); tested to exceed 7,500 cycles
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLUSBCHDMI, Retractor-XL-USB-C-HDMI, part number 70106651.
