Extron Retractor XL USB-C - DisplayPort (part number 70-1066-52) — a five foot retractable USB-C to DisplayPort run. Extron has retired this part number.

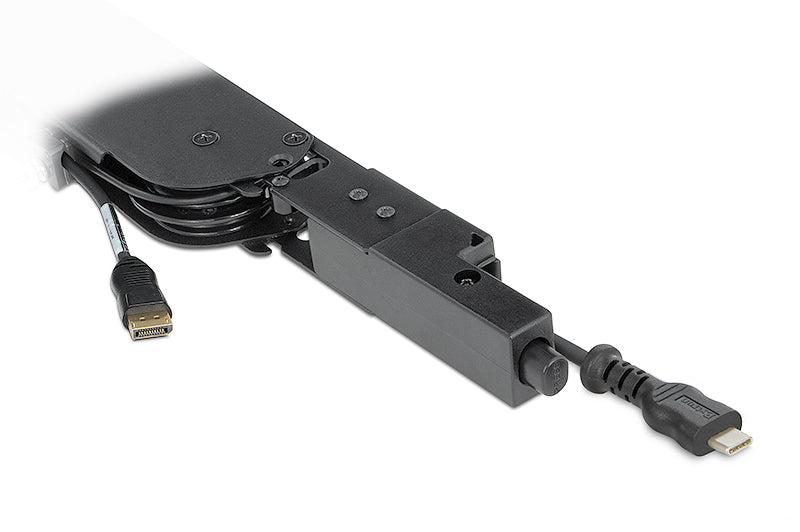

Where the standard version stops at three feet, the XL housing holds enough of the assembly for a 5 foot (152 cm) pull. The conversion sits inside the cable: male USB-C at the surface, male latching DisplayPort at the equipment end. The latch matters on a long run, because the under-table end of the cable is exactly where an unlatched DisplayPort plug tends to work its way loose. Sources must support DisplayPort Alternate Mode.

Key Capabilities

• USB-C to DisplayPort on a continuous cable extending up to 5 feet (152 cm).
• Maximum video data rate of 10.8 Gbps, equivalent to 2.7 Gbps per lane.
• Signal support for HDMI 1.4 and DisplayPort 1.1a.
• Frame rates from 24 to 60 fps, chroma 4:4:4, 4:2:2 or 4:2:0, at 8 bits per color.
• Latching DisplayPort connector on the equipment side.

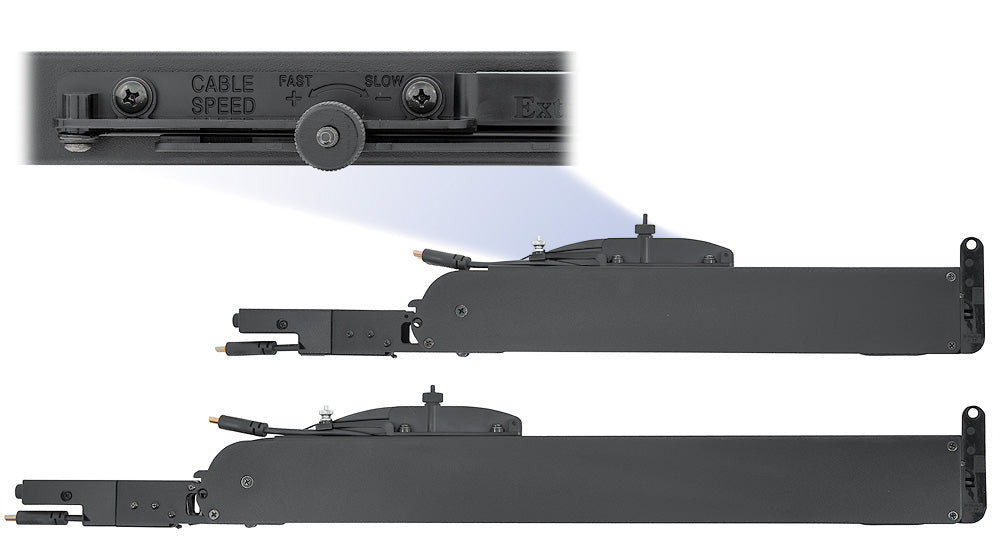

• Speed control across more than 50 steps between 1.5 and 4.0 seconds.

Where It Is Used

Large design and engineering benches, imaging review rooms with DisplayPort diagnostic monitors, control room consoles and wide conference tables feeding a DisplayPort switcher. As a retired part it is normally purchased to match an existing Retractor Series XL enclosure rather than for new work.

Specifications at a Glance

• Connector type: 1 male USB-C to 1 male latching DisplayPort
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg); tested to exceed 7,500 cycles
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLUSBCDisplayPort, Retractor-XL-USB-C-DisplayPort, part number 70106652.
