Extron Retractor XL USB 2.0 (part number 70-1066-05) — a long-travel retractable USB Type-A drop for tables where the peripheral sits well away from the enclosure.

USB peripherals rarely end up next to the cable well. Cameras clip to a display, touch overlays sit at the far edge, and a presenter's laptop lands wherever the chair is free. The XL housing holds enough cable for a 5 foot (152 cm) pull, so the Type-A connector actually reaches. The cable locks at whatever length the user stops at, then travels back into the enclosure under governed tension when the release button is held.

Key Capabilities

• USB Type-A cable extends up to 5 feet (152 cm) from the enclosure face.
• Conforms to the USB 2.0 standard with high speed throughput of 480 Mbps.

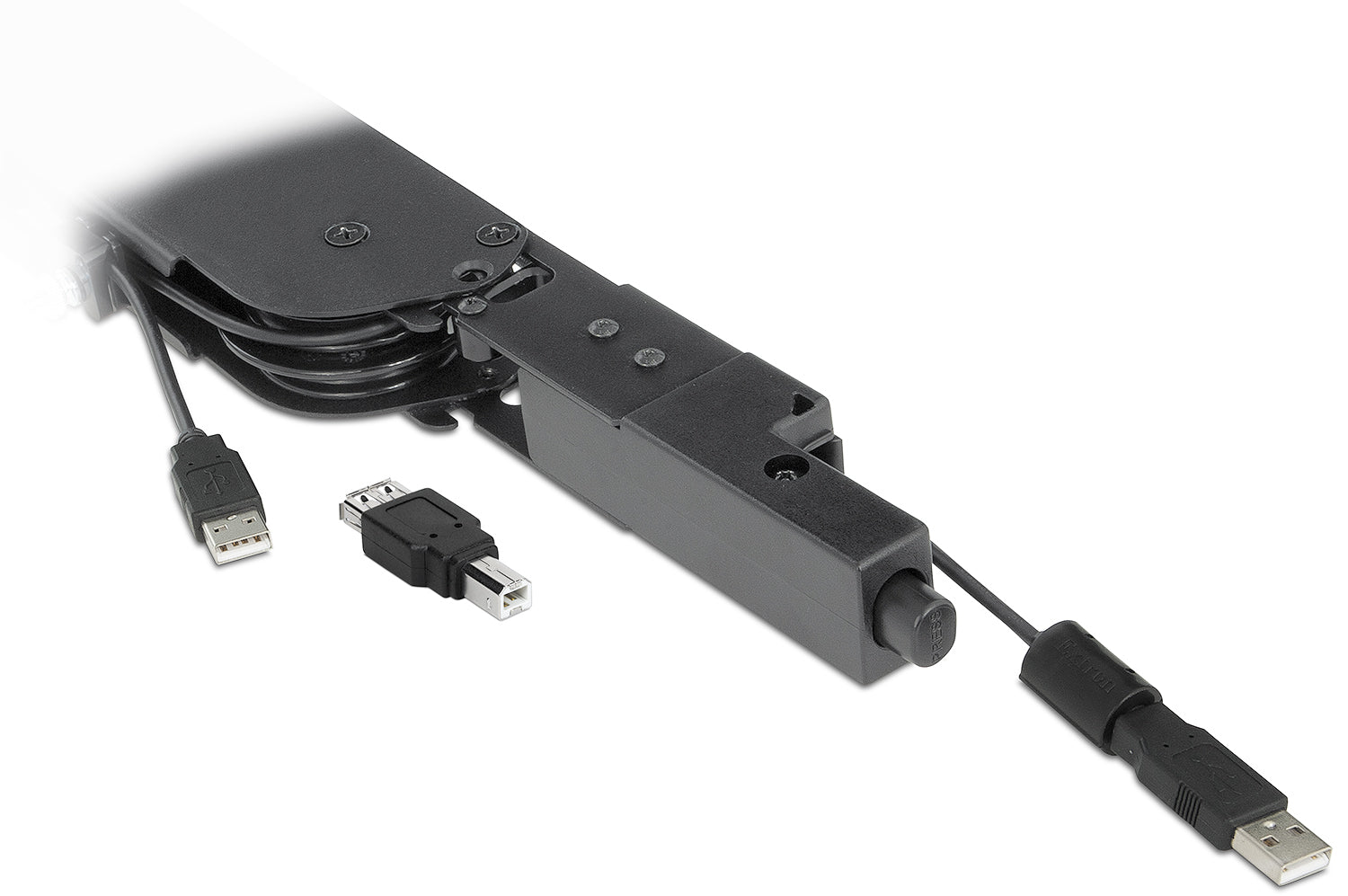

• Male USB 2.0 Type A to male Type A on a single continuous cable.

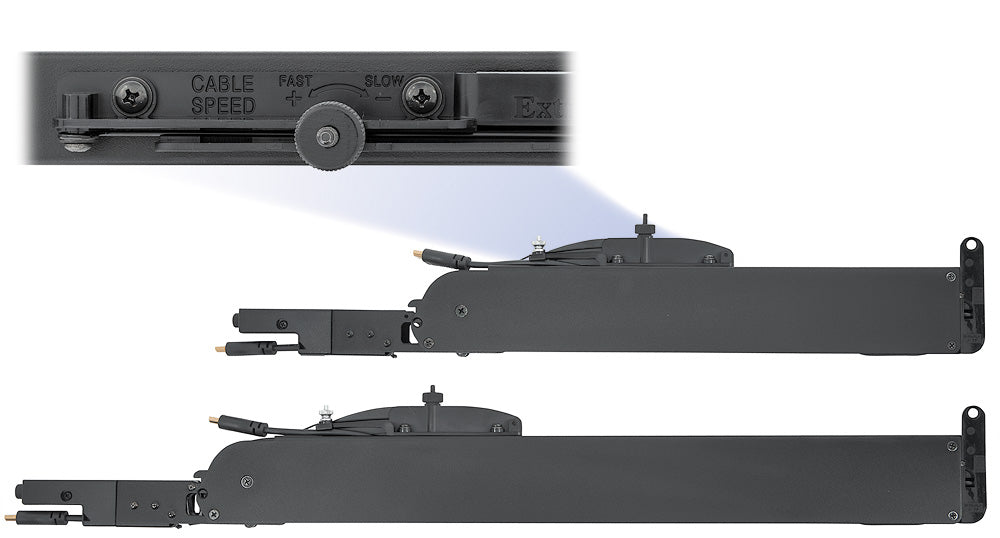

• Speed control provides more than 50 adjustment steps between 1.5 and 4.0 seconds.
• 4 foot (1.2 m) pigtail beneath the surface for the room PC, codec or USB switcher.
• Tested beyond 7,500 cycles with a three-year parts and labor warranty on the cable assembly.

Where It Is Used

Large hybrid conference tables that hand USB camera and microphone hosting to a guest laptop, divisible training rooms, courtroom evidence stations, and clinical review desks with USB instruments. Vertical mounting needs about 30 inches (76.2 cm) of under-table clearance; horizontal and angular installs are also supported.

Specifications at a Glance

• Standard: USB 2.0, high speed 480 Mbps
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLUSB20, Retractor-XL-USB-2-0, part number 70106605.
