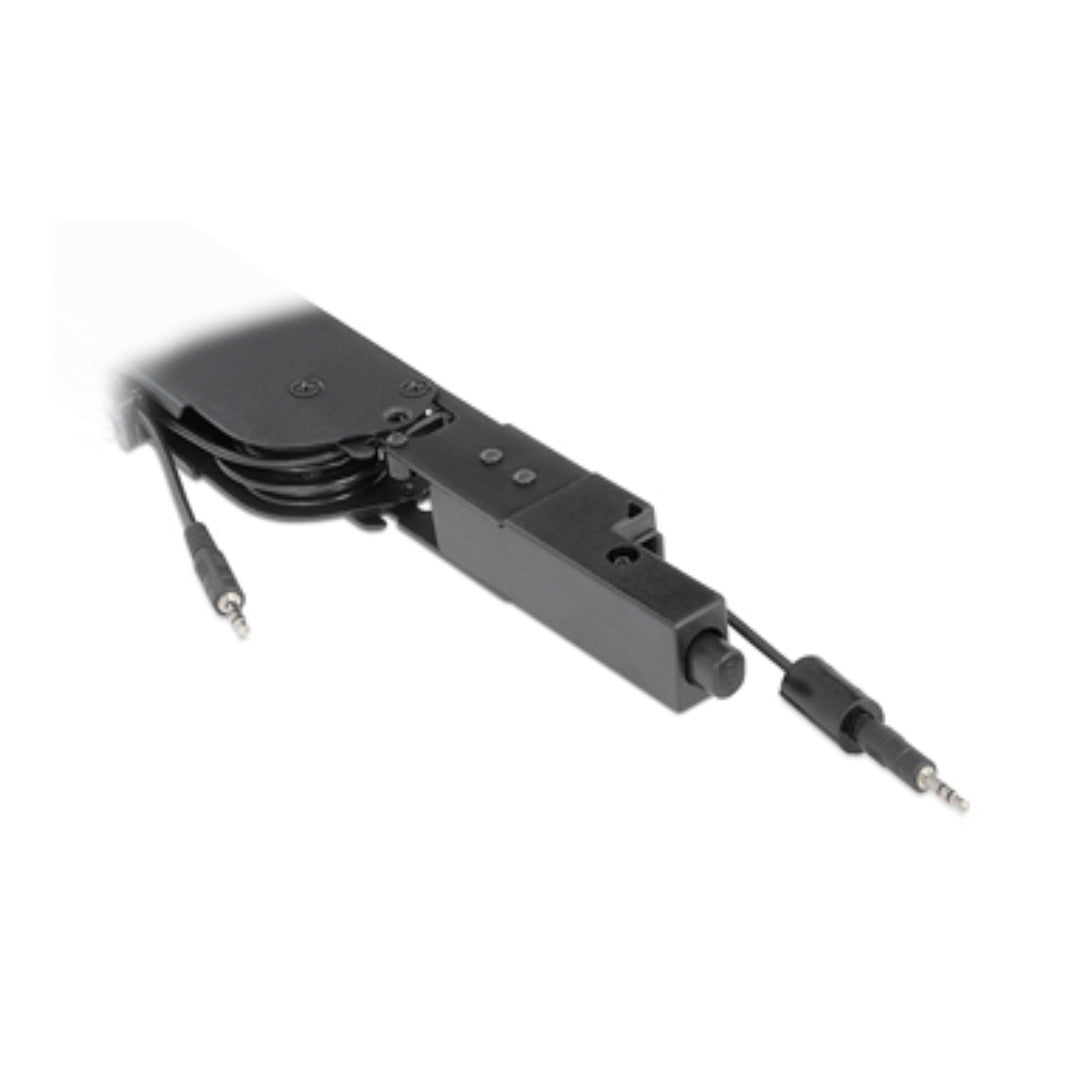

Extron Retractor XL PC Audio (part number 70-1066-02) — a long-reach retractable 3.5 mm stereo audio drop. This part number has been retired by Extron.

The XL housing is roughly six inches taller than the standard Retractor and stores enough cable for a 5 foot (152 cm) pull. On a wide table that is the difference between the audio connector reaching a laptop at the far chair and not reaching it at all. One continuous TRS cable runs from the equipment side to the tabletop connector; the mechanism holds the cable at any extension and returns it only when the release button is pressed.

Key Capabilities

• Analog stereo audio cable extends up to 5 feet (152 cm) from the enclosure face.
• Male 3.5 mm stereo TRS at both ends, with no couplers interrupting the run.

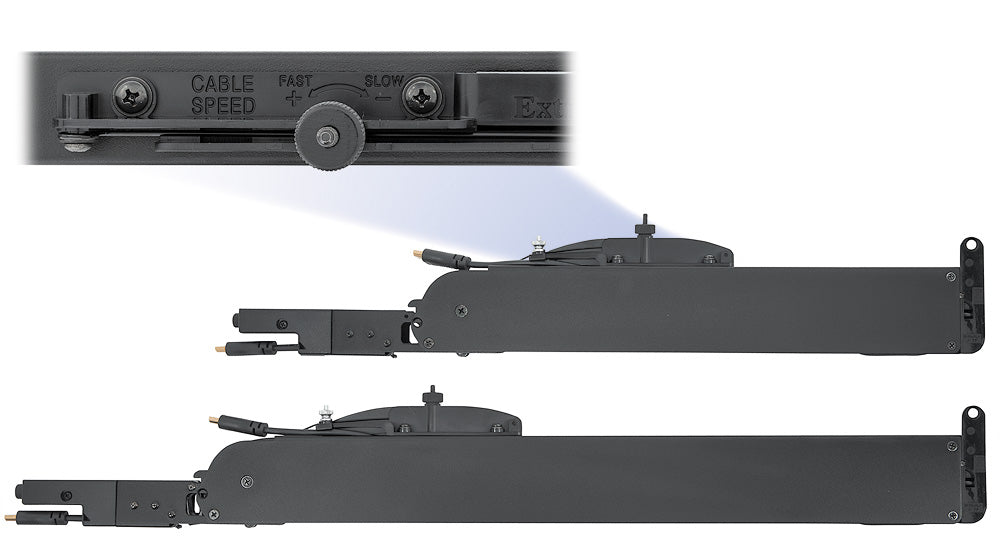

• Return rate is tuned at commissioning across more than 50 steps from 1.5 to 4.0 seconds.
• 4 foot (1.2 m) pigtail underneath reaches the DSP, mixer or amplifier.
• Mechanism tested to exceed 7,500 extension and retraction cycles.
• Three-year parts and labor warranty covering the preinstalled cable assembly.

Where It Is Used

Wide conference and council tables feeding a room DSP, tiered lecture theatres, language and music labs, and assistive listening positions where the audio jack has to travel a long way from the enclosure. As a retired part number it is generally purchased to match an existing Retractor Series XL install.

Specifications at a Glance

• Connector type: 1 male 3.5 mm stereo audio TRS to 1 male 3.5 mm TRS
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLPCAudio, Retractor-XL-PC-Audio, part number 70106602.
