Extron Retractor XL Network CAT 6 Retraction Module
- • Extron Retractor XL CAT 6 network module
- • Shielded CAT 6, 5 ft (152 cm) of travel
- • Male shielded RJ-45 at both ends
- • Sales, replacement and exchange
- • Part# 70-1066-03 / 70106603
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron Retractor XL Network (part number 70-1066-03) - an extended-travel shielded CAT 6 retractor for tables where three feet of cable simply does not reach.
The XL chassis is taller than the standard Retractor housing, which lets it store enough shielded CAT 6 for a 5 foot (152 cm) pull above the work surface. That extra reach matters on wide boardroom tables, on tiered classroom benches and wherever the enclosure sits at one end of a long desk. The RJ-45 connector stops and holds wherever the user lets go; the release button returns it under governed tension instead of a spring snap.
Key Capabilities
- Shielded CAT 6 network cable extends up to 5 feet (152 cm) from the enclosure face.

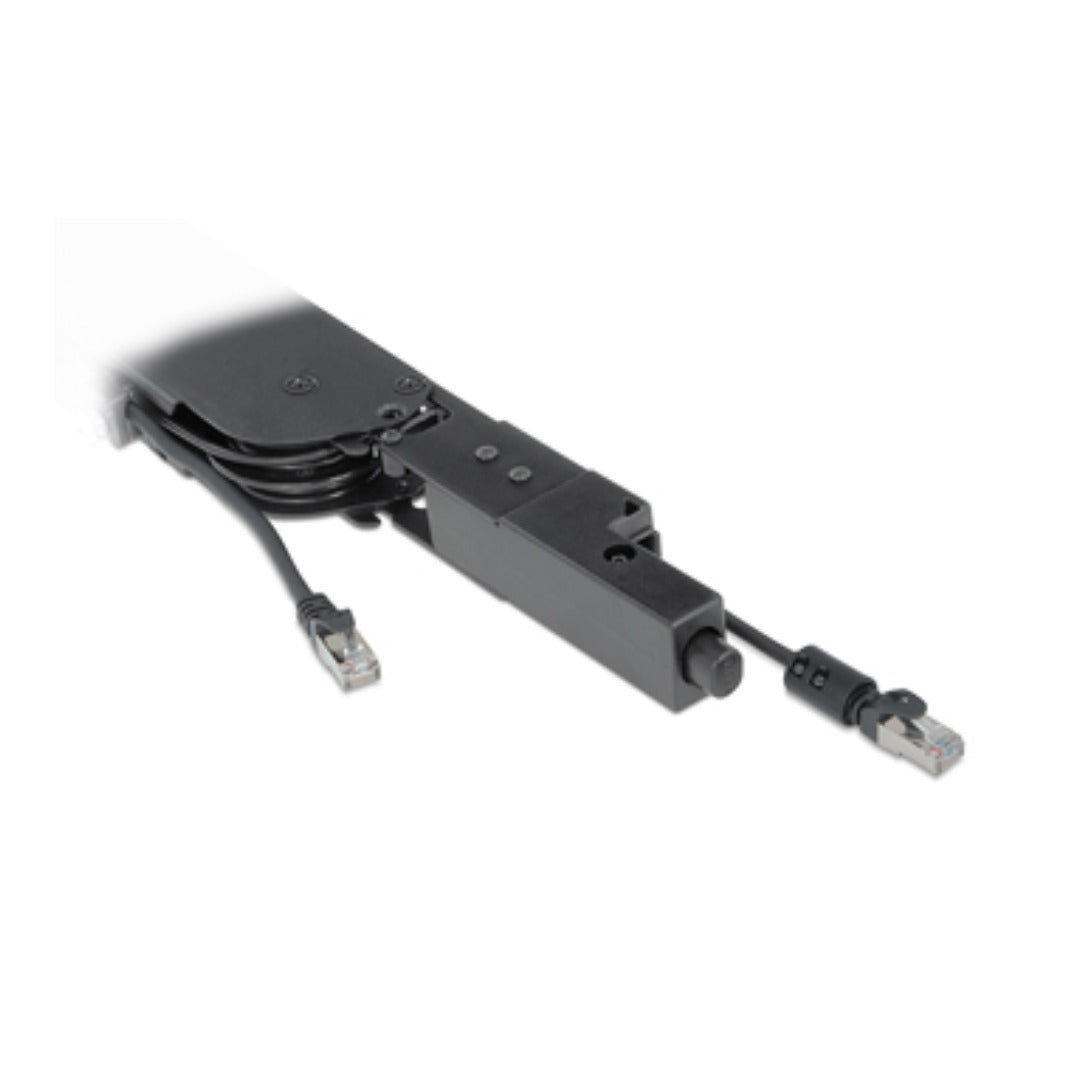

- Male shielded RJ-45 terminations at both ends of the continuous run.

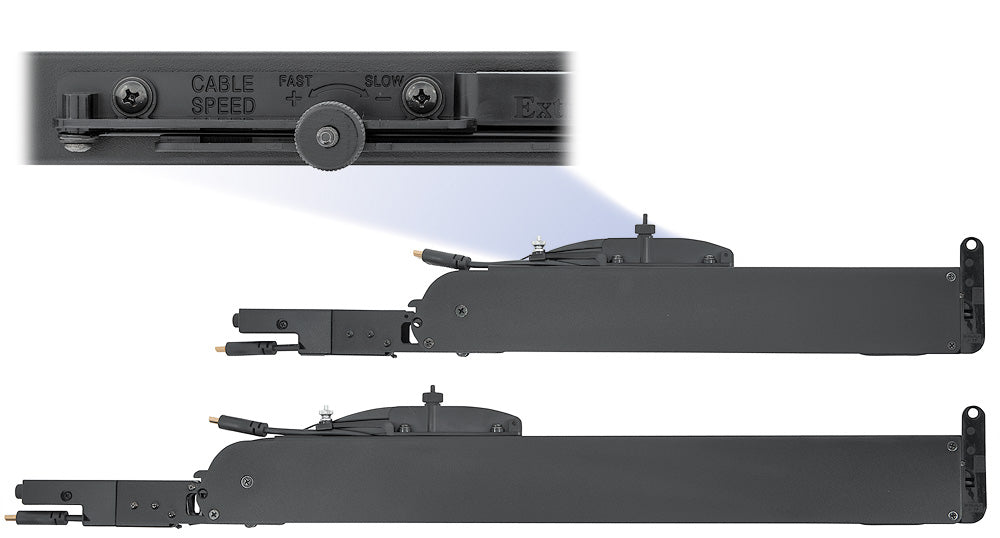

- Retraction timing is adjustable across more than 50 steps between 1.5 and 4.0 seconds.
- 4 foot (1.2 m) pigtail beneath the surface lands directly on a switch, patch panel or floor box.
- Life expectancy tested beyond 7,500 extension and retraction cycles.
- Three-year parts and labor warranty that includes the preinstalled cable assembly.
Where It Is Used
Large conference and council tables, divisible training suites, courtroom counsel and clerk positions, broadcast and network operations desks, and clinical review workstations that must stay on a wired segment. Vertical installation wants roughly 30 inches (76.2 cm) of clearance under the furniture; horizontal and angular mounting are alternatives where headroom is short.
Specifications at a Glance
- Cable standard: CAT 6, shielded
- Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
- Product weight: 3.5 lbs (1.6 kg)

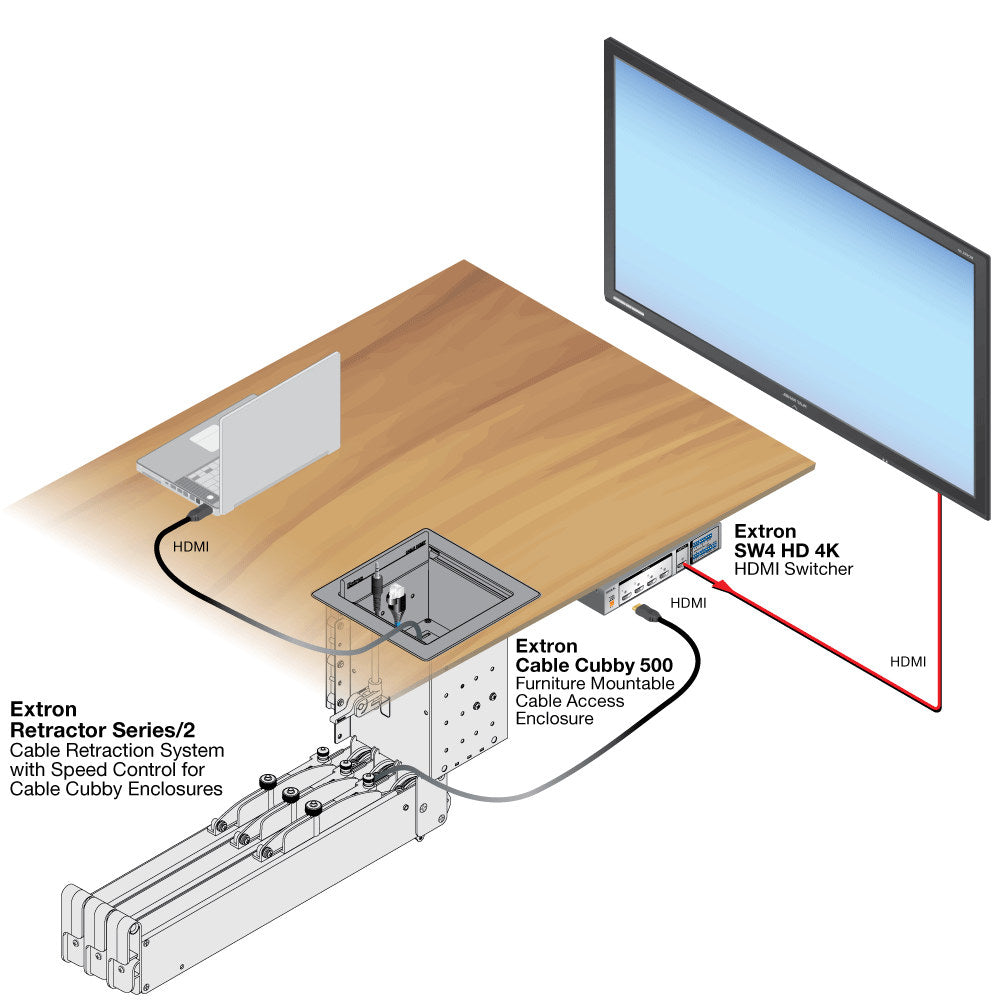

- Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
- Regulatory compliance: RoHS, WEEE
Frequently asked questions about the Extron Retractor XL Network CAT 6 Retraction Module
Does Ampronix sell the Extron Retractor XL Network CAT 6 Retraction Module?
Yes. Ampronix is an authorized Extron distributor and sells the Extron Retractor XL Network CAT 6 Retraction Module (70-1066-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron Retractor XL Network CAT 6 Retraction Module?
Yes. Ampronix provides sales, replacement and exchange for the Extron Retractor XL Network CAT 6 Retraction Module. Call Ampronix for a quote.
Is the Extron Retractor XL Network CAT 6 Retraction Module listed under other names?
Yes. The Extron Retractor XL Network CAT 6 Retraction Module is also referenced as Extron RetractorXLNetwork, Retractor-XL-Network, part number 70106603.
What are the key features of the Extron Retractor XL Network CAT 6 Retraction Module?
Key points: Shielded CAT 6 network cable extends up to 5 feet (152 cm) from the enclosure face; Male shielded RJ-45 terminations at both ends of the continuous run; Retraction timing is adjustable across more than 50 steps between 1.5 and 4.0 seconds; 4 foot (1.2 m) pigtail beneath the surface lands directly on a switch, patch panel or floor box. Call Ampronix to confirm details for your application.
Also referenced as Extron RetractorXLNetwork, Retractor-XL-Network, part number 70106603.
