Extron Retractor XL Mini DisplayPort-DisplayPort (part number 70-1066-18) — the extended-travel Mini DisplayPort to DisplayPort retractor. Extron has retired this part number.

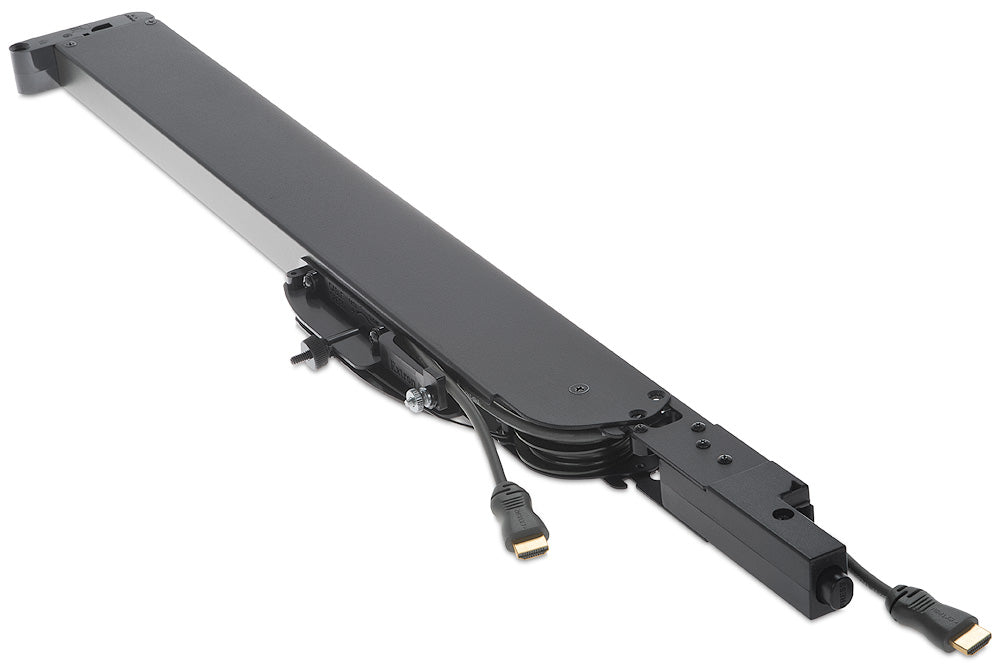

The XL enclosure is taller than the standard Retractor and stores enough cable for a 5 foot (152 cm) pull, which is what deep tables and tiered seating need. One continuous assembly runs from a male latching DisplayPort under the surface to a male Mini DisplayPort connector on top. Nothing plugs together in the middle, so there is no adapter to lose and no coupler to introduce a marginal connection.

Key Capabilities

• Mini DisplayPort to DisplayPort on a continuous run extending up to 5 feet (152 cm).
• Maximum video data rate of 10.8 Gbps, equivalent to 2.7 Gbps per lane.
• Signal support for HDMI 1.4 and DisplayPort 1.1a.
• Frame rates from 24 to 60 fps, chroma 4:4:4, 4:2:2 or 4:2:0, 8 bits per color.

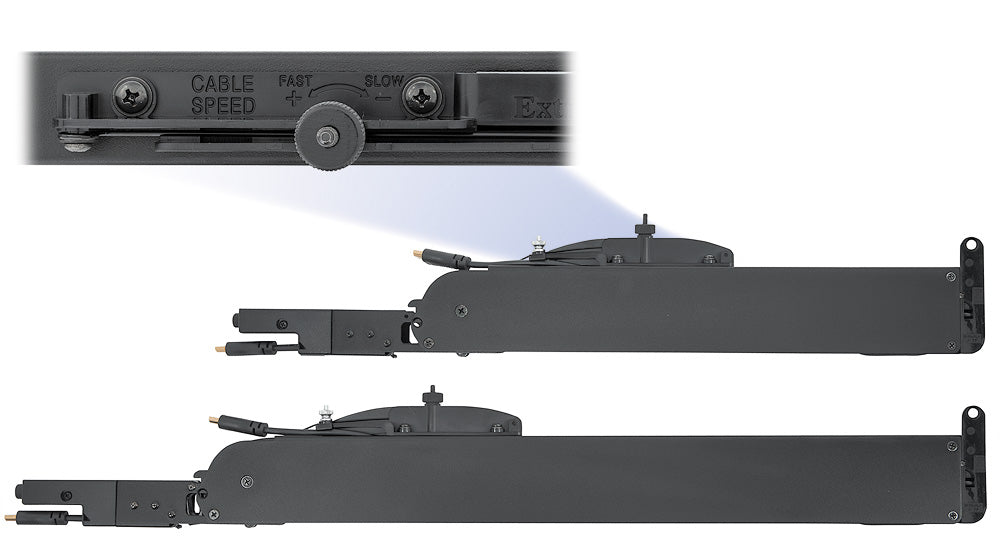

• Return speed adjustable across more than 50 steps between 1.5 and 4.0 seconds.
• 4 foot (1.2 m) pigtail underneath for the switcher, scaler or display input.

Where It Is Used

Large engineering and design benches, visualisation and imaging suites, editing rooms and wide conference tables carrying Mini DisplayPort sources. Because Extron has retired the part, it is normally bought to keep an existing Retractor Series XL enclosure consistent rather than for a new design.

Specifications at a Glance

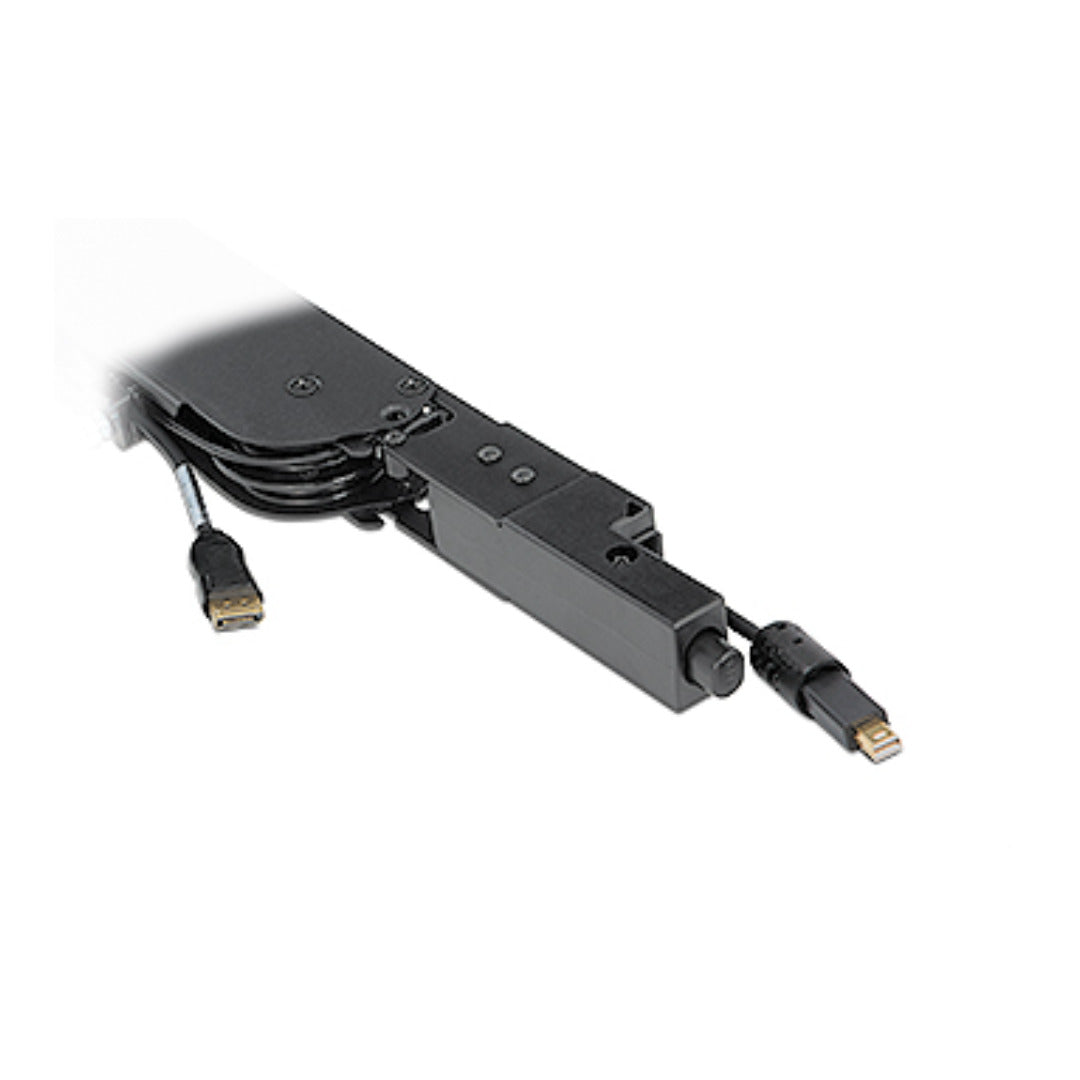

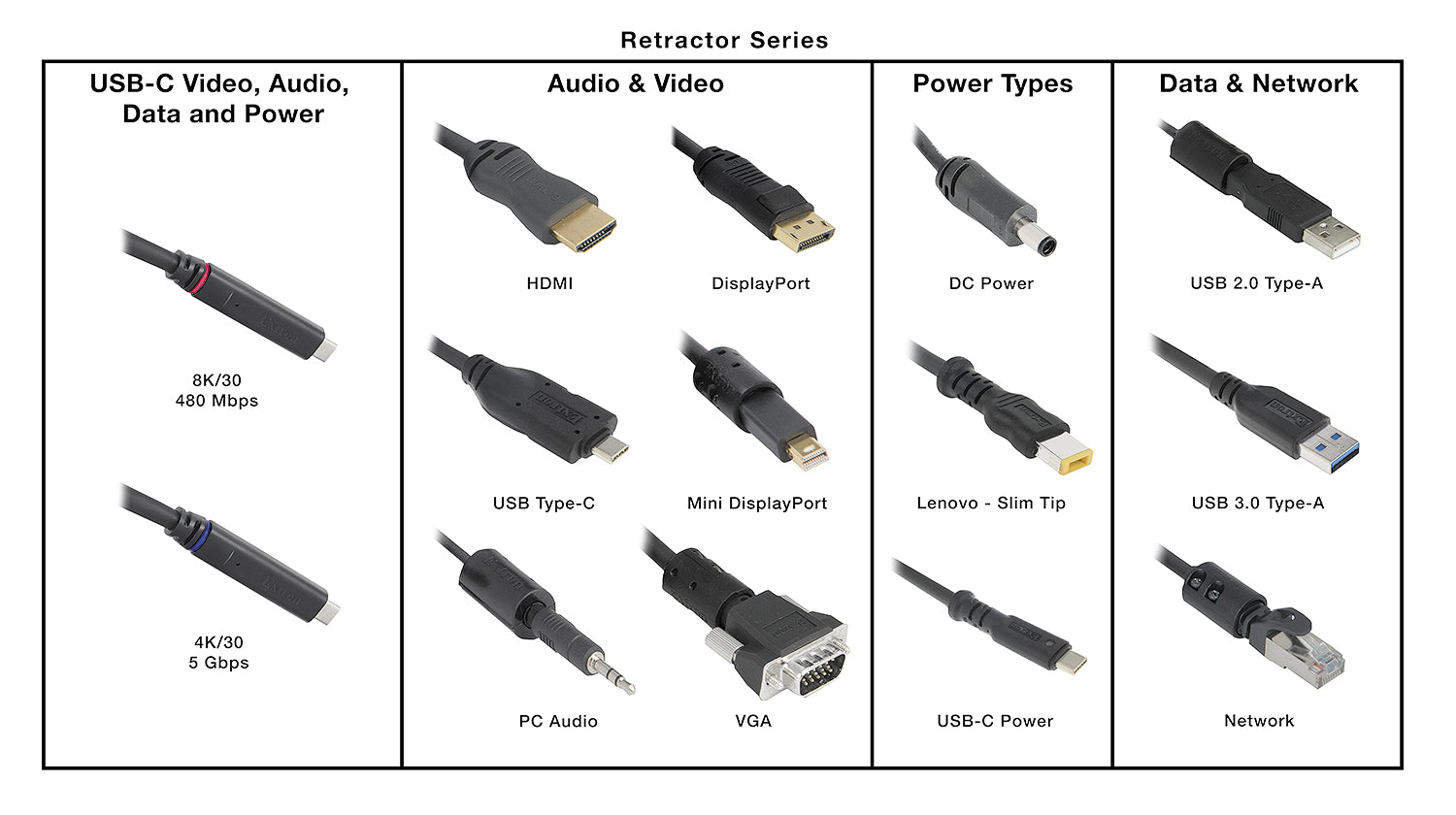

• Connector type: 1 male Mini DisplayPort to 1 male latching DisplayPort

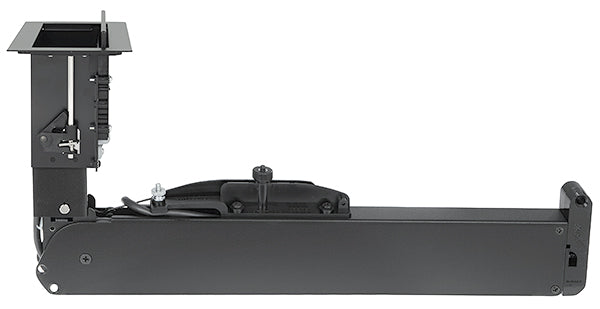

• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg); tested to exceed 7,500 cycles

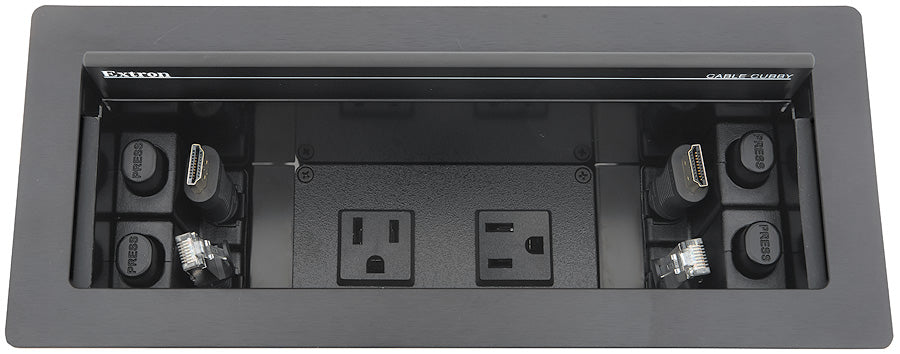

• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLMiniDisplayPortDisplayPort, Retractor-XL-Mini-DisplayPort-DisplayPort, part number 70106618.
