Extron Retractor XL Lenovo DC Power Extension Module
- • Extron Retractor XL Lenovo DC power extension
- • Lenovo Slim-tip DC, 5 ft (152 cm) of travel

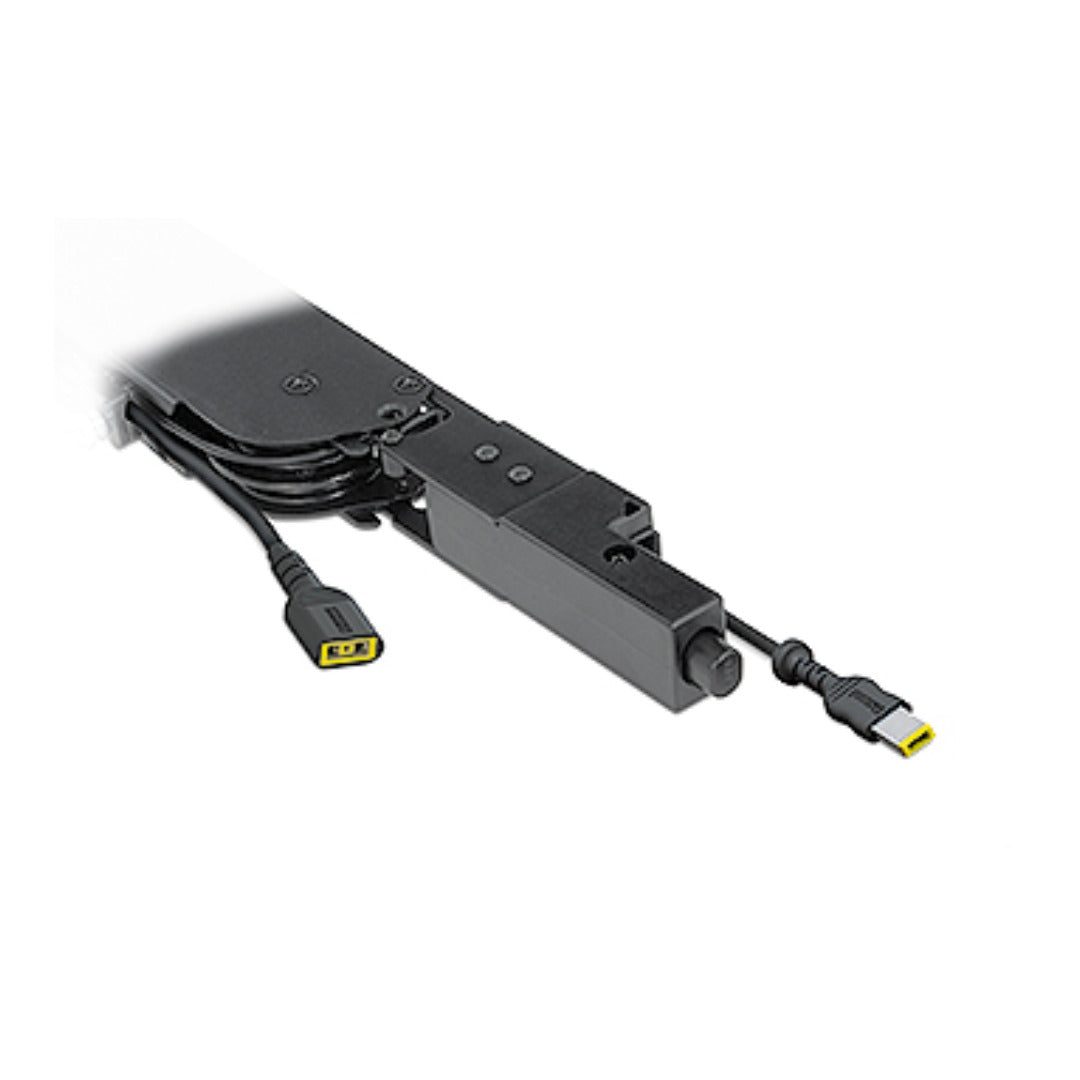

- • Male Slim-tip on top, female Slim-tip below
- • Sales, replacement and exchange
- • Part# 70-1066-09 / 70106609
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron Retractor XL Lenovo DC (part number 70-1066-09) - the five foot version of Extron's Lenovo Slim-tip DC power retractor. This part number is retired.
Charging positions on big tables are a reach problem before they are a power problem. The XL housing stores enough cable for a 5 foot (152 cm) pull, so the Slim-tip connector arrives where the laptop actually is. The under-surface end is a female Slim-tip receptacle: the integrator mounts the laptop maker's own supply out of sight and plugs it in there. Extron publishes a Cable Retraction System DC Power Compatibility Guide that should be checked before a DC module is specified.
Key Capabilities
- Extends a Lenovo Slim-tip DC power cable up to 5 feet (152 cm) from the enclosure.
- Male DC Slim-tip at the surface, female DC Slim-tip beneath for the OEM adapter.

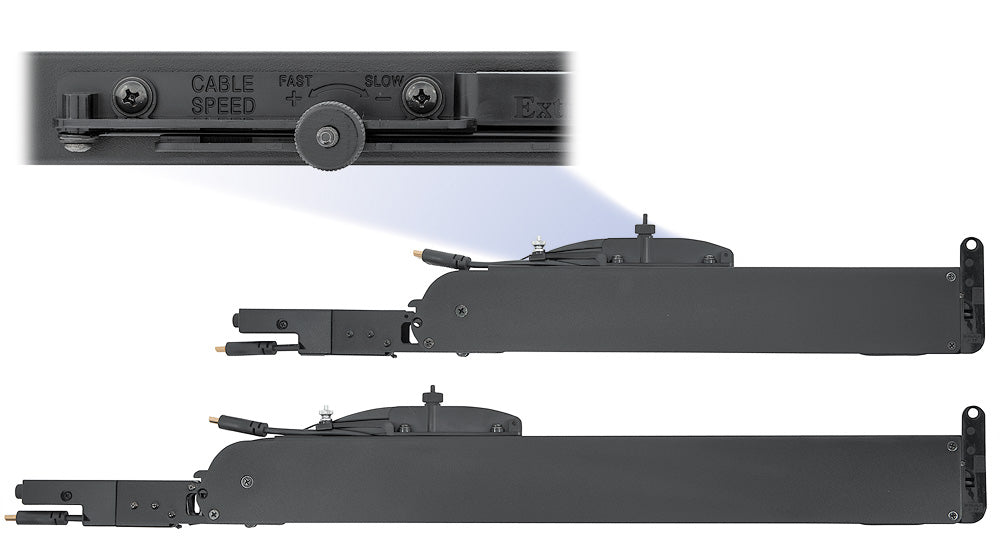

- Return speed adjustable across more than 50 steps between 1.5 and 4.0 seconds.
- 4 foot (1.2 m) pigtail under the table to reach the mounted power supply.
- Tested to exceed 7,500 extension and retraction cycles.
- Three-year parts and labor warranty covering the preinstalled cable.
Where It Is Used
Large conference and council tables standardised on Lenovo laptops, university study areas, training suites and clinical review desks. Because the part is retired it is most often ordered to match an existing Retractor Series XL enclosure.
Specifications at a Glance
- Connector type: 1 male DC Slim-tip to 1 female DC Slim-tip
- Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
- Product weight: 3.5 lbs (1.6 kg)
- Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
- Regulatory compliance: RoHS, WEEE
Use only the power supply recommended by the laptop manufacturer with any DC retraction module.
Frequently asked questions about the Extron Retractor XL Lenovo DC Power Extension
Does Ampronix sell the Extron Retractor XL Lenovo DC Power Extension?
Yes. Ampronix is an authorized Extron distributor and sells the Extron Retractor XL Lenovo DC Power Extension (70-1066-09). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron Retractor XL Lenovo DC Power Extension?
Yes. Ampronix provides sales, replacement and exchange for the Extron Retractor XL Lenovo DC Power Extension. Call Ampronix for a quote.
Is the Extron Retractor XL Lenovo DC Power Extension listed under other names?
Yes. The Extron Retractor XL Lenovo DC Power Extension is also referenced as Extron RetractorXLLenovoDC, Retractor-XL-Lenovo-DC, part number 70106609.
What are the key features of the Extron Retractor XL Lenovo DC Power Extension?
Key points: Extends a Lenovo Slim-tip DC power cable up to 5 feet (152 cm) from the enclosure; Male DC Slim-tip at the surface, female DC Slim-tip beneath for the OEM adapter; Return speed adjustable across more than 50 steps between 1.5 and 4.0 seconds; 4 foot (1.2 m) pigtail under the table to reach the mounted power supply. Call Ampronix to confirm details for your application.
Also referenced as Extron RetractorXLLenovoDC, Retractor-XL-Lenovo-DC, part number 70106609.
