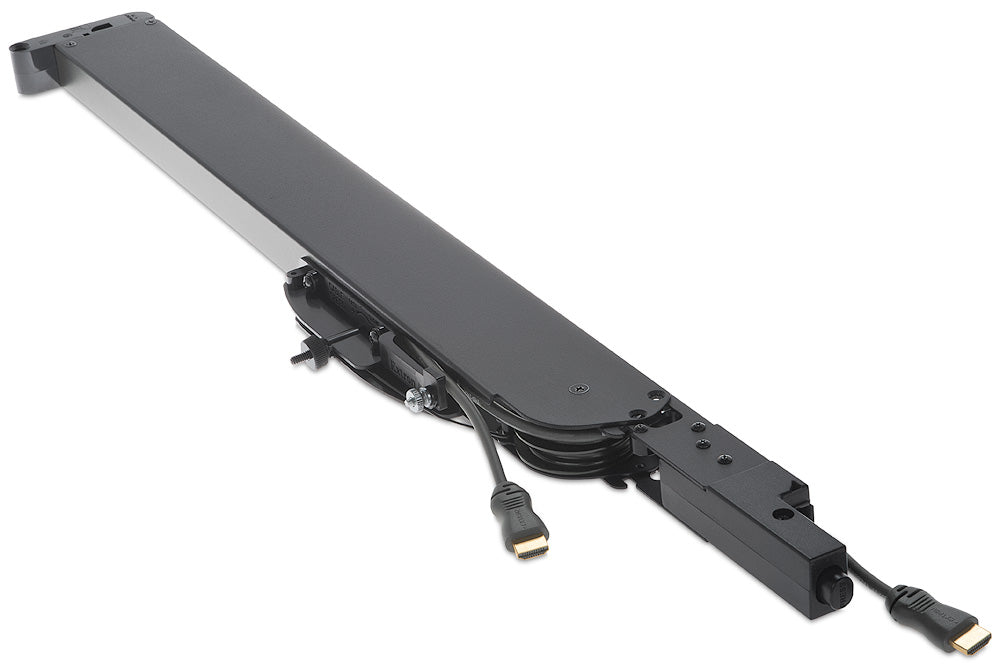

Extron Retractor XL HDMI (part number 70-1066-04) — the extended-travel version of Extron's HDMI retraction module, giving five feet of reach instead of three.

Large conference tables, tiered classrooms and lectern-to-table runs often place the user farther from the enclosure than a standard retractor can serve. This XL module carries one continuous HDMI cable on a taller spool assembly so the connector can travel up to 5 feet (152 cm) above the surface. Pull out what the seat requires, let go, and the cable stays put; press the release and it winds back at a speed the integrator has already dialled in.

Key Capabilities

• Extends a continuous HDMI cable to 5 feet (152 cm) and locks anywhere within that range.
• Supports HDMI 1.4 and DisplayPort 1.1a signalling at a maximum video data rate of 10.2 Gbps, or 3.4 Gbps per color.
• Frame rates of 24, 25, 30, 50 and 60 fps with 4:4:4, 4:2:2 or 4:2:0 chroma sampling at 8 bits per color.

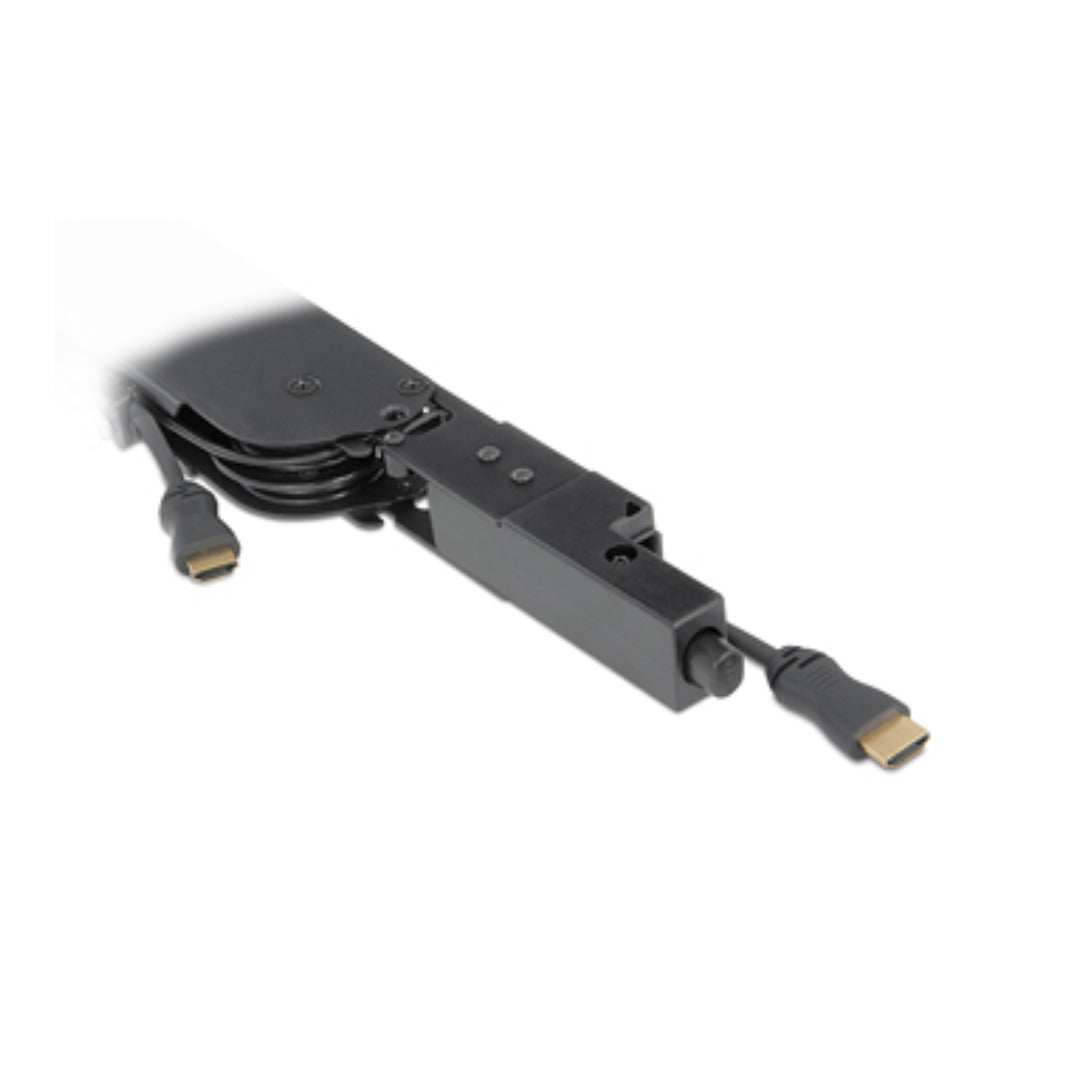

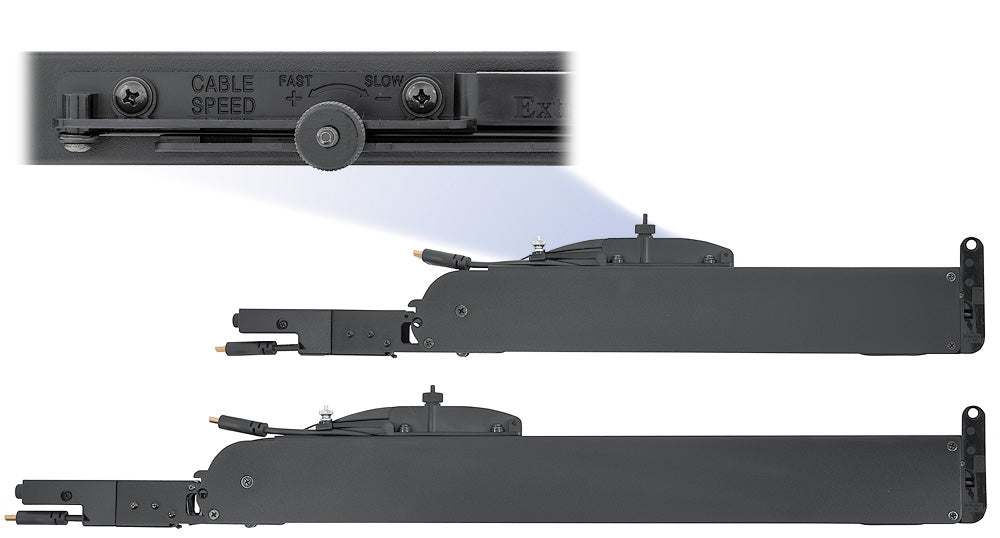

• Variable-speed return with more than 50 adjustment steps covering 1.5 to 4.0 seconds.
• Includes a 4 foot (1.2 m) under-surface pigtail for connection to switchers, extenders or floor boxes.
• Tested past 7,500 extension and retraction cycles; three-year parts and labor warranty covers the preinstalled cable.

Where It Is Used

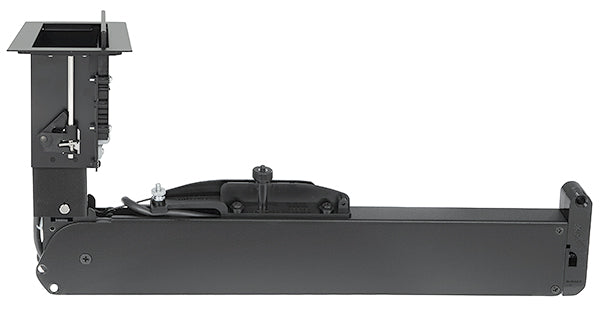

Board tables with deep working surfaces, divisible training rooms, courtroom and council chamber positions, and control or reading rooms where the display connection has to reach across the desk and then disappear. Vertical mounting needs roughly 30 inches (76.2 cm) of clearance below the furniture; horizontal and angular orientations are also supported.

Specifications at a Glance

• Connector type: 1 male HDMI type A to 1 male HDMI type A
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg)

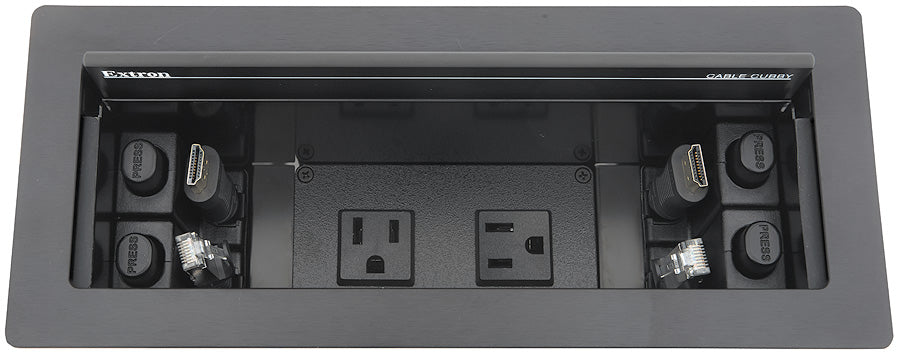

• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLHDMI, Retractor-XL-HDMI, part number 70106604.
