Extron Retractor XL DisplayPort-HDMI (part number 70-1066-43) — a 4K-rated DisplayPort to HDMI retractor with five feet of travel.

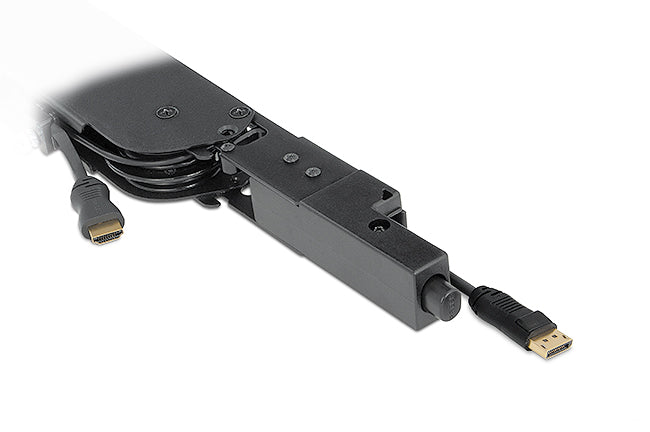

Workstations and graphics cards output DisplayPort; the room's displays and switchers are usually HDMI. Rather than leave that mismatch to a dongle, this module builds the conversion into a single continuous cable. A male latching DisplayPort sits at the tabletop end and a male HDMI type A lands on the equipment side. This is the current 4K version; Extron has retired the earlier Retractor Series/2 XL DP-HDMI, part 70-1066-08.

Key Capabilities

• DisplayPort source to HDMI destination on a run extending up to 5 feet (152 cm).
• Maximum video data rate of 10.2 Gbps, or 3.4 Gbps per color.
• Signal handling for HDMI 1.4 and DisplayPort 1.1a.
• Frame rates of 24 through 60 fps at 4:4:4, 4:2:2 or 4:2:0 chroma, 8 bits per color.
• Latching DisplayPort connector reduces the chance of an accidental disconnect.

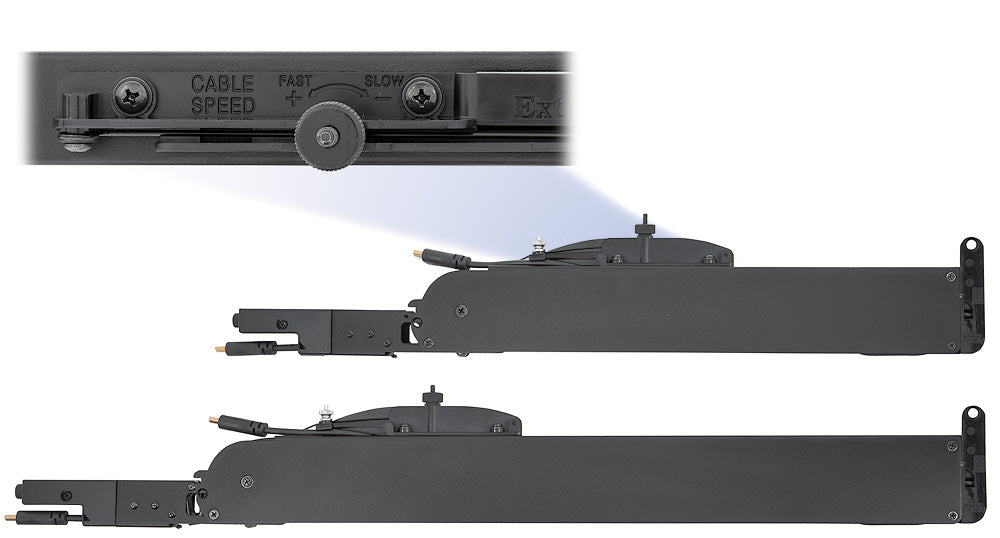

• Speed control across more than 50 steps from 1.5 to 4.0 seconds.

Where It Is Used

Engineering and CAD benches, control room operator desks, broadcast and post-production suites, and large conference tables where DisplayPort workstations have to reach HDMI displays. The XL travel suits wide surfaces and tiered seating.

Specifications at a Glance

• Connector type: 1 male latching DisplayPort to 1 male HDMI type A
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg); tested to exceed 7,500 cycles
• 4 foot (1.2 m) pigtail beneath the surface
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorXLDisplayPortHDMI, Retractor-XL-DisplayPort-HDMI, part number 70106643.
