Extron Retractor XL DC (part number 70-1066-10) — a five foot retractable DC power extension for Dell, HP and other notebook supplies. Extron has retired this part number.

The module keeps a laptop power connection permanently anchored in the furniture instead of trailing a brick and a barrel plug across the floor. A female DC power connector sits under the surface for the manufacturer's own adapter; the user pulls a male DC power connector out of the enclosure and lets the mechanism hold it. Extron ships Dell, HP and blank printable labels with the DC modules so the topside connector can be marked for the hardware it serves.

Key Capabilities

• DC power cable extends up to 5 feet (152 cm) from the enclosure face.

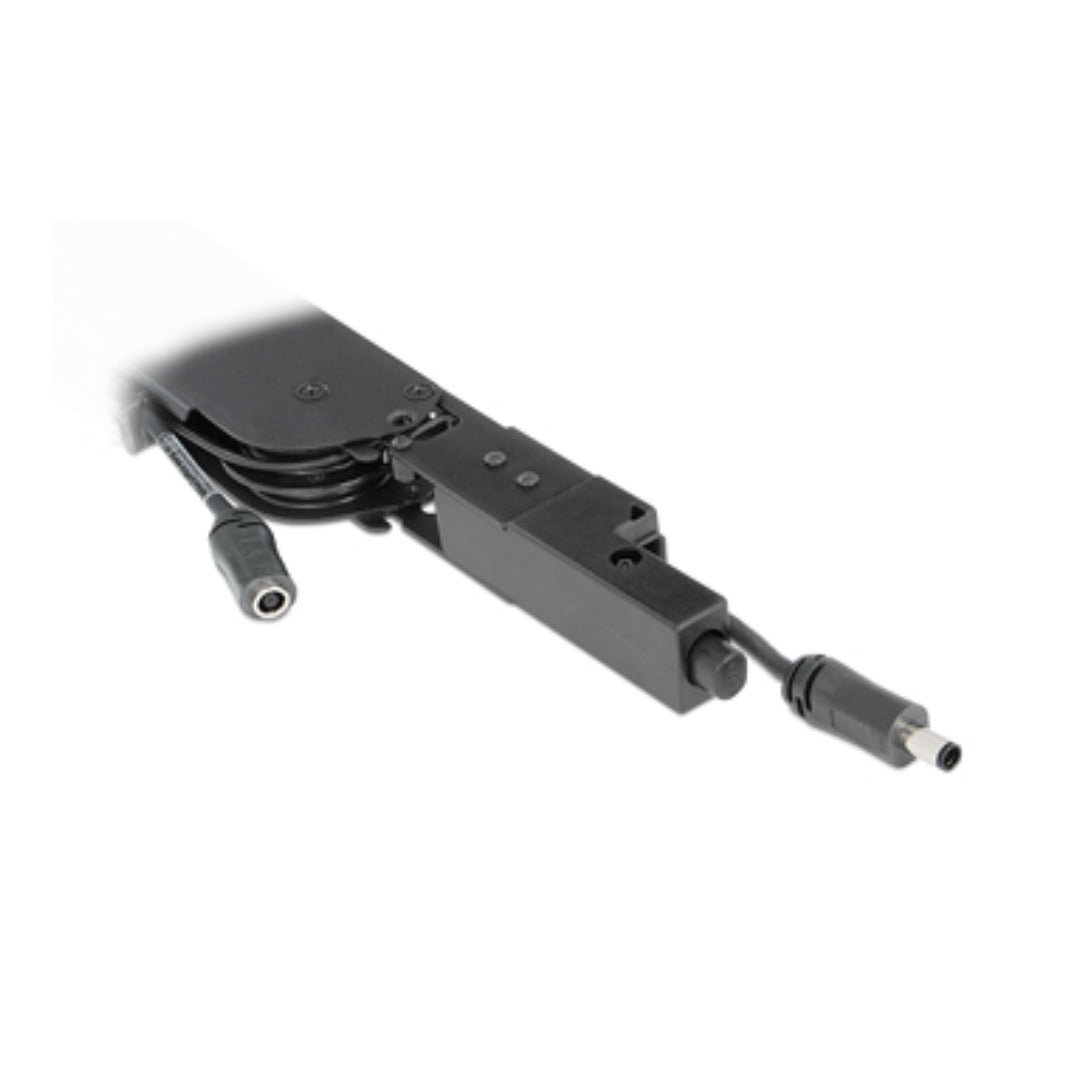

• Male DC power connector at the surface, female DC power connector beneath.
• Dell, HP and blank printable connector labels are included with the module.

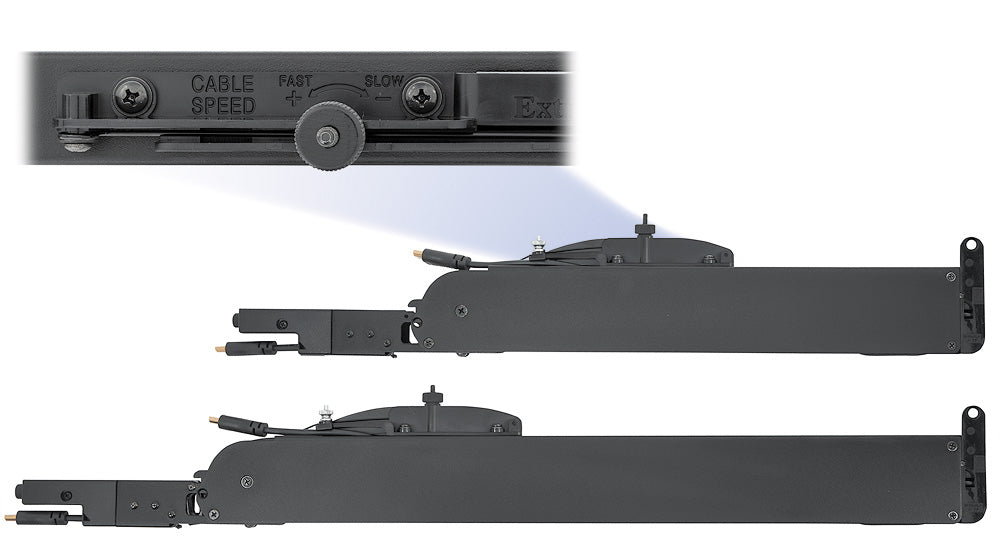

• Retraction speed set across more than 50 steps between 1.5 and 4.0 seconds.
• Tested to exceed 7,500 extension and retraction cycles.
• Three-year parts and labor warranty covering the preinstalled cable assembly.

Where It Is Used

Large conference tables, training rooms, library carrels and clinical workstations built around Dell or HP notebook fleets. Since the part is retired it is normally purchased as a matching replacement for an existing Retractor Series XL bay.

Specifications at a Glance

• Connector type: 1 male DC power connector to 1 female DC power connector
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg)
• 4 foot (1.2 m) pigtail below the surface for the mounted power supply
• Regulatory compliance: RoHS, WEEE

Consult Extron's Cable Retraction System DC Power Compatibility Guide and use only the supply recommended by the laptop manufacturer.

Also referenced as Extron RetractorXLDC, Retractor-XL-DC, part number 70106610.
