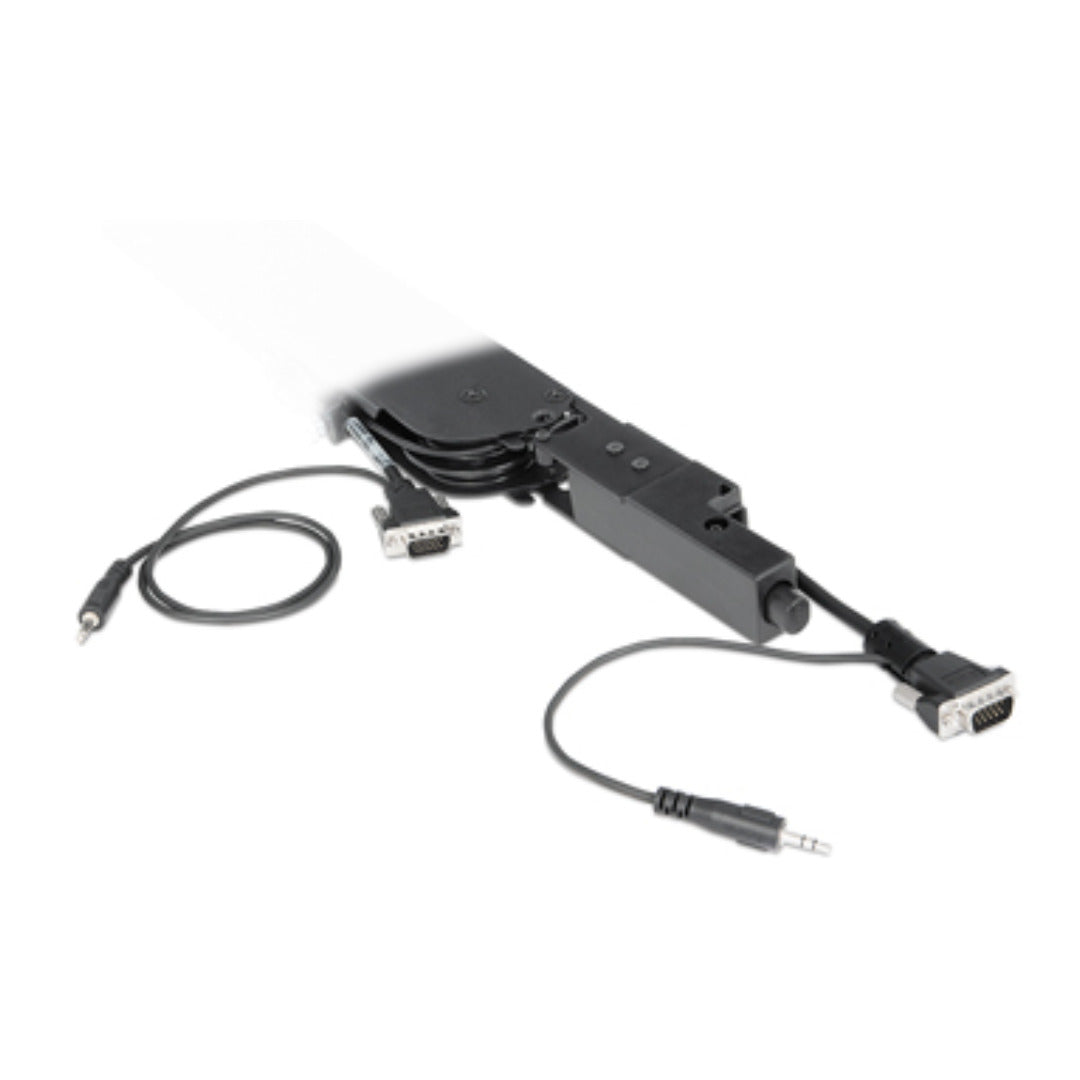

Extron Retractor VGA-A (part number 70-1065-11) — a single retractable module that carries analog video and stereo audio together on one pull.

Presentation sources that output VGA almost always need an audio path as well, and running two separate retractors for one laptop wastes an enclosure bay. This module bundles both: the tabletop end is a male 15-pin HD connector with an 8 inch male 3.5 mm stereo audio pigtail attached, so the presenter makes two connections from one cable. Under the surface the same assembly terminates in a male 15-pin HD with a 24 inch 3.5 mm audio pigtail for the switcher or DSP input.

Key Capabilities

• Video and stereo audio on one retractable run that extends up to 3 feet (90 cm).
• Tabletop end: male 15-pin HD with an 8 inch male 3.5 mm stereo audio pigtail.
• Equipment end: male 15-pin HD with a 24 inch male 3.5 mm stereo audio pigtail.
• Retraction speed set across more than 50 steps between 1.5 and 4.0 seconds.
• Cable stays locked at whatever length the user releases it.
• Tested to exceed 7,500 cycles and warranted three years parts and labor including the cable.

Where It Is Used

Classroom teaching stations, training rooms and lecture halls where laptops and document cameras still present over VGA and the room audio system takes a line-level feed. Also common on courtroom evidence tables and older boardrooms undergoing a staged refresh, where one bay has to serve both signal types.

Specifications at a Glance

• Cable: VGA with 3.5 mm stereo audio, 3 feet (90 cm) of travel
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorVGAA, Retractor-VGA-A, part number 70106511.
