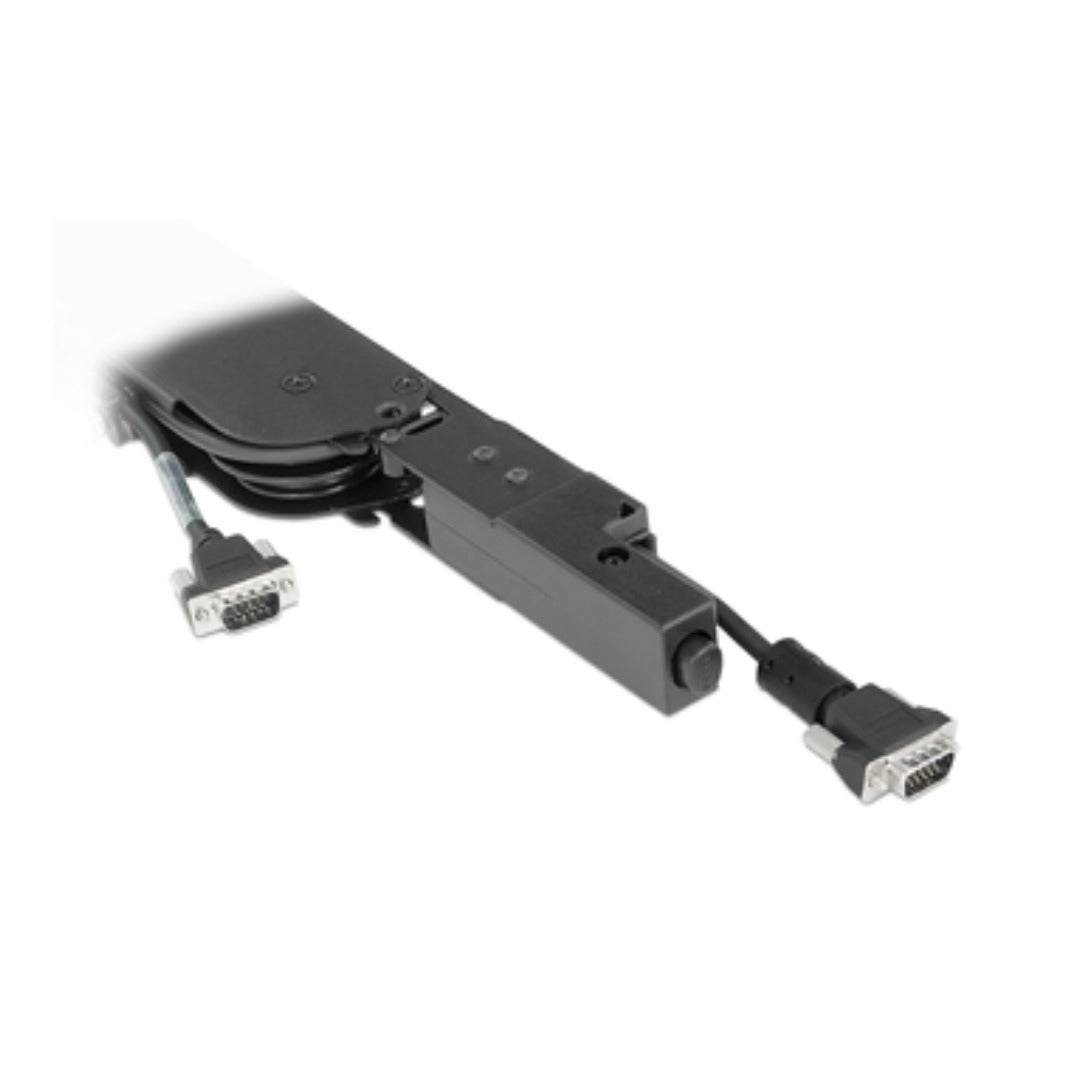

Extron Retractor VGA (part number 70-1065-01) — a retractable 15-pin HD analog video drop that stores inside a Cable Cubby enclosure.

Rooms with legacy laptops, document cameras, lab instruments and older presentation PCs still need a proper VGA connection at the table. This module keeps one continuous analog cable coiled inside the furniture and presents only the connector. Users pull it to whatever length the seat requires and the mechanism locks it; a press of the release button rewinds it at a rate the integrator has already set, so the cable never whips across the table surface.

Key Capabilities

• Analog video cable extends up to 3 feet (90 cm) above the enclosure and holds at any point.
• Male 15-pin HD connectors on both ends of a single continuous run — no couplers in the signal path.
• Retraction speed adjusts through more than 50 steps between 1.5 and 4.0 seconds.
• Independent extension and retraction mechanisms limit stress on the cable over years of use.
• Tested to exceed 7,500 cycles and covered by a three-year parts and labor warranty including the cable.
• 6 foot (1.8 m) pigtail below the surface reaches a switcher, scaler or wallplate input.

Where It Is Used

Teaching stations and lecture halls that still support VGA sources, laboratory and clinical benches with instrument outputs, courtroom evidence positions, and legacy boardrooms being refreshed one component at a time. It installs vertically as delivered, or horizontally and at a 30-degree angle with the optional bracket.

Specifications at a Glance

• Connector type: 1 male 15-pin HD to 1 male 15-pin HD
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg)

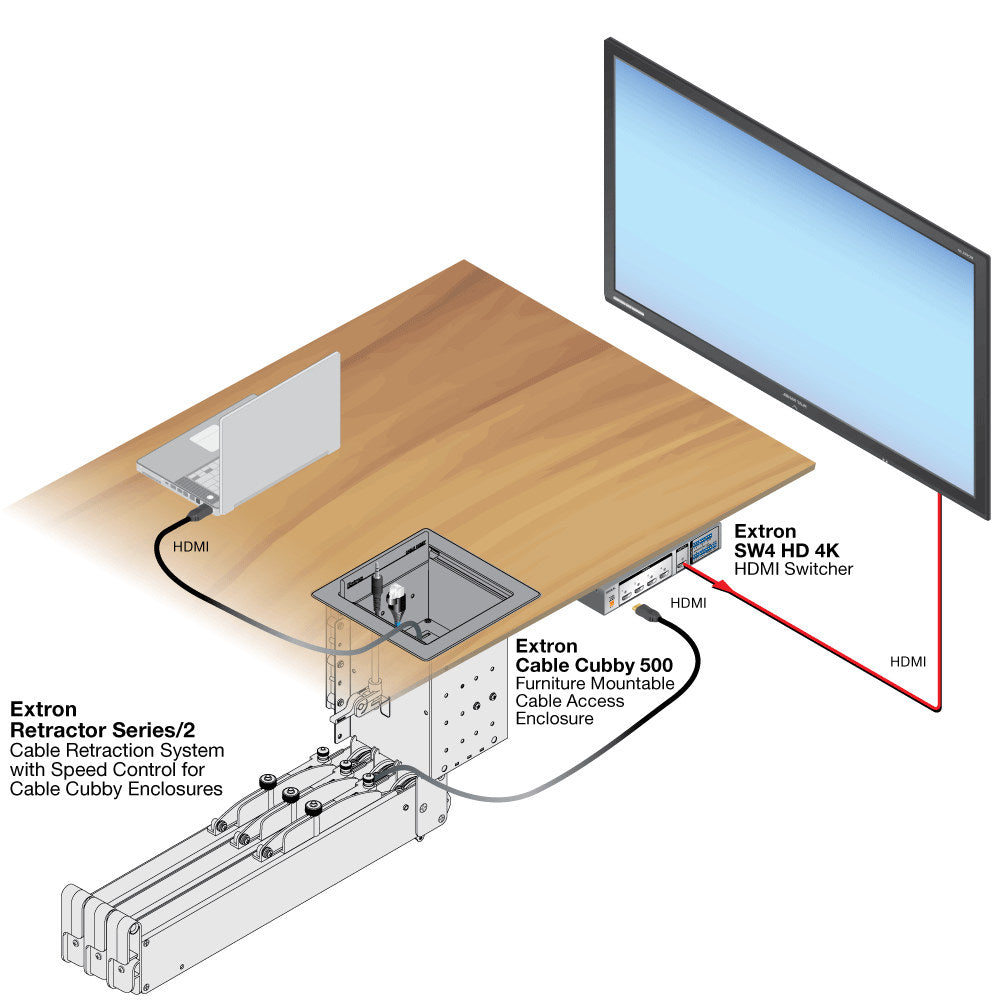

• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorVGA, Retractor-VGA, part number 70106501.
