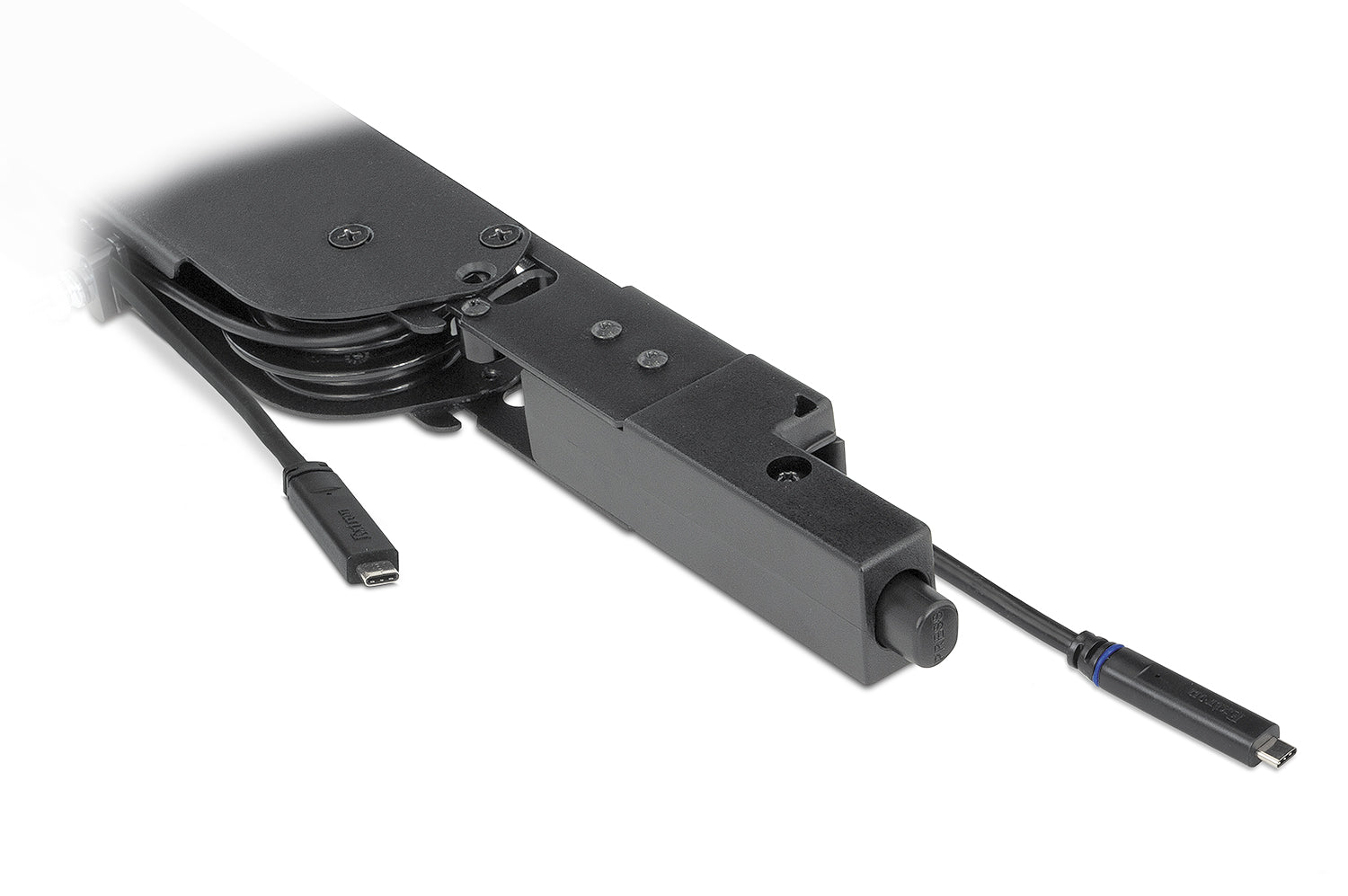

Extron Retractor USB-C Pro (part number 70-1065-55) — one retractable USB-C cable that carries 4K video, SuperSpeed data and 60 watts of charging to a laptop.

Modern notebooks increasingly present over a single USB-C port, and this module is built for exactly that workflow. It is the blue ring member of the USB-C Retractor family: a male-to-male USB-C assembly that passes DisplayPort Alternate Mode video, USB 3.2 Gen 1 data and device power at the same time. Because the assembly lives inside the enclosure, the connector is always in the same place and never gets borrowed.

Key Capabilities

• Handles resolutions to 4096x2160 at 30 Hz with 4:4:4 chroma sampling at 8 bits per color.
• DisplayPort Alt Mode using DP 1.4 across 2 lanes at up to HBR3, 8.1 Gbps per lane, for a maximum video data rate of 16.2 Gbps.
• Signal support up to DisplayPort 1.4 with HDCP 2.3 handling.
• USB 3.2 Gen 1 data at up to 5 Gbps, backward compatible with USB 2.0 and USB 1.1; no built-in hub.
• Supplies up to 60 W of power at a maximum of 3 A to the connected device.
• Cable extends up to 3 feet (90 cm), with more than 50 retraction speed steps from 1.5 to 4.0 seconds.

Where It Is Used

Hybrid conference rooms where a guest laptop drives the display and charges from the same cable, university active-learning tables, design and editing suites, and clinical review desks. Extron supplies connector labels for USB-C video modules so users can tell an AV-capable cable from a charge-only one at a glance.

Specifications at a Glance

• Connector type: 1 USB-C male to 1 USB-C male
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg); tested to exceed 7,500 cycles
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorUSBCPro, Retractor-USB-C-Pro, part number 70106555.
