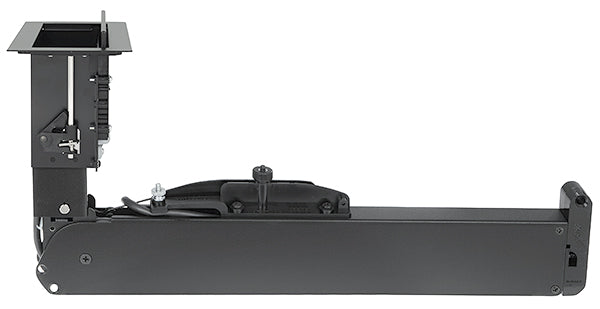

Extron Retractor USB-C Power (part number 70-1065-50) — a retractable USB-C charging drop rated for 100 watts, built for laptops and mobile devices at the table.

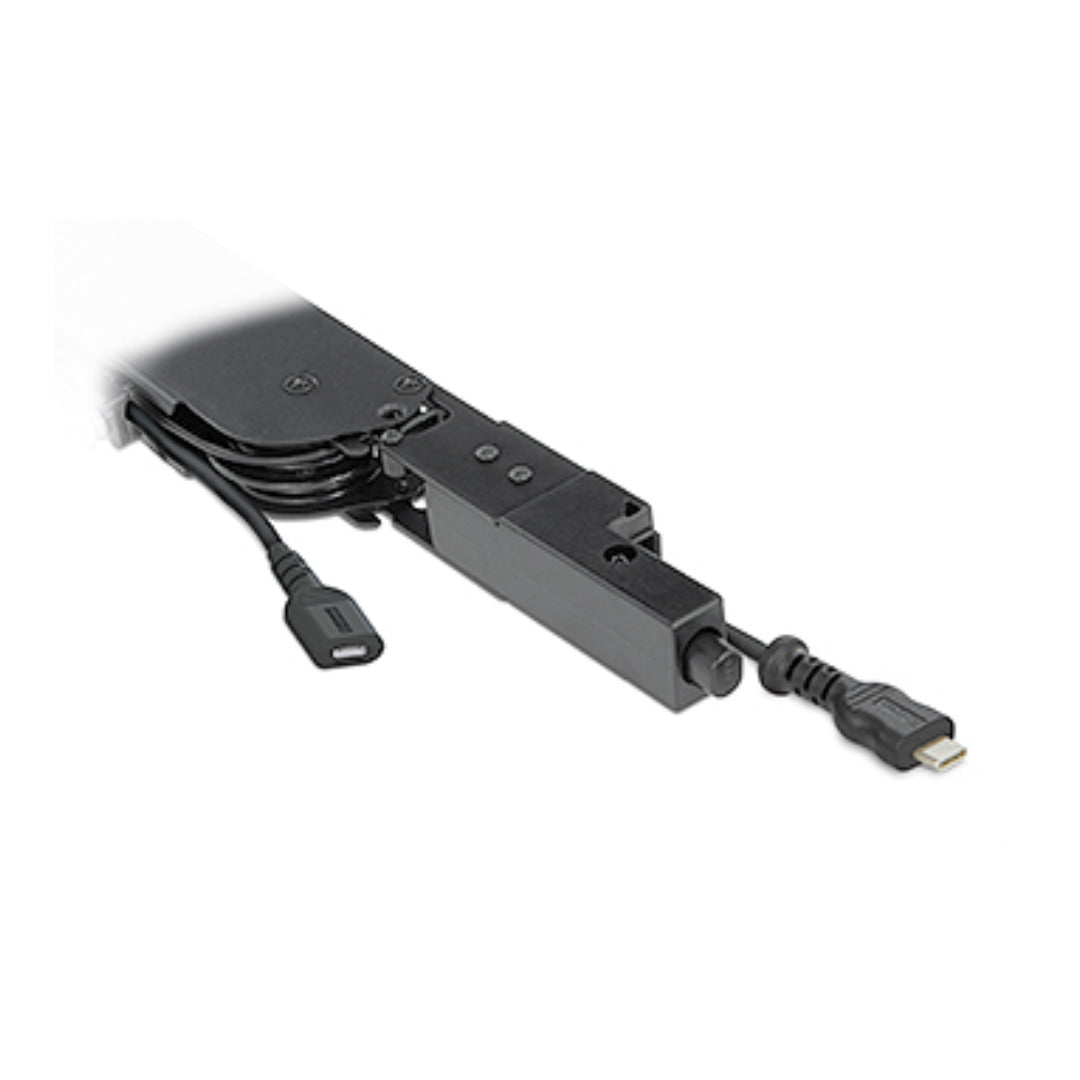

This module is a power path, not a video path. Extron builds it with a male USB-C connector on the tabletop end and a female USB-C receptacle underneath, so the installer plugs the customer's own supply into the module and the user simply grabs a USB-C plug. The cable is rated at 100 watts, or 5 A, which covers most modern notebooks as well as tablets and phones. It stores on the same variable-speed mechanism used across the Retractor Series.

Key Capabilities

• Power capacity of 100 watts (5 A) across the retractable USB-C assembly.
• Cable extends up to 3 feet (90 cm) and holds at any point the user chooses.
• Terminations are 1 male USB-C to 1 female USB-C — the female end accepts the device power supply.
• Rated for USB power only; use a separate Retractor module if video or data is also required.
• More than 50 retraction speed steps span 1.5 to 4.0 seconds.
• Tested past 7,500 cycles with a three-year parts and labor warranty covering the cable.

Where It Is Used

Conference and huddle tables where guests arrive with depleted laptops, library and study carrels, airport and lounge charging positions, classroom student benches, and clinical workstations. Because the module takes power from a supply the integrator selects, it adapts to whatever device population the room actually serves.

Specifications at a Glance

• Standard: USB power only
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg)

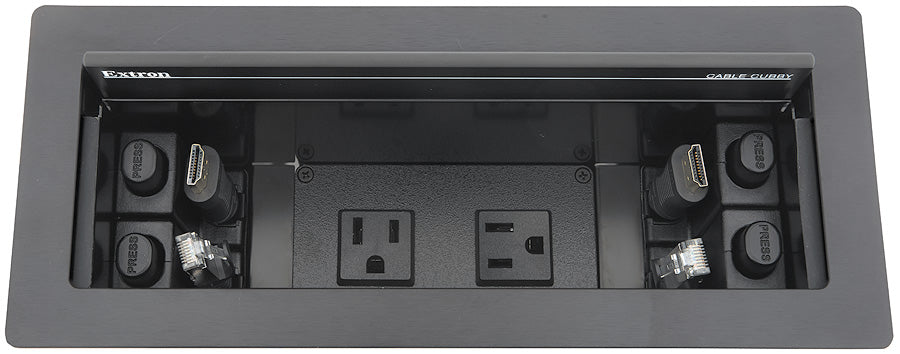

• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorUSBCPower, Retractor-USB-C-Power, part number 70106550.
