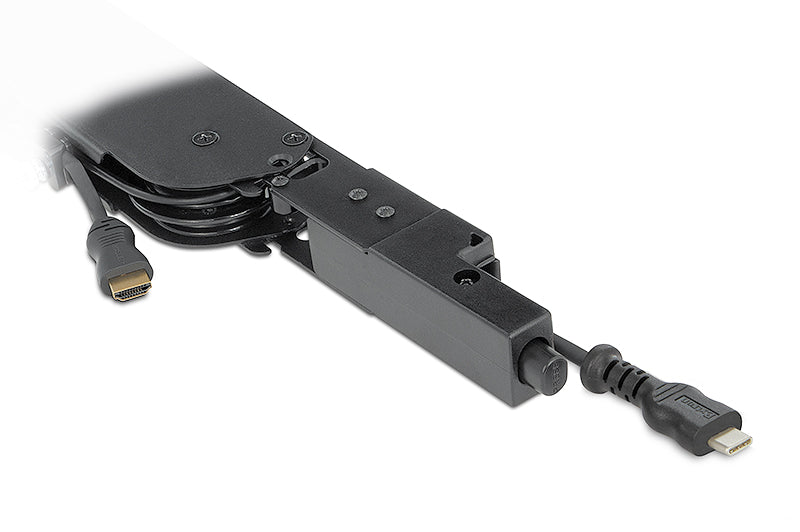

Extron Retractor USB-C - HDMI (part number 70-1065-51) - a retractable adapter cable that lets a USB-C laptop drive an HDMI display directly from the table.

Rooms are full of HDMI displays and full of laptops that no longer have an HDMI port. Rather than leave a dongle at every seat to be lost, this module builds the conversion into the cable itself: a male USB-C connector on the tabletop end and a male HDMI type A on the equipment end, stored on the Retractor Series variable-speed mechanism. The source must support DisplayPort Alternate Mode. Extron supplies connector labels so users can tell an AV-capable USB-C cable from a charge-only one.

Key Capabilities

• Converts DP Alt Mode USB-C to HDMI on one continuous 3 foot (90 cm) retractable run.
• Maximum video data rate of 10.2 Gbps, or 3.4 Gbps per color.
• Signal handling for HDMI 1.4 and DisplayPort 1.1a.
• Frame rates of 24, 25, 30, 50 and 60 fps with 4:4:4, 4:2:2 or 4:2:0 chroma at 8 bits per color.
• Retraction speed adjustable across more than 50 steps between 1.5 and 4.0 seconds.
• Tested to exceed 7,500 cycles with a three-year parts and labor warranty on the cable.

Where It Is Used

Huddle and conference tables serving mixed laptop fleets, university active-learning rooms, training suites and clinical conference spaces where the display infrastructure is HDMI and the sources are not. It removes the dongle from the workflow entirely.

Specifications at a Glance

• Connector type: 1 male USB-C to 1 male HDMI type A
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE
