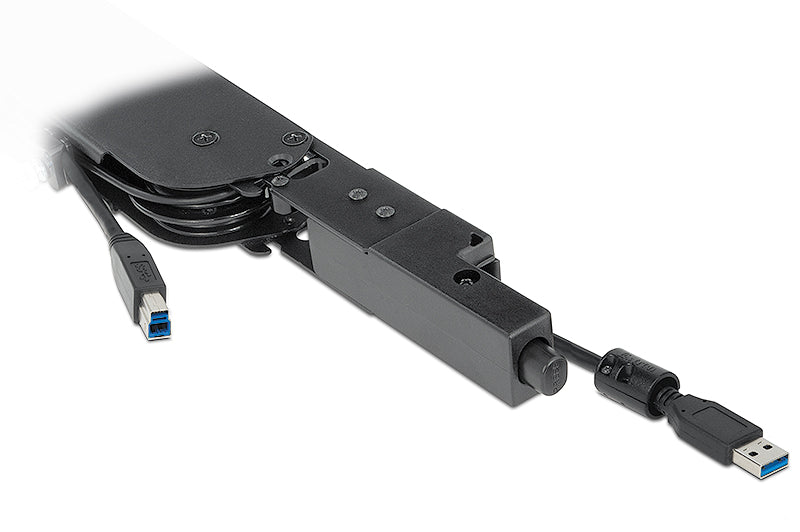

Extron Retractor USB 3.2 (part number 70-1065-06) — a retractable SuperSpeed USB Type-A to Type-B cable for devices that need real bandwidth at the table.

Type-B is the peripheral side of the USB world: interactive displays, audio interfaces, document cameras, scanners and USB hubs. Running one of those at USB 2.0 speeds throttles a 4K camera or a multichannel audio device. This module carries a USB 3.2 Gen 1 assembly rated for SuperSpeed transfer, stored on the same variable-speed retraction mechanism used across the Retractor Series, so the connector is available on demand and out of sight the rest of the time.

Key Capabilities

• Cable extends up to 3 feet (90 cm) from the enclosure and holds at any point.
• Built to the USB 3.2 Gen 1 standard with SuperSpeed throughput of 5 Gbps.
• Male USB 3.2 Gen 1 Type A to male Type B on one continuous run.
• Retraction speed adjustable across more than 50 steps between 1.5 and 4.0 seconds.
• 4 foot (1.2 m) pigtail below the surface — the same length used on Retractor Series XL modules.
• Tested to exceed 7,500 cycles and covered three years parts and labor including the cable.

Where It Is Used

Hybrid meeting rooms feeding a USB camera or DSP interface, interactive classroom displays that need a touch return path, media production and editing desks, radiology and pathology review stations, and any lectern hosting a scanner or document camera that would otherwise sit on a loose cable.

Specifications at a Glance

• Standard: USB 3.2 Gen 1, SuperSpeed 5 Gbps
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorUSB32, Retractor-USB-3-2, part number 70106506.
