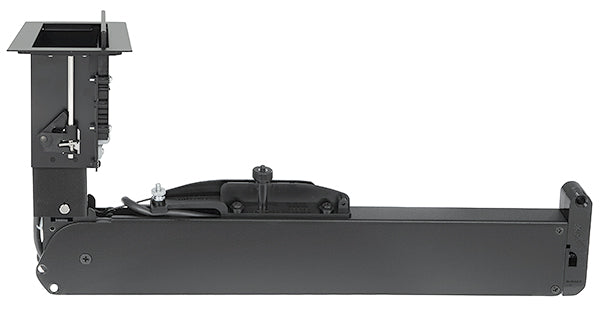

Extron Retractor USB 2.0 (part number 70-1065-05) — a retractable USB Type-A to Type-A drop that keeps peripheral connections tidy at the table.

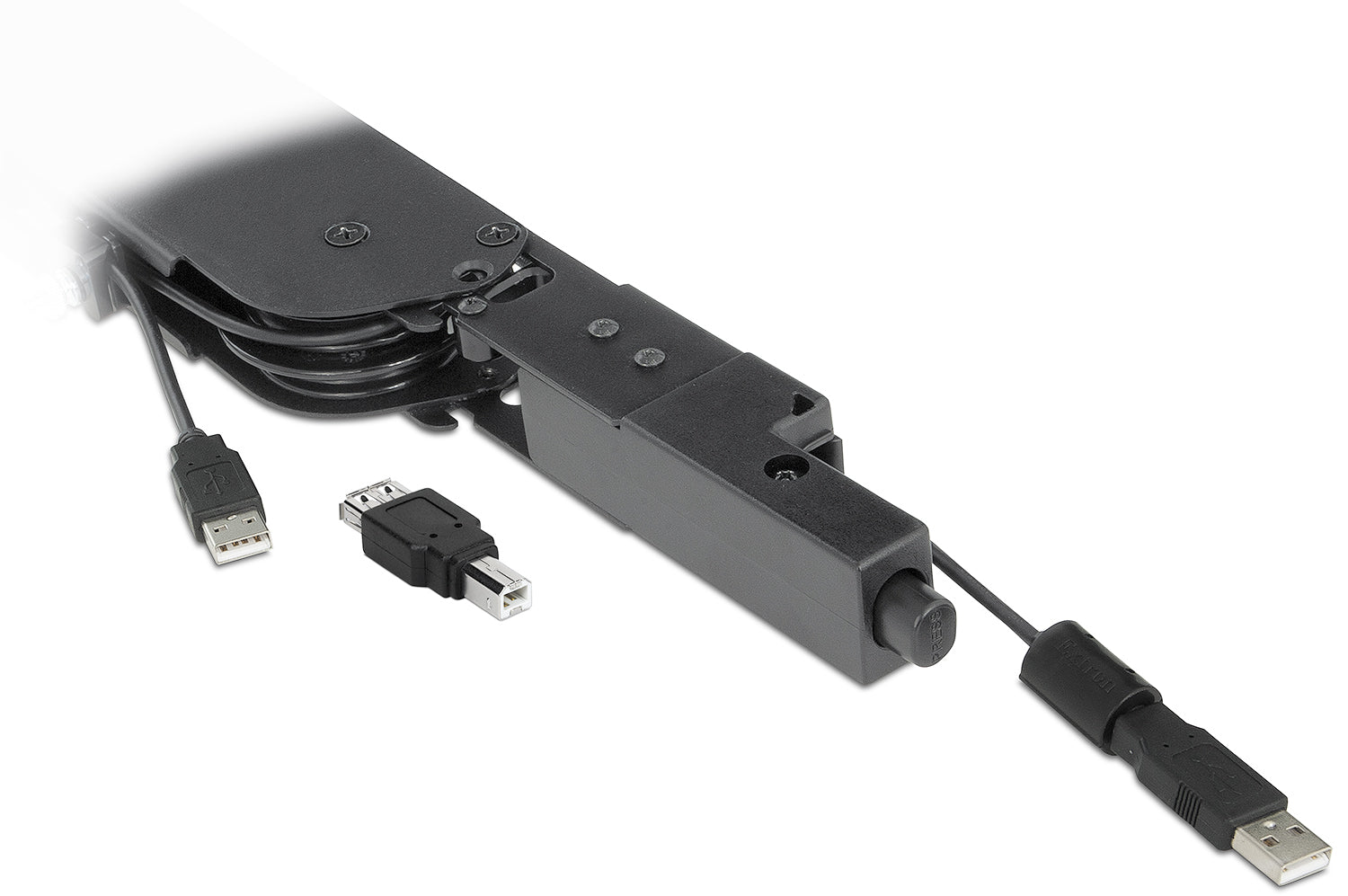

Room cameras, speakerphones, interactive displays and USB touch overlays all need a host connection that the presenter can reach without crawling under the furniture. This module stores one continuous USB 2.0 cable inside the enclosure and offers a single Type-A connector at the surface. Pull it, plug in, and it holds; press the release and the cable travels back at a speed the integrator set during commissioning rather than whipping across the tabletop.

Key Capabilities

• USB Type-A cable extends up to 3 feet (90 cm) and locks at any point in that range.
• Built to the USB 2.0 standard with high speed operation at 480 Mbps.
• Male USB 2.0 Type A to male Type A on one continuous run.
• Retraction speed adjusts through more than 50 steps between 1.5 and 4.0 seconds.
• Tested to exceed 7,500 extension and retraction cycles.
• 6 foot (1.8 m) pigtail below the surface reaches the room PC, codec or USB switcher.

Where It Is Used

Hybrid meeting rooms where a laptop has to become the host for a camera and microphone, active-learning classrooms with shared USB peripherals, medical and laboratory benches with instrument dongles, and touch-display carts. The module suits any table where a loose USB cable would otherwise be taped down and eventually replaced.

Specifications at a Glance

• Standard: USB 2.0, high speed 480 Mbps
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg)

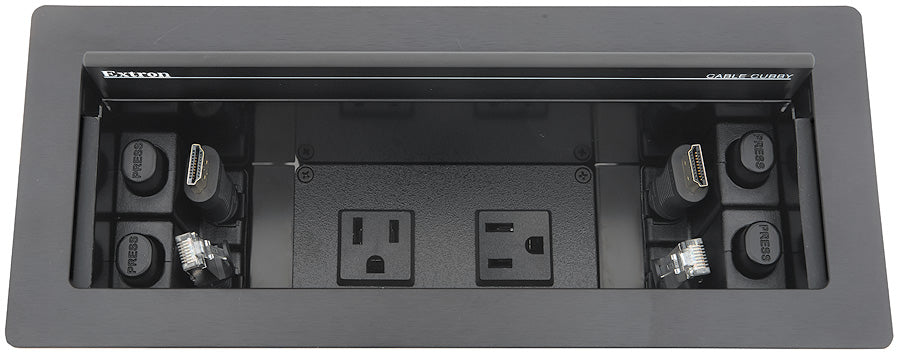

• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorUSB20, Retractor-USB-2-0, part number 70106505.
